Check at ABS-ECU

CHECK AT ABS-ECU
Use the following steps to remove the connector cover of the ABS-ECU and then measure the terminal voltage.

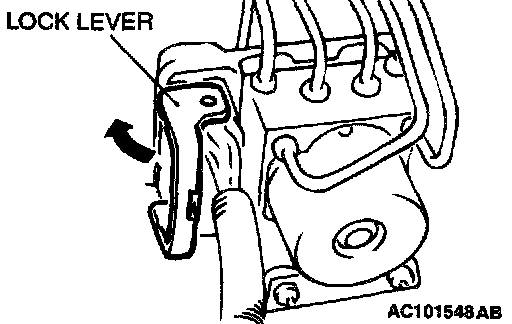

1. Move the lock lever of the ABS-ECU connector as shown in the illustration, and then disconnect the ABS-ECU as connector.

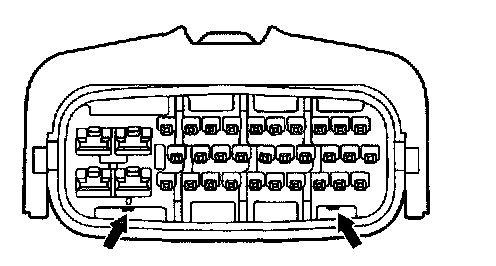

2. Push up and unlock the hooks of the ABS-ECU connector as shown in the illustration, then remove the connector cover.
