Pinout Values and Diagnostic Parameters

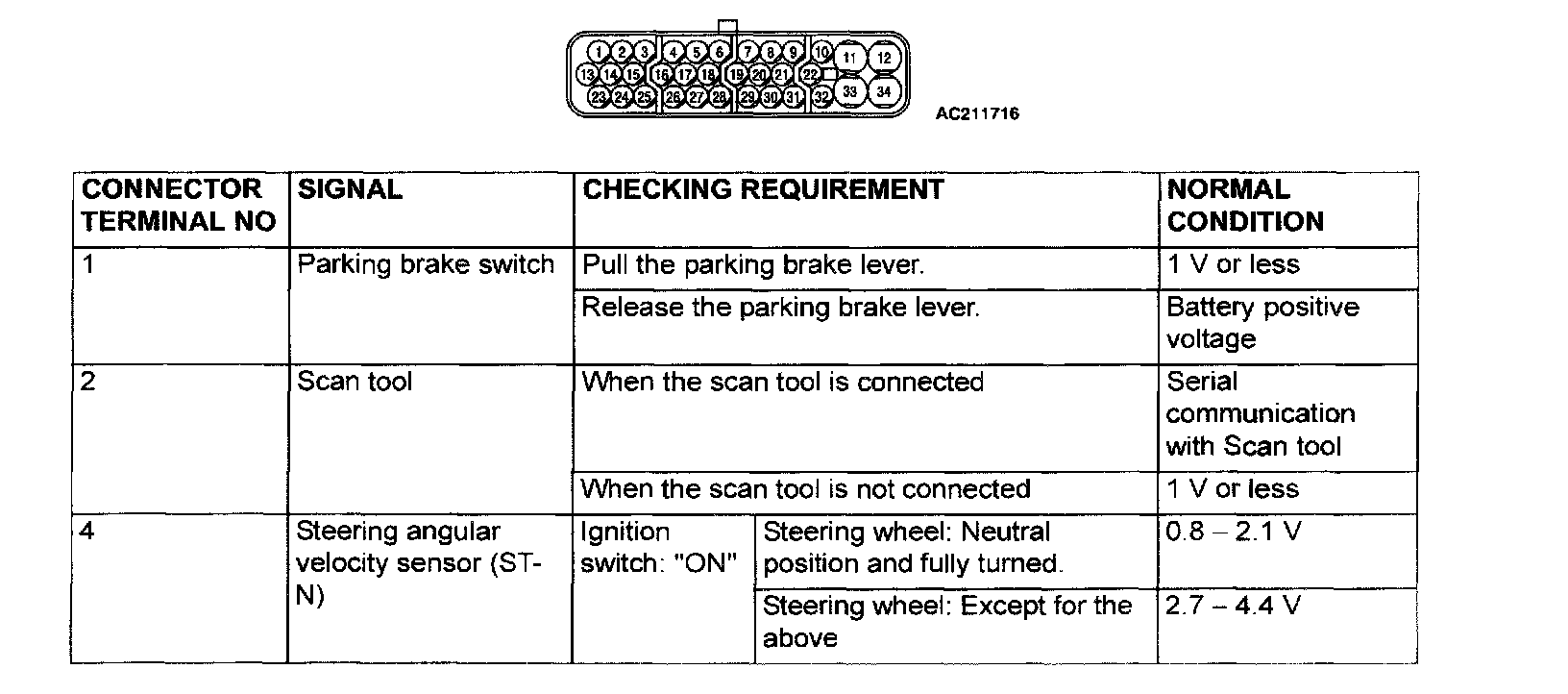

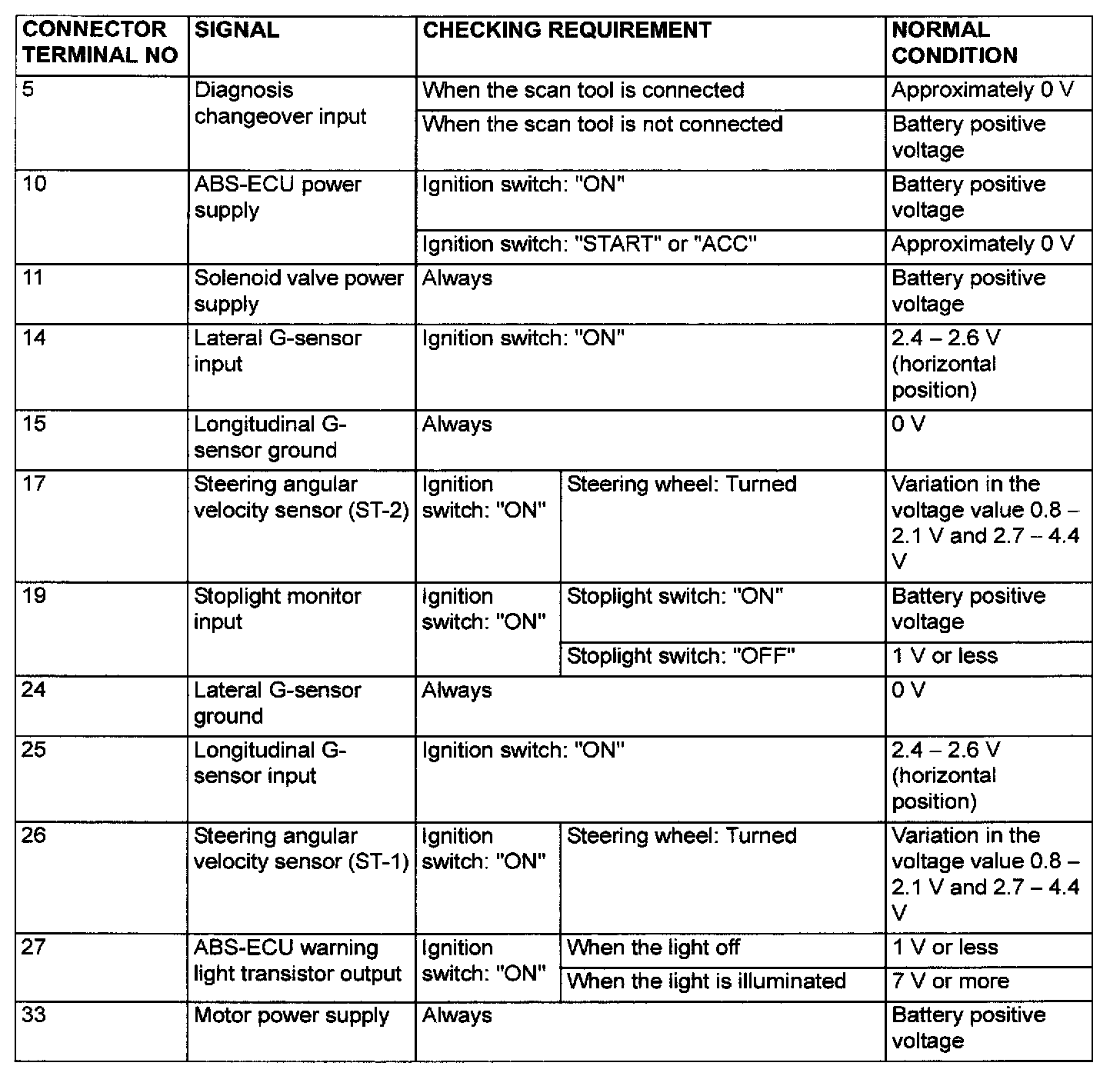

TERMINAL VOLTAGE CHECK CHART
1. Measure the voltages between terminals (12) (ground terminal) and each respective terminal.








2. The terminal layout is shown in the illustration.

NOTE: Do not measure terminal voltage for approximately three seconds after the ignition switch is turned "ON." The ABS-ECU performs the initial check during that period.

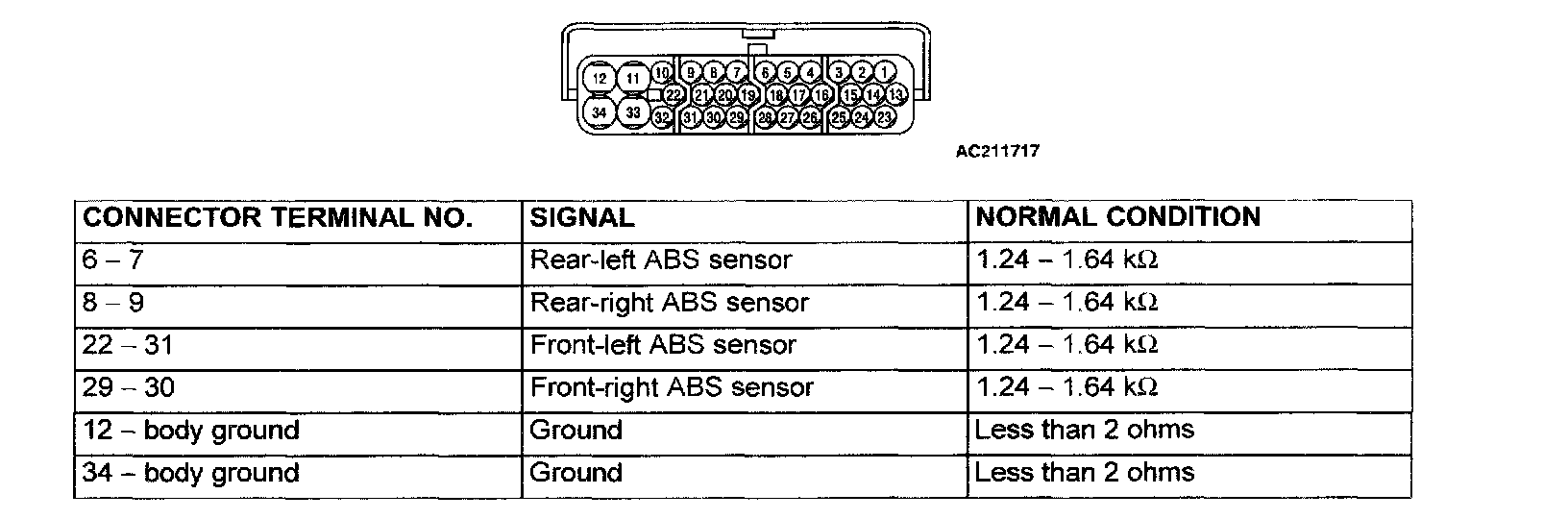

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.
2. Check the resistance and continuity between the terminals indicated in the table.





3. The terminal layout is shown in the illustration.
