Removal and Installation

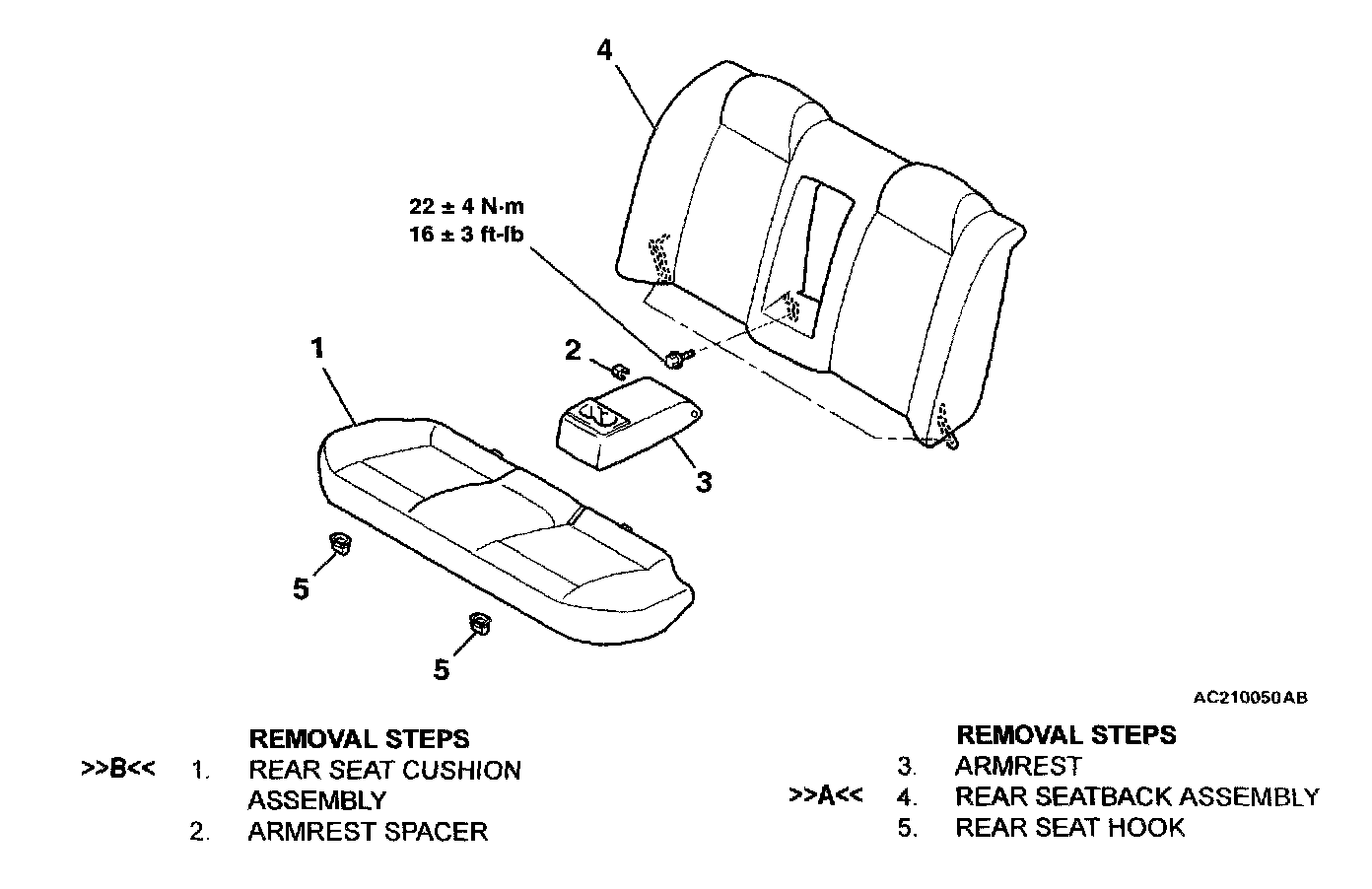

REAR SEAT:

INSTALLATION SERVICE POINTS

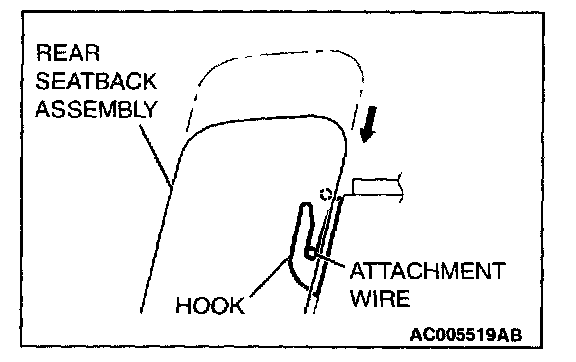

>>A<< INSTALLATION OF REAR SEATBACK ASSEMBLY
Press the rear seatback assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback assembly.

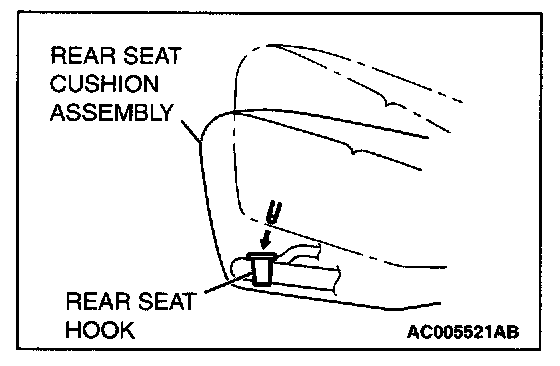

>>B<< INSTALLATION OF REAR SEAT CUSHION ASSEMBLY
Fit the rear seat cushion into the rear seat hook securely.
