Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Procedures >> Front Seat >> Disassembly and Assembly

Disassembly and Assembly

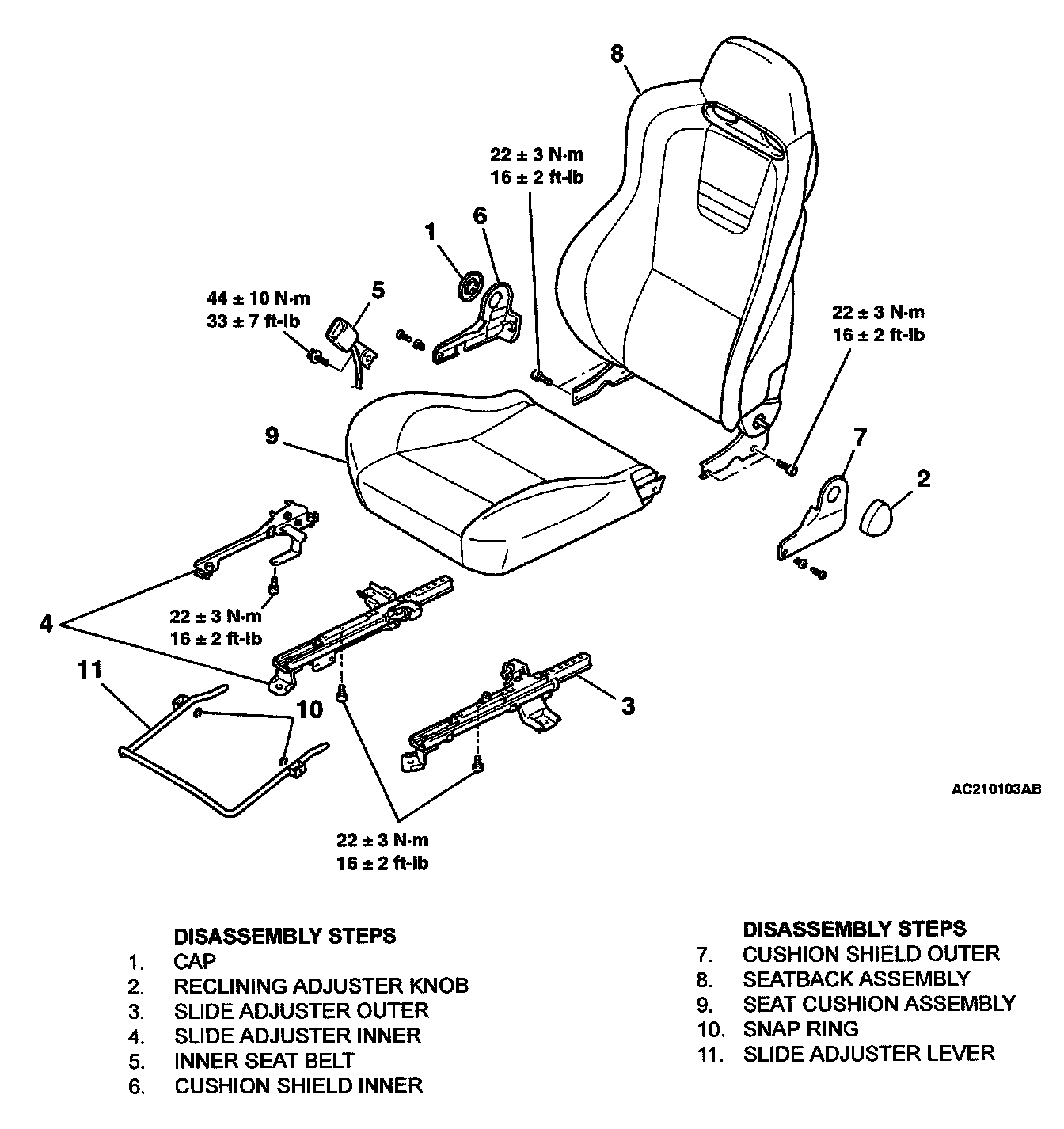

FRONT SEAT:
