Paint Code and Color Label Location

NOTE: This article has been updated by TSB Number 04-51-002REV, November, 2004, All 2004 Models. This bulletin revises TSB-04-51-002 issued April 2004, which should be discarded. New and revised information is indicated by an arrow.






VEHICLE INFORMATION CODE PLATE

Vehicle information code plate is riveted onto the bulkhead in the engine compartment.

The place shows model code, engine model, transaxie model, and body color code.

2004 EXTERIOR COLOR CODES AND MODEL APPLICATIONS

PURPOSE
This article contains exterior color information for all 2004 Mitsubishi Motors passenger vehicles.

The tables are as follows:
1. 2004 Exterior factory Color Codes and Model Applications
2. Paint Manufacturers' Stock Numbers for 2004 Exterior Refinishing
3. 2004 Two-Tone Color Combinations

Use these tables when ordering refinishing materials from your local automotive paint dealer.

2004 EXTERIOR COLORS

There are forty-four (44) colors included in the 2004 model line-up. Thirty-one (31) colors are carried over from previous years and thirteen (13) are new. Also, there are twelve (12) two-tone exterior color combinations (Montero & Montero Sport). Regardless of the main body color, all Outlander models have front and rear bumpers and side sill plates painted in Argent Silver (see Tables 1 and 2).

Table 1 contains Mitsubishi factory Color Codes and Model Applications. The new colors for 2004 are identified by bold characters.

Table 2 contains the manufacturers' stock numbers from several automotive refinish companies, which correspond with the Color Codes and Model Applications shown in Table 1. The new colors for 2004 are identified by bold characters.

Table 3 on Page 4 shows the two-tone color combinations for 2004 models.

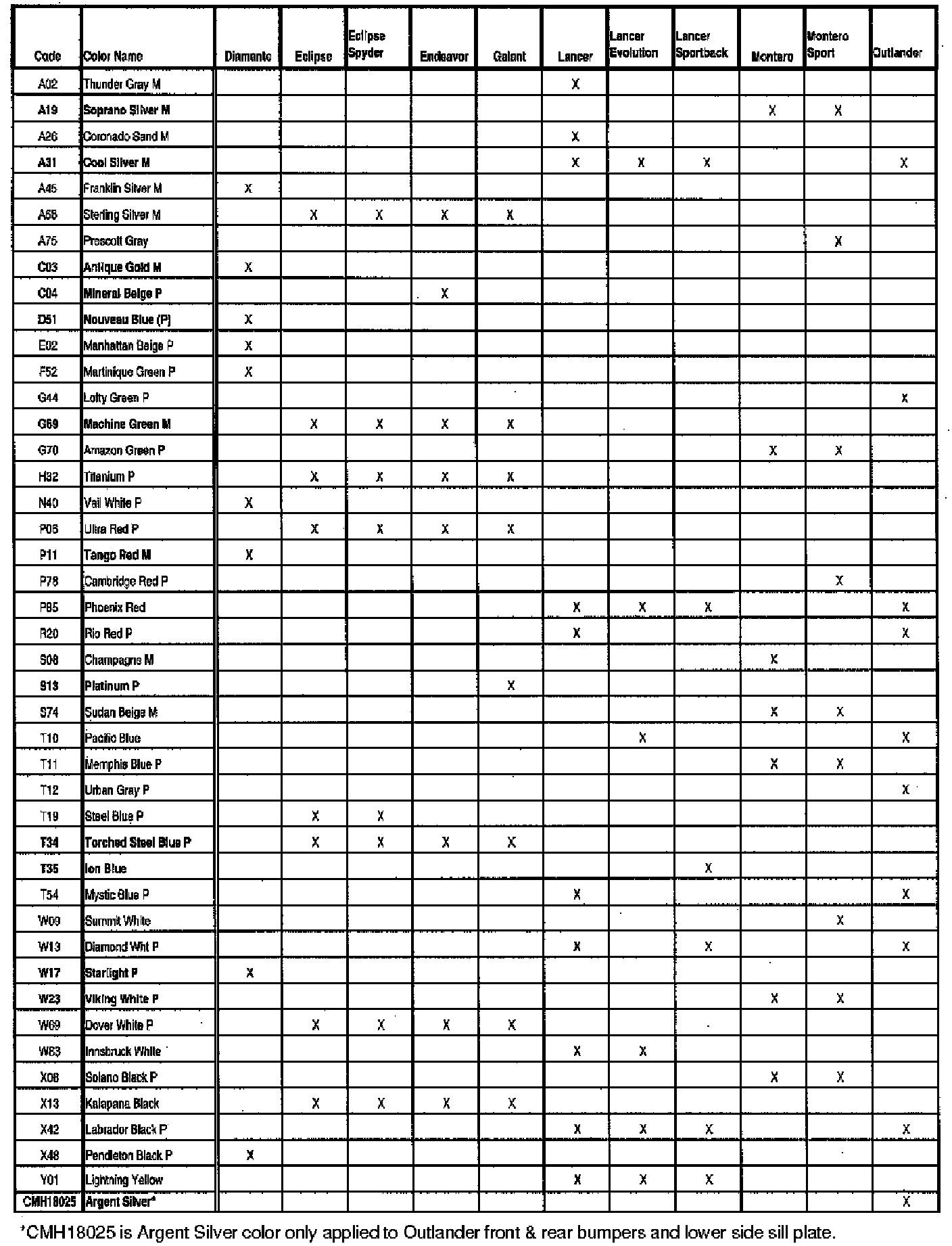

TABLE 1: 2004 EXTERIOR COLOR CODES AND MODEL APPLICATIONS

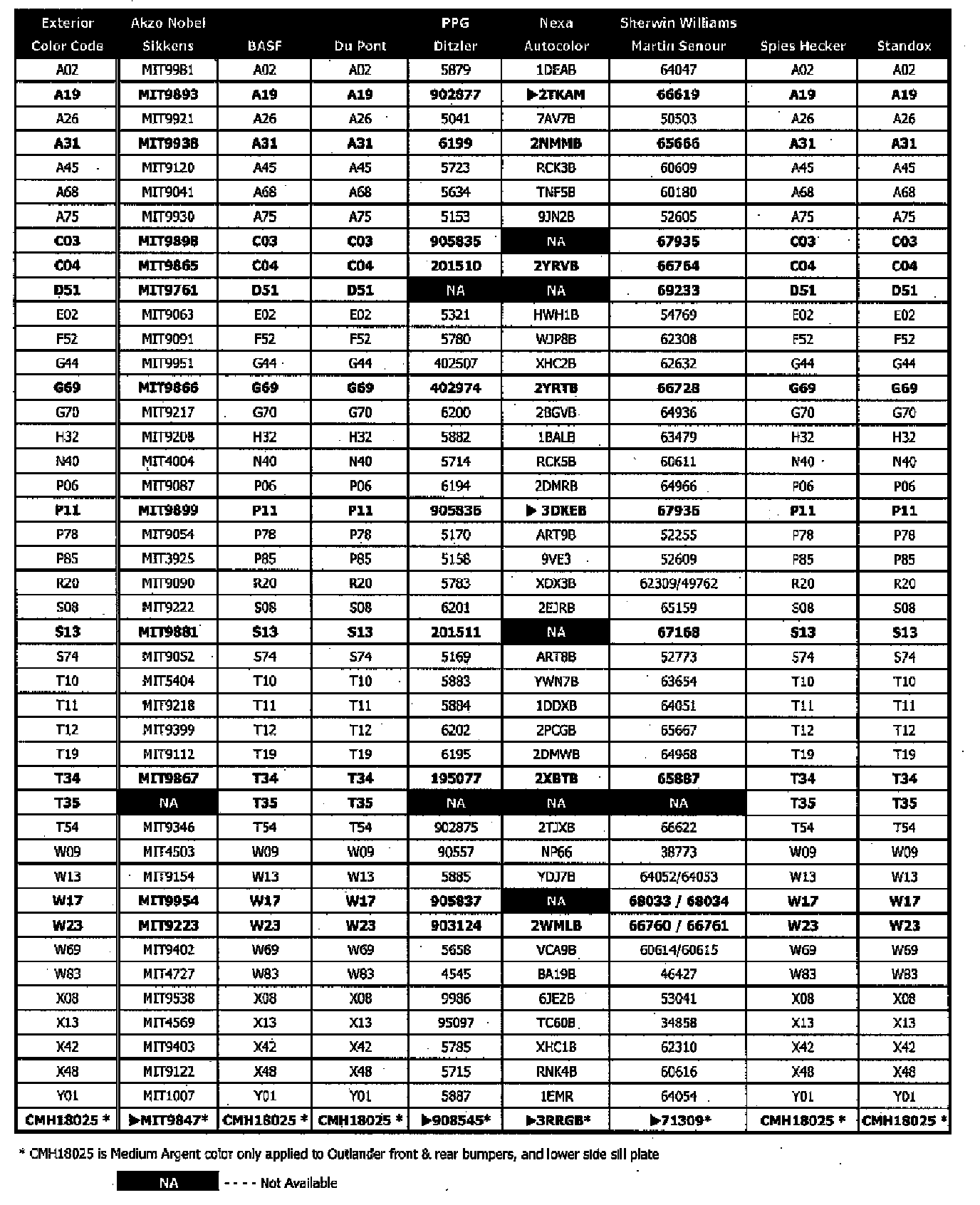

TABLE 2: PAINT MANUFACTURERS' STOCK NUMBER FOR 2004 EXTERIOR REFINISHING

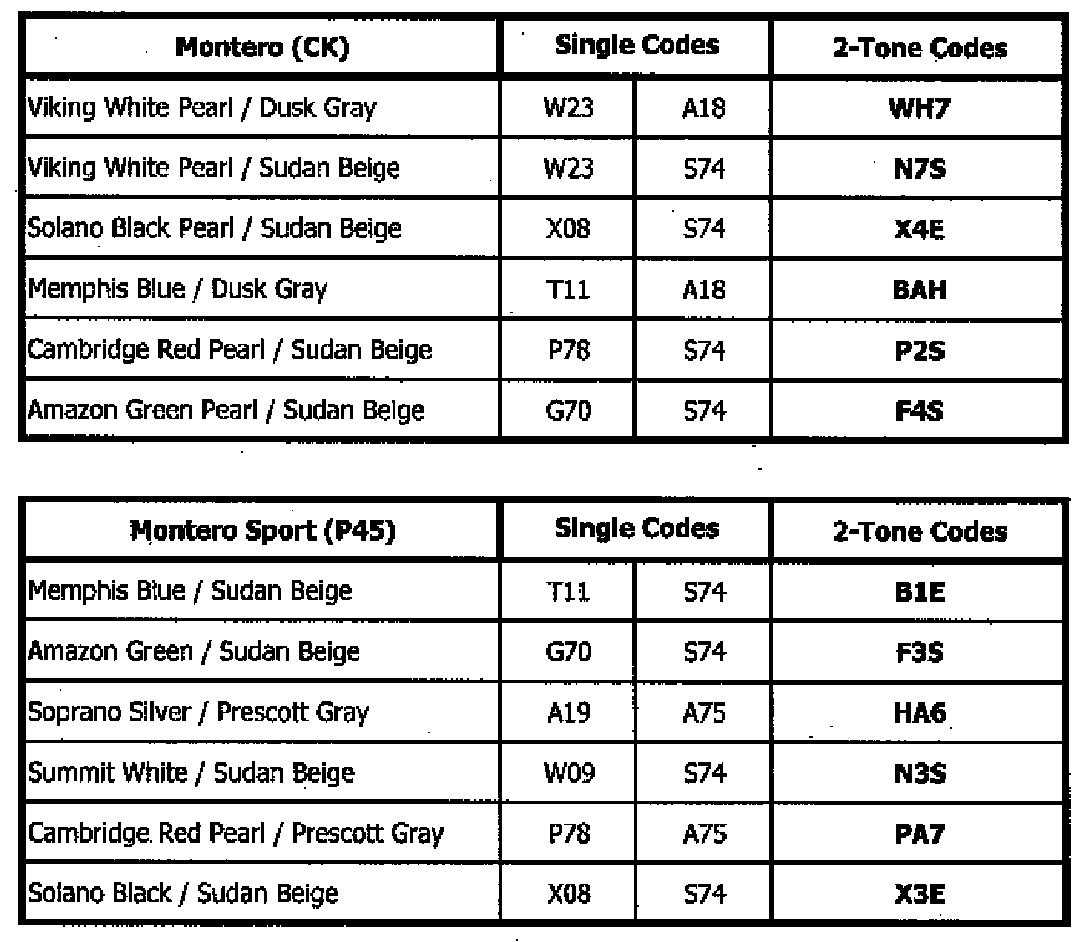

TABLE 3: 2004 TWO-TONE COLOR COMBINATIONS
