Mirrors: Testing and Inspection

INSPECTION

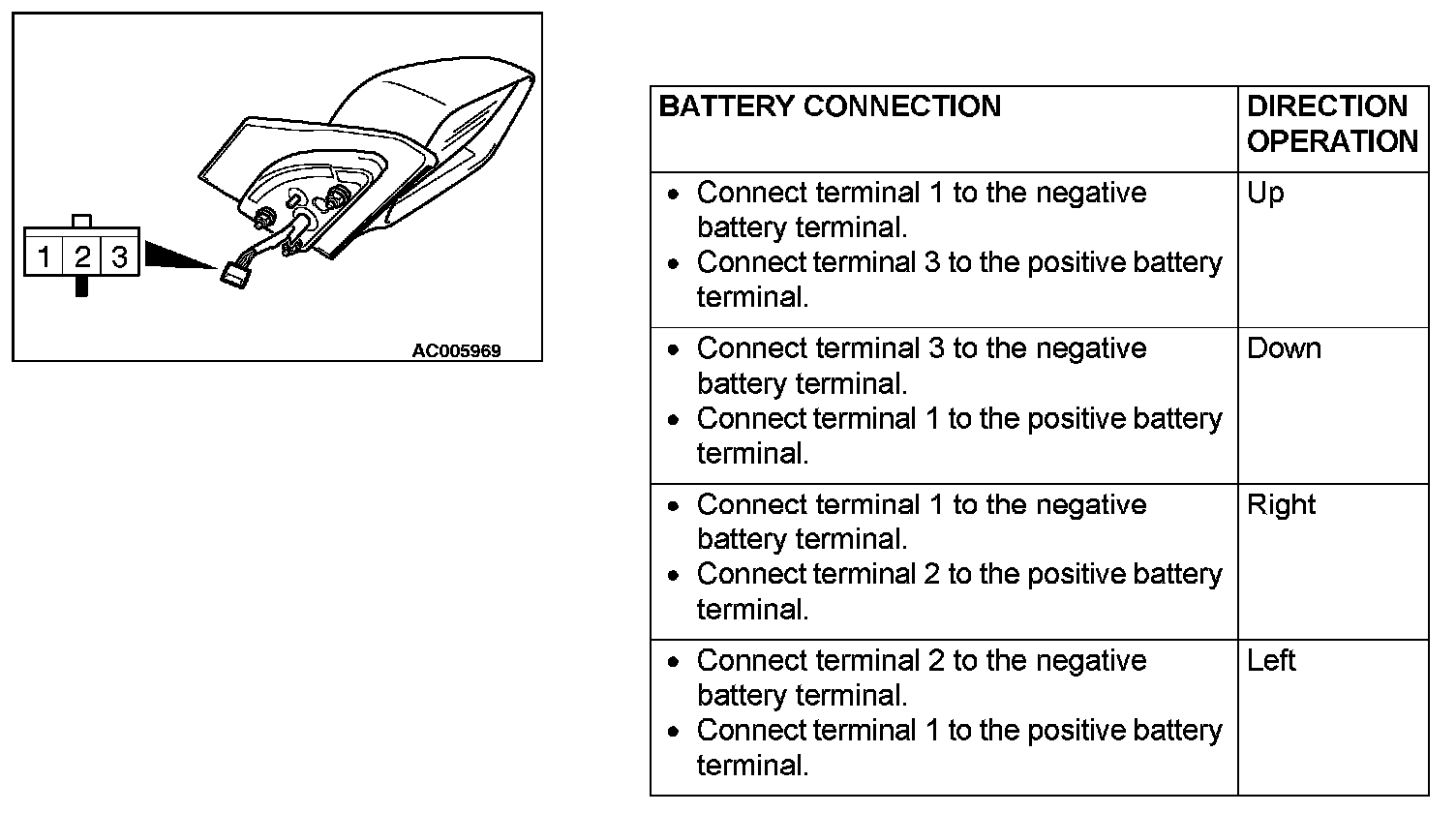

ELECTRICAL REMOTE CONTROLLED MIRROR OPERATION CHECK

check that the mirror as described in the table when each terminal is connected to the battery.

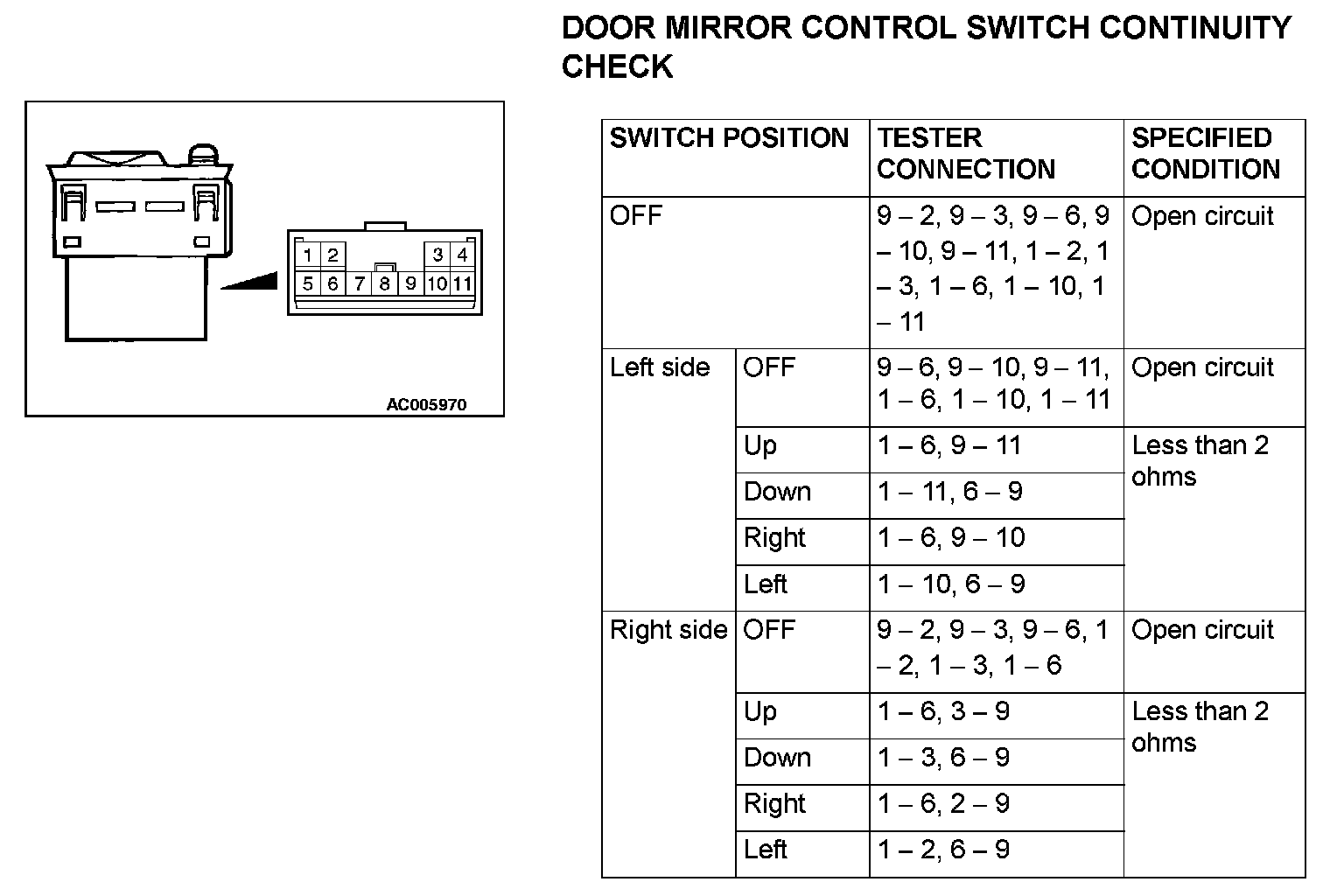

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK
