Removal and Replacement

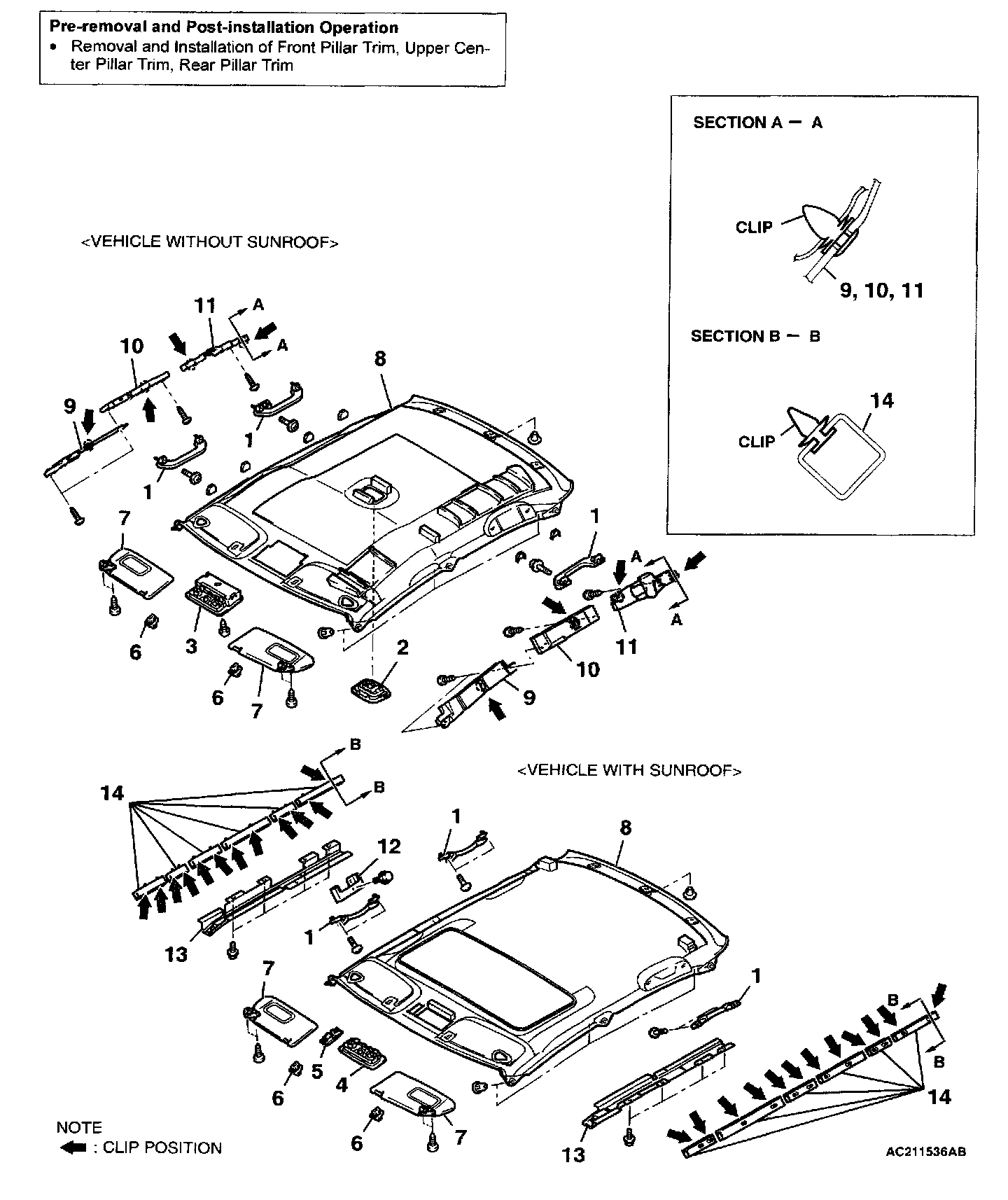

HEADLINER:

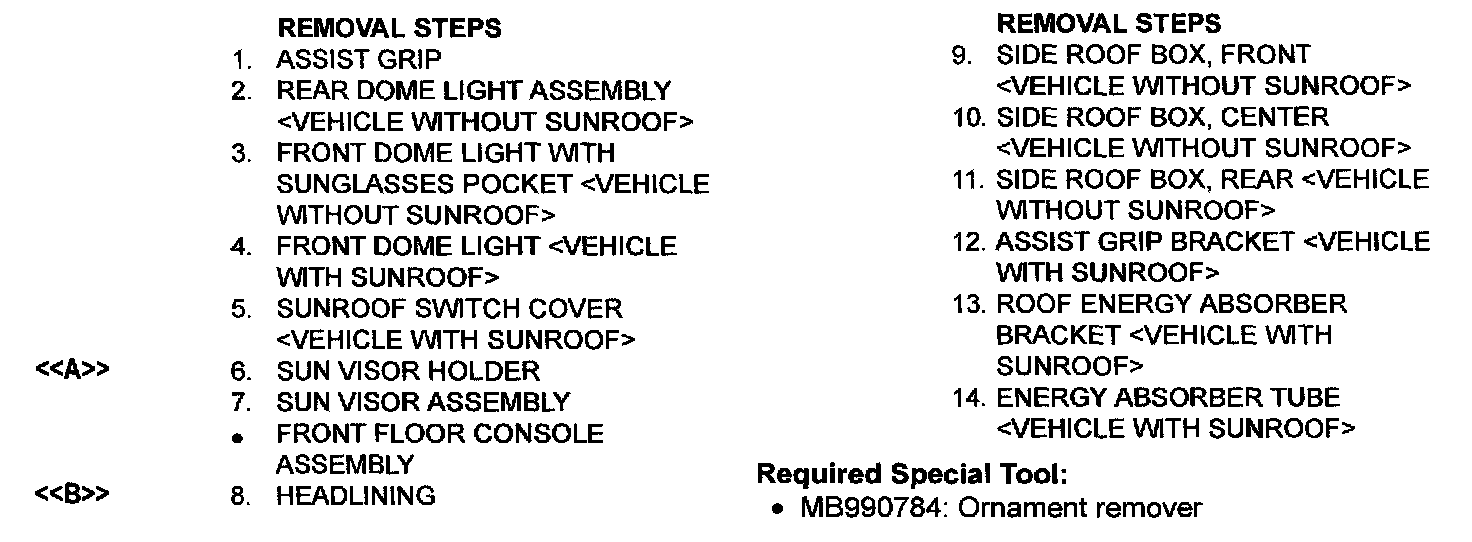

HEADLINER REMOVAL STEPS:

REMOVAL SERVICE POINTS

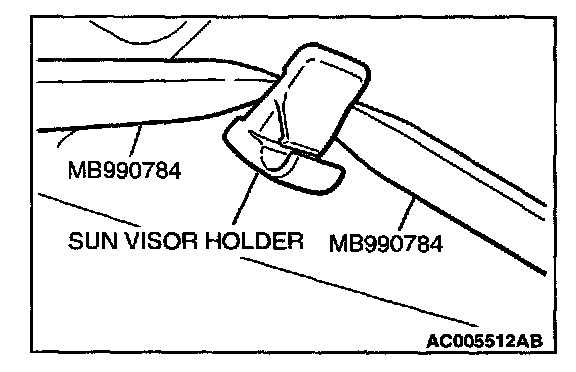

[[A]] SUN VISOR HOLDER REMOVAL
Insert special tool MB990784 into side claws of the sun visor holder through both sides of the sun visor holder, to remove the hinges.

[[B]] HEADLINING REMOVAL
Bend the headlining to remove from the front passenger's door.
