Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

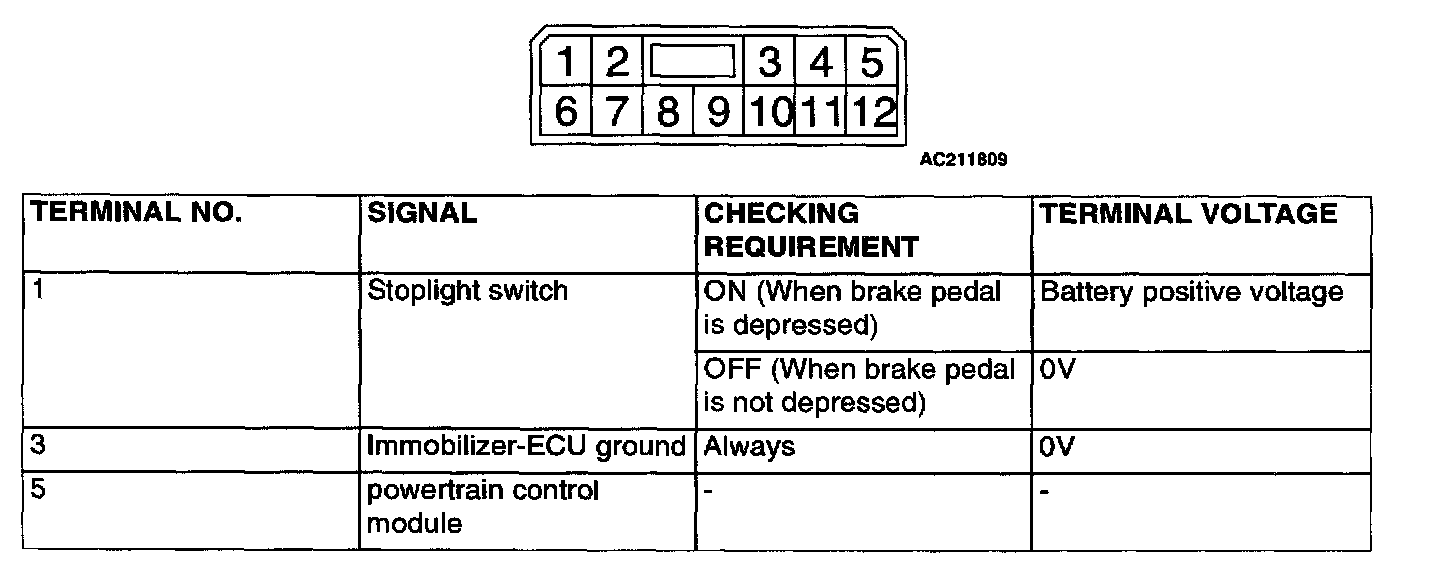

Check At Immobilizer-ECU - Terminal Voltage Check Part 1:

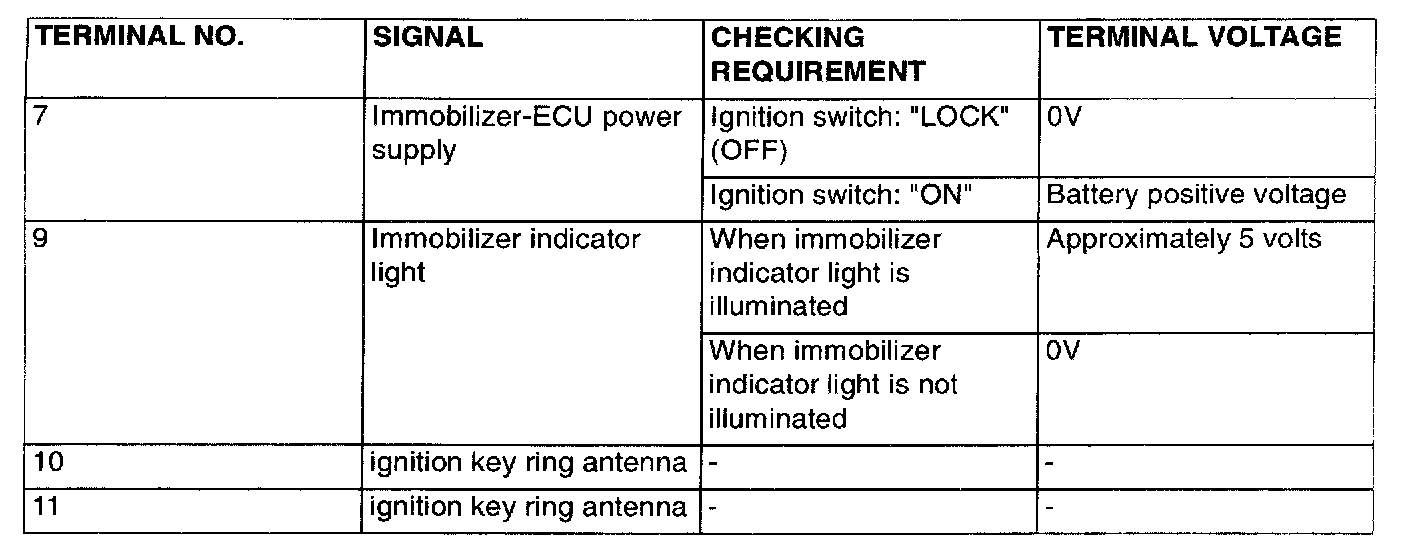

Check At Immobilizer-ECU - Terminal Voltage Check Part 2:
