P0137

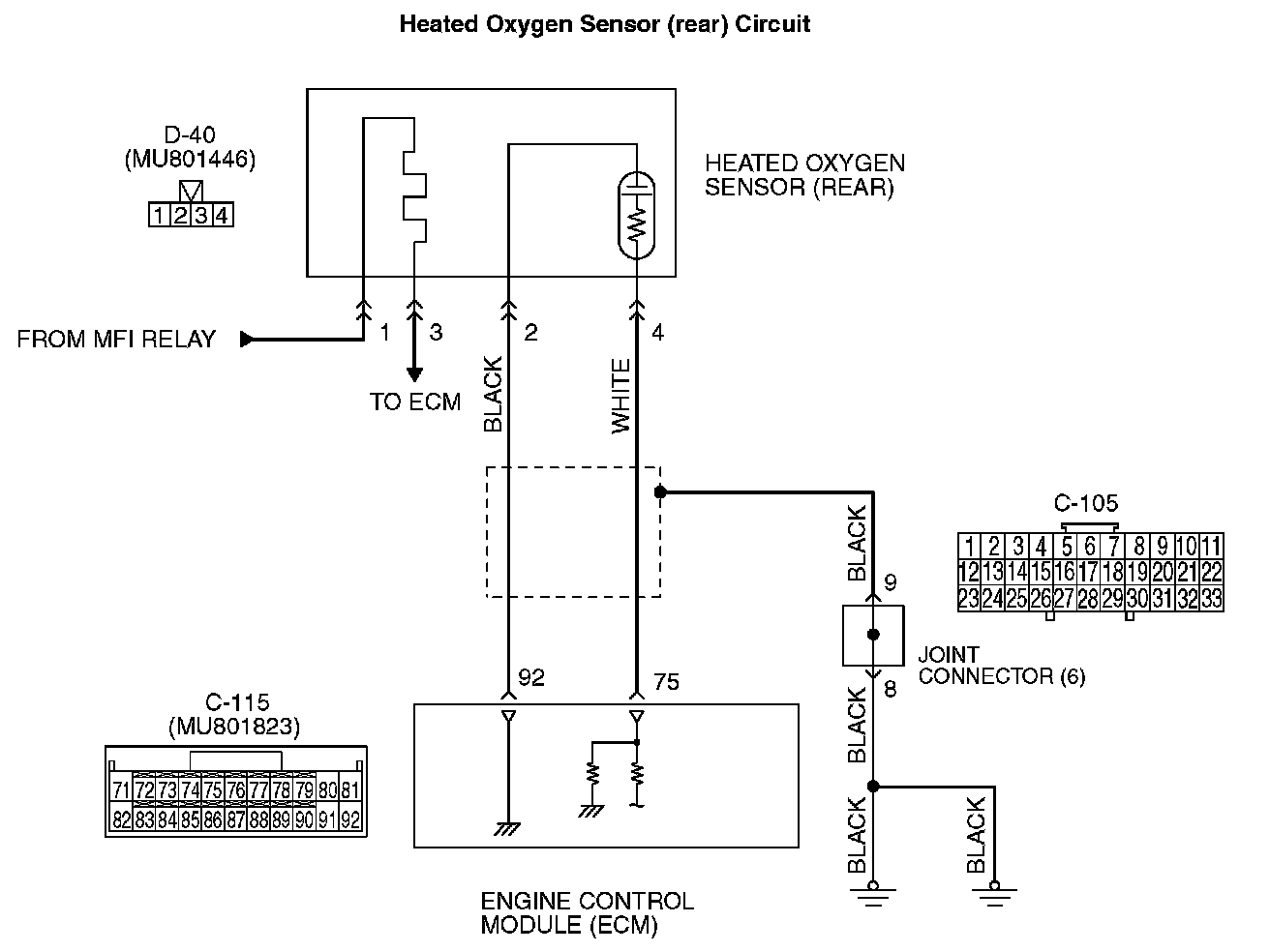

DTC P0137: Heated Oxygen Sensor Circuit Low VoltageHeated Oxygen Sensor (rear) Circuit Part 1:
Heated Oxygen Sensor (rear) Circuit Part 2:
CIRCUIT OPERATION
- A voltage corresponding to the oxygen concentration in the exhaust gas is sent to the ECM (terminal No. 75) from the output terminal (terminal No. 1) of the heated oxygen sensor (rear).
- Terminal No. 2 of the heated oxygen sensor (rear) is grounded with ECM (terminal No. 92).
TECHNICAL DESCRIPTION
- The output signal of the heated oxygen sensor (front) is compensated by the output signal of the heated oxygen sensor (rear).
- The ECM checks for an open circuit in the heated oxygen sensor (rear) output line.
DESCRIPTIONS OF MONITOR METHODS
- Heated oxygen sensor (rear) output voltage stays low when air/fuel ratio is forced to be rich. The above procedure is repeated when oxygen sensor is inactive.
MONITOR EXECUTION
- Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Heated oxygen sensor heater (front) monitor
- Heated oxygen sensor heater (rear) monitor
- Air/fuel ratio feedback monitor
Sensor (The sensor below is determined to be normal)
- Volume airflow sensor
- Engine coolant temperature sensor
- Intake air temperature sensor
- Barometric pressure sensor
DTC SET CONDITIONS

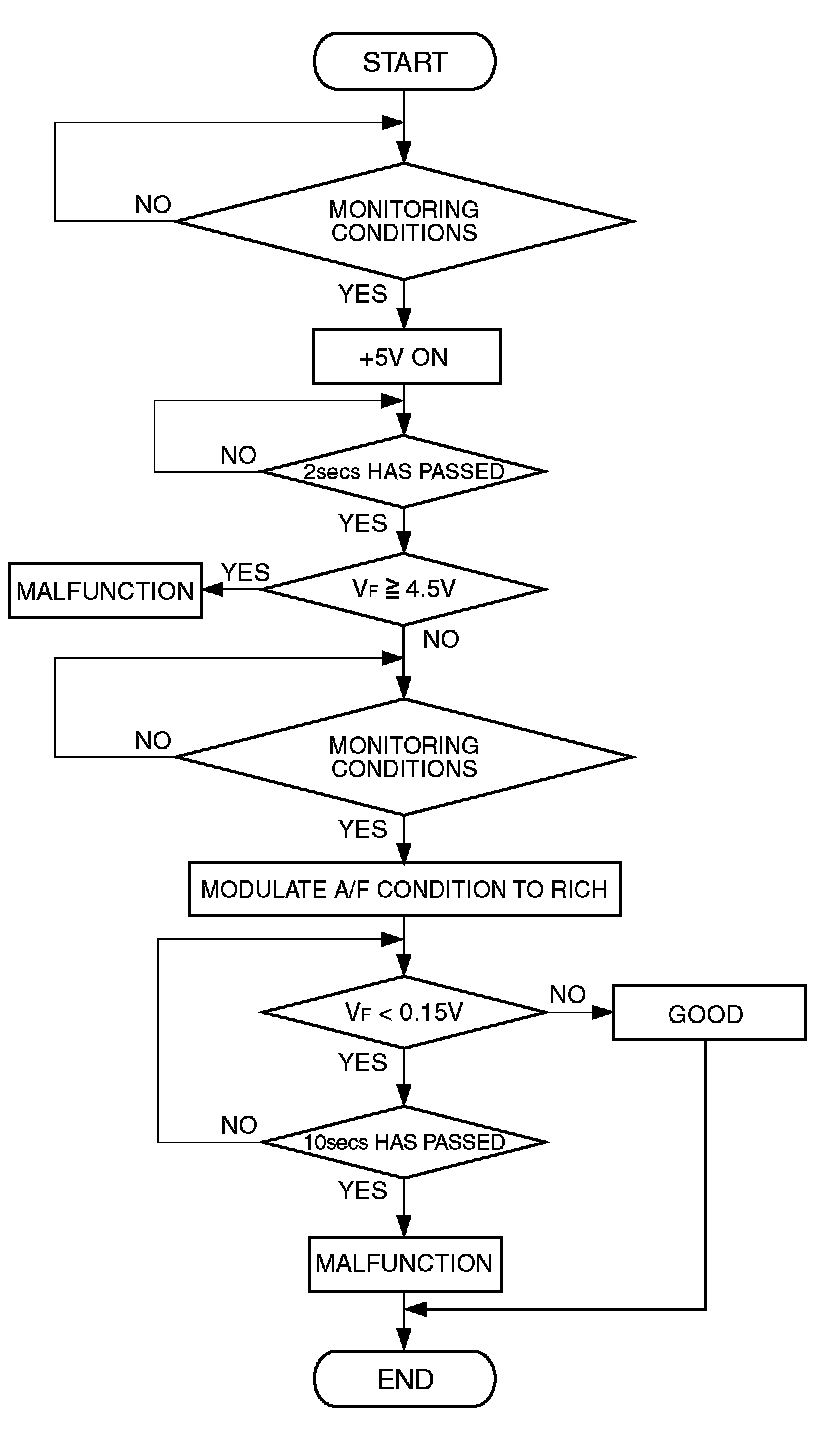

Logic Flow Chart:
Logic Flow Chart
Check Conditions
- 3 minutes or more have passed since the starting sequence was completed.
- Heated oxygen sensor (rear) signal voltage has continued to be 0.15 volt or lower.
- Engine coolant temperature is higher than 76 °C (169 °F).
- Engine speed is higher than 1,200 r/min.
- Volumetric efficiency is higher than 25 percent.
- Volume airflow sensor output frequency is 56 Hz or more.
- At least 20 seconds have passed since fuel shut off control was canceled.
- Monitoring time: 10 seconds.
Judgement Criteria
- Making the air/fuel ratio 15 percent for 10 seconds richer does not result in raising the heated oxygen sensor (rear) output voltage beyond 0.15 volt.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Procedure 6 - Other Monitor. OBD-II Drive Cycle Pattern Lists
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Heated oxygen sensor (rear) failed.
- Short circuit in heated oxygen sensor (rear) output line.
- Connector damage.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B
- MB991658: Test Harness Set
STEP 1. Using scan tool MB991958, check data list item 59: Heated Oxygen Sensor (rear).
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

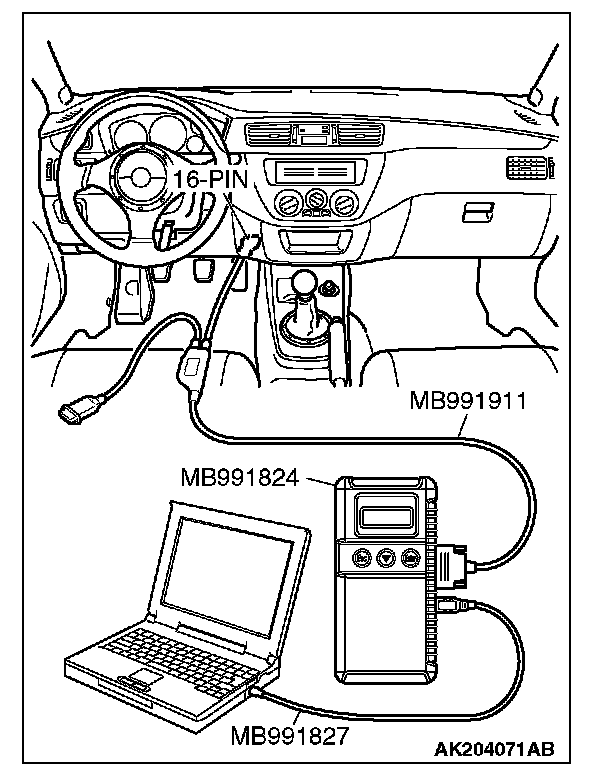

1. Connect scan tool MB991958 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991958 to the data reading mode for item 59, Heated Oxygen Sensor (rear).
- Warm up the engine. When the engine is revved, the output voltage should repeat 0 volt and 0.6 to 1.0 volt alternately.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES: It can be assumed that this malfunction is intermittent.
Refer to How to Use Troubleshooting/Inspection Service Points.
NO: Go to Step 2.
STEP 2. Check the heated oxygen sensor (rear).

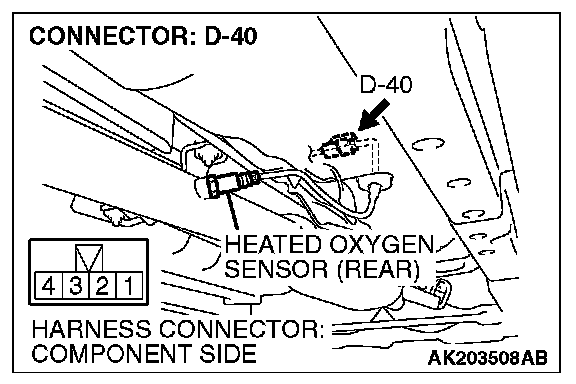

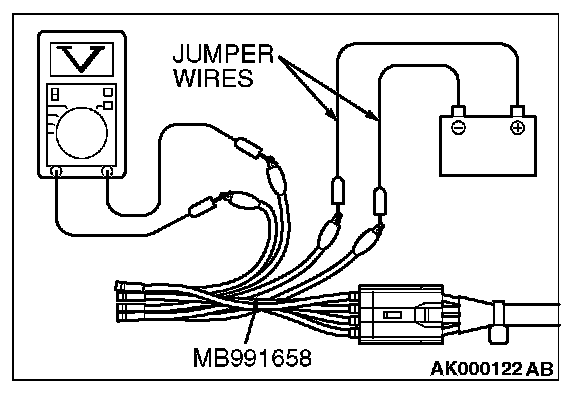

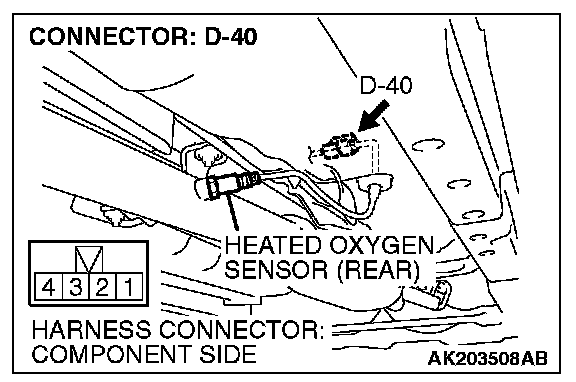

1. Disconnect the heated oxygen sensor (rear) connector D-40 and connect test harness special tool, MB991658, to the connector on the heated oxygen sensor (front) side.
2. Warm up the engine until engine coolant 80 °C (176 °F) or higher.
CAUTION: Be very careful when connecting the jumper wires; incorrect connection can damage the right bank heated oxygen sensor (rear).
3. Use the jumper wires to connect terminal No. 3 to the positive battery terminal and terminal No. 4 to the negative battery terminal.
4. Connect a digital volt meter between terminal No. 1 and terminal No. 2.
5. While repeatedly revving the engine, measure the heated oxygen sensor (rear) output voltage.
Standard value: 0.6 - 1.0 volt
Q: Is the voltage between 0.6 and 1.0 volt?
YES: Go to Step 3.
NO: Replace the heated oxygen sensor (rear). Then go to Step 5.

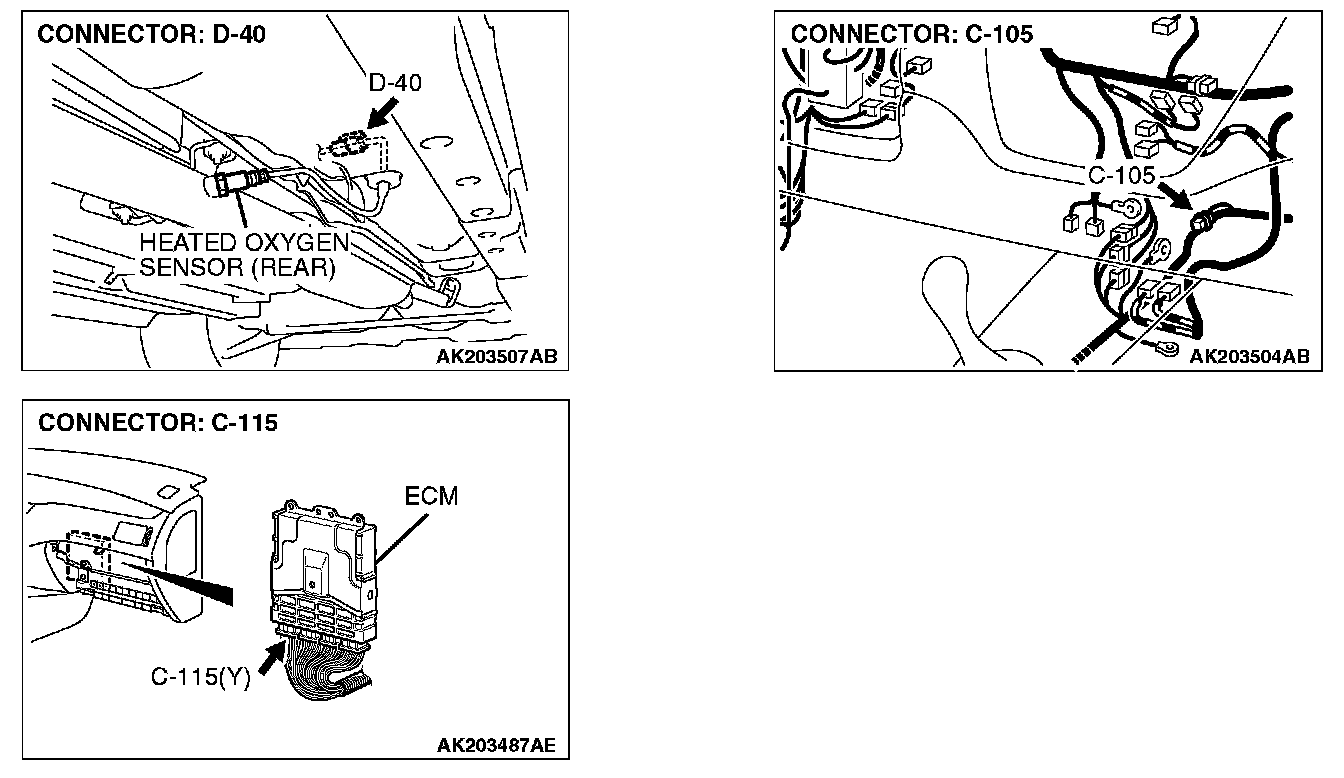

STEP 3. Check harness connector D-40 at heated oxygen sensor (rear) and connector C-115 at ECM for damage.
Q: Is the harness connector in good condition?
YES: Go to Step 4.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then go to Step 5.

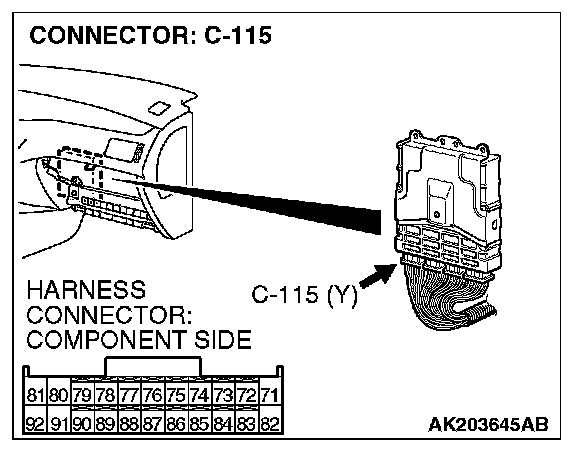

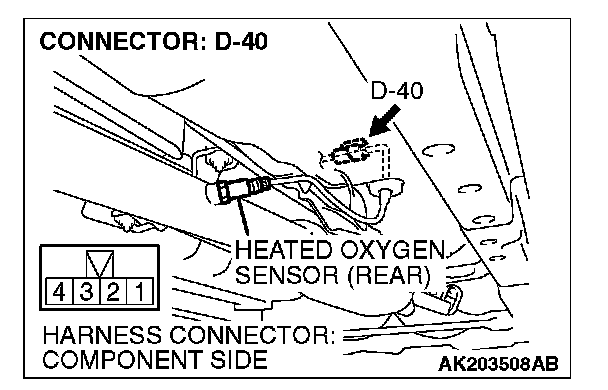

STEP 4. Check for short circuit to ground between heated oxygen sensor (rear) connector D-40 (terminal No. 1) and ECM connector C-115 (terminal No. 75).
Q: Is the harness wire in good condition?
YES: Replace the ECM. Then go to Step 5.
NO: Repair it. Then go to Step 5.
STEP 5. Perform the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Procedure 6 - Other Monitor. OBD-II Drive Cycle Pattern Lists
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0137 set?
YES: Repeat the troubleshooting.
NO: The procedure is complete.
