Home >> Mitsubishi >> 2004 >> Lancer Evolution L4-2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Supplemental Restraint System (SRS)

Supplemental Restraint System (SRS)

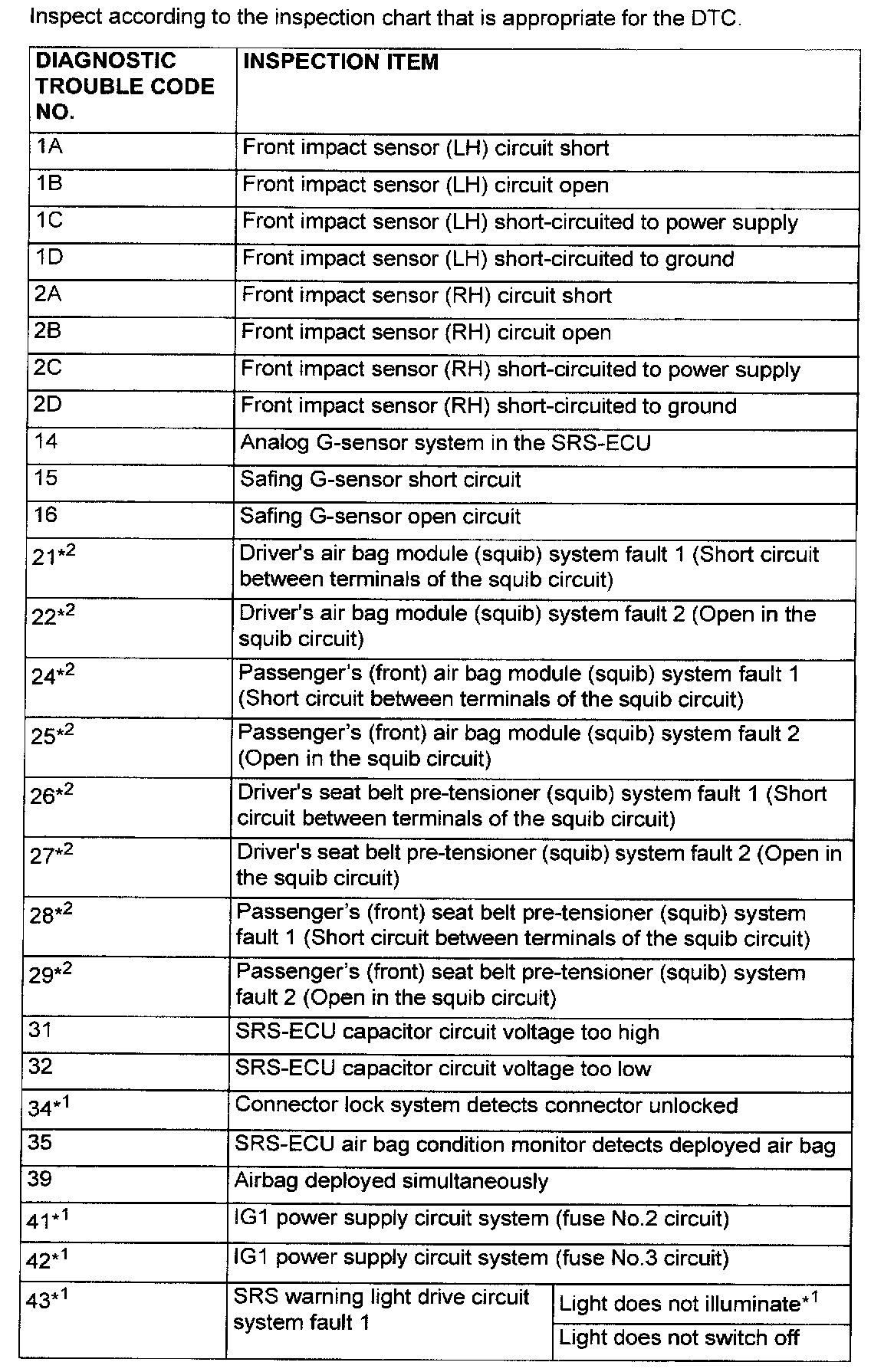

Diagnostic Trouble Code Chart Part 1:

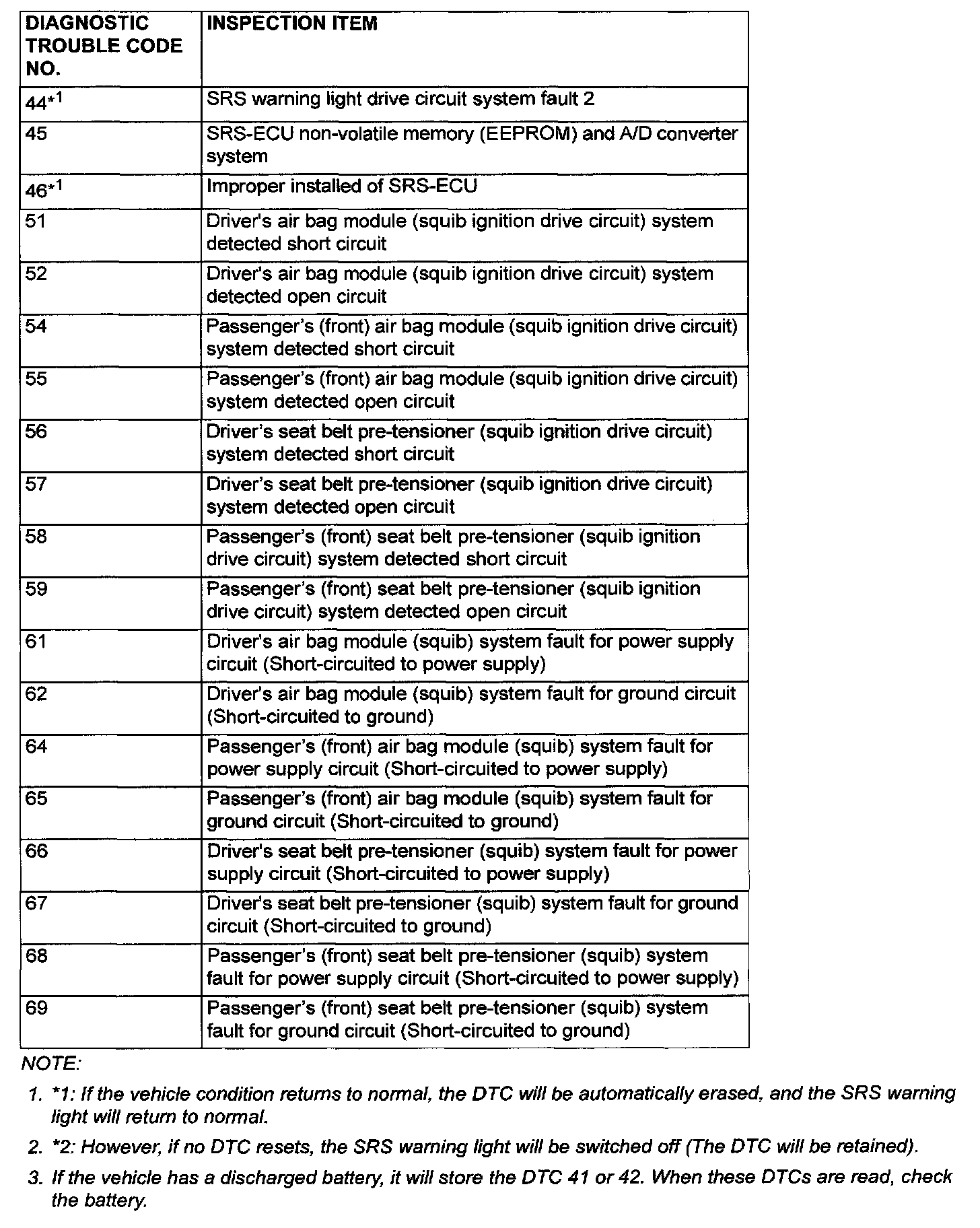

Diagnostic Trouble Code Chart Part 2:
