Windshield Washer Pump: Testing and Inspection

FRONT WASHER MOTOR CHECK






1. With the washer motor installed to the washer tank, fill the washer tank with water.

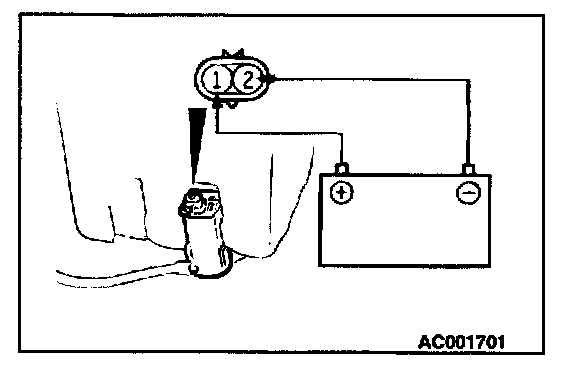

2. Check that water is sprayed out strongly when battery voltage is applied to terminal (1) and terminal (2) is grounded.
