Component Tests and General Diagnostics

INSPECTION

REAR WIPER MOTOR CHECK






Check the wiper motor after first disconnecting the wiring harness connector, and with the wiper motor remaining installed to the body.

Wiper Motor Operation

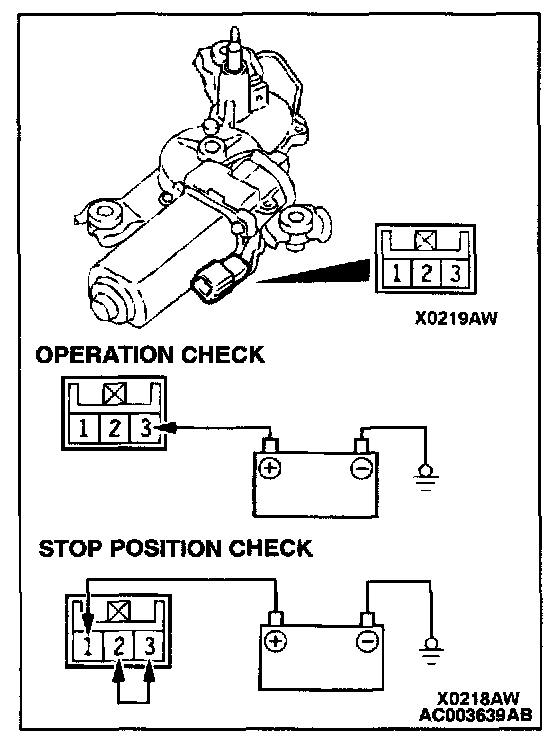

Connect a battery to the wiper motor as shown in the illustration and inspect the motor operation.

Wiper Motor at Stop Position Operation
1. Run the wiper motor, disconnect the battery, and stop the motor.
2. Reconnect the battery as shown in the illustration, and confirm that after the motor starts turning it stops at the automatic stop position.

REAR WASHER MOTOR CHECK






1. With the washer motor installed to the washer tank, fill the washer tank with water.

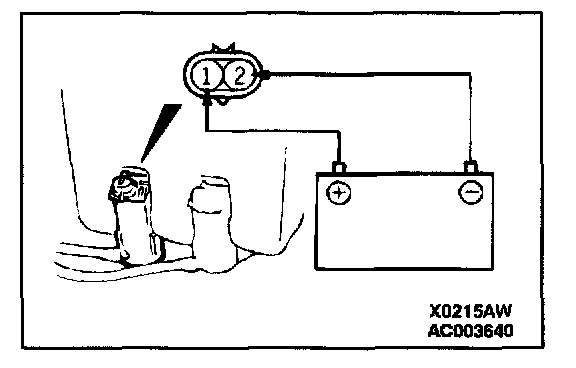

2. When the battery is connected as shown in the figure, check that the washer squirts out strongly.

REAR WIPER AND WASHER SWITCH INSPECTION

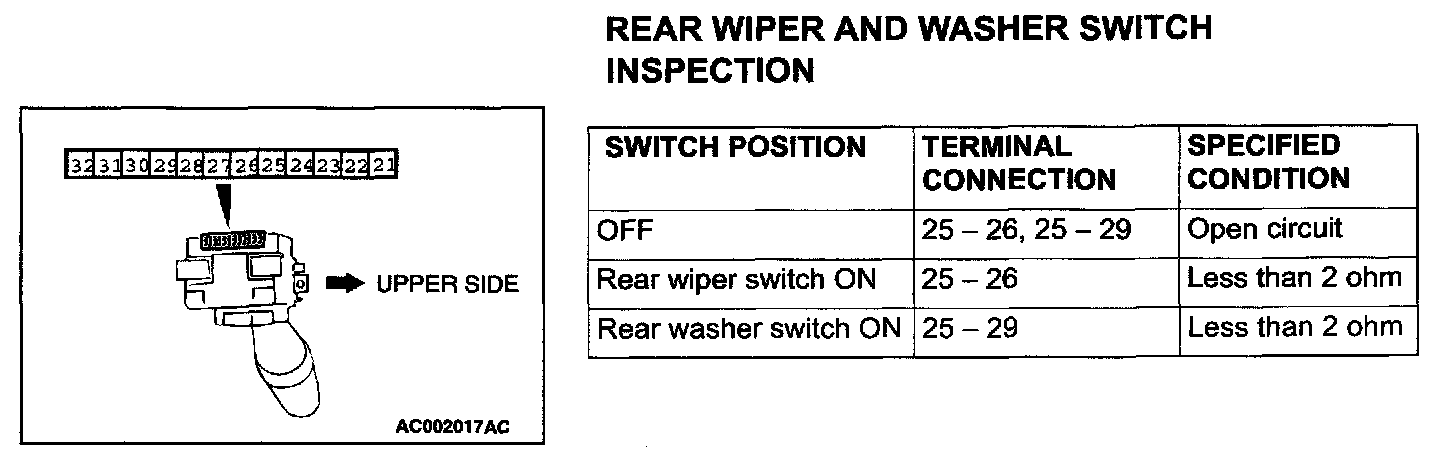

Rear Wiper And Washer Switch Inspection:
