Rear Wiper

REAR WIPER

REMOVAL AND INSTALLATION

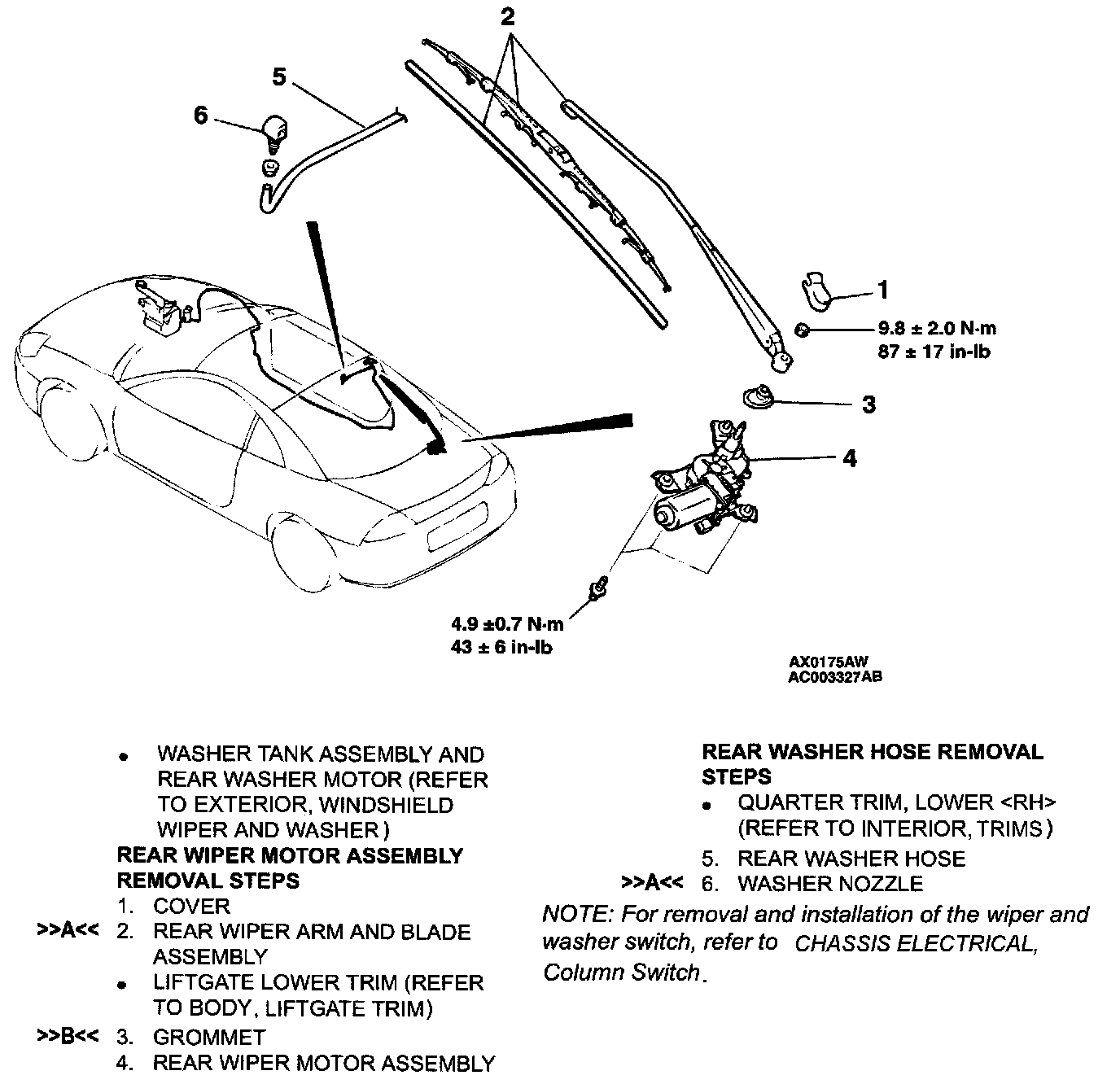

Removal Steps 1-6:

INSTALLATION SERVICE POINTS

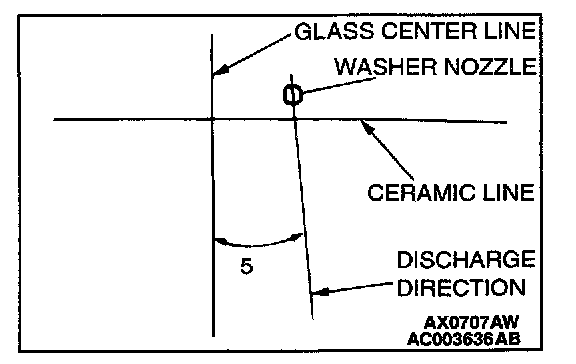

]]A[[ WASHER NOZZLE INSTALLATION






Install the washer nozzle in the specified direction.

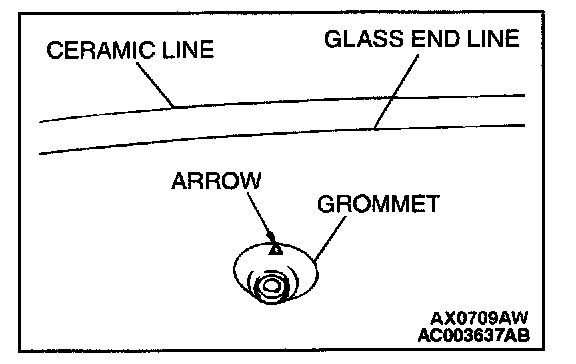

]]B[[ GROMMET INSTALLATION






Install the grommet so that the arrow points upwards.

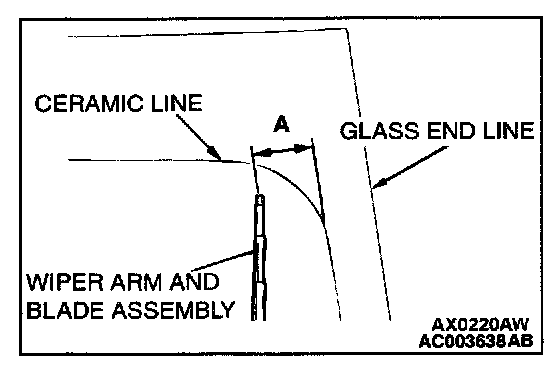

]]C[[ REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATION






Install the wiper blade so that the tip stops at the standard position (standard value), and also so that the lower section of the wiper blade enters the middle of the defogger pattern.

Standard value (A): 89 - 99 mm (3.5 ± 3.9 inches)
