Quarter Window Glass: Adjustments

1. Remove the quarter lower trim.
2. Remove the topstack rear rail weatherstrip.

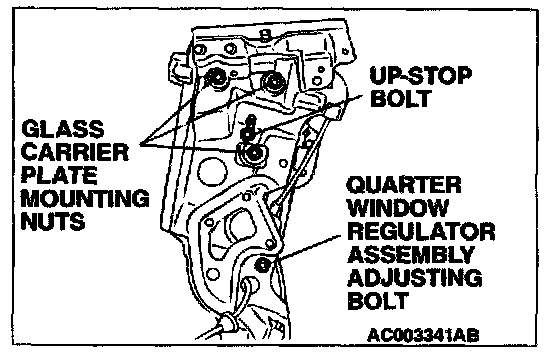

3. Loosen the bolts and nuts of the following parts.
- Quarter window regulator assembly
- Glass carrier plate
- Up-stop

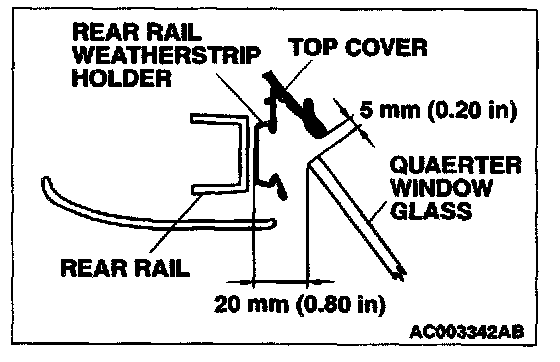

4. Tighten the glass carrier plate mounting nuts so that the gap between the quarter window glass and topstack rear rail weatherstrip holder meets the value shown.
5. Using the quarter window regulator assembly adjusting bolt, adjust so that the gap between the quarter window glass and topstack rear rail weatherstrip holder meets the value shown.

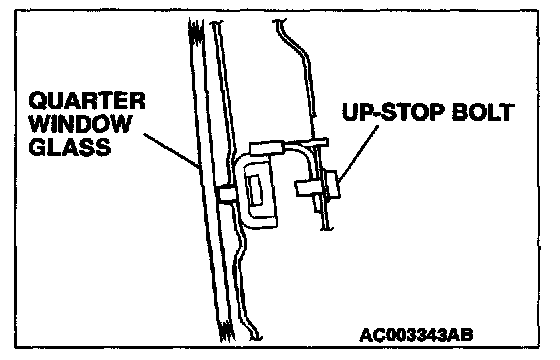

6. Press the up-stop against the quarter window glass stop, and then tighten the up-stop bolt.
7. Lock the adjusting bolt with a nut.

CAUTION: Ensure that the weatherstrip is not wrinkled or out of position.

8. Install the topstack rear rail weatherstrip.
9. Install the quarter lower trim.
10. Check the quarter window glass alignment according to the following procedure.

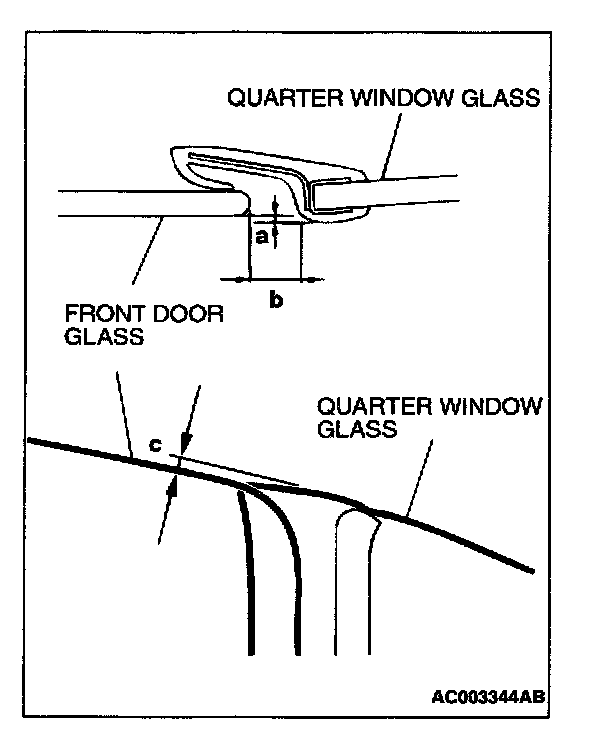

1. The upper end of the front door glass and the quarter window glass should be positioned so that standard value (a) is met.
Standard value (a): 1.0 ± 1.0 mm (0.04 ± 0.04 inches)

2. The front door glass and the quarter window glass should be positioned to meet standard value (c) so that gap in their upper end lines is smooth.
Standard value (c): 3.0 ± 1.0 mm (0.12 ± 0.04 inches)

3. The end line of the front door glass and the front line of the quarter window glass should be parallel in the interval of standard value (b).
Standard value (b): 8.7 mm (0.34 inches)
