Liftgate Window Glass: Service and Repair

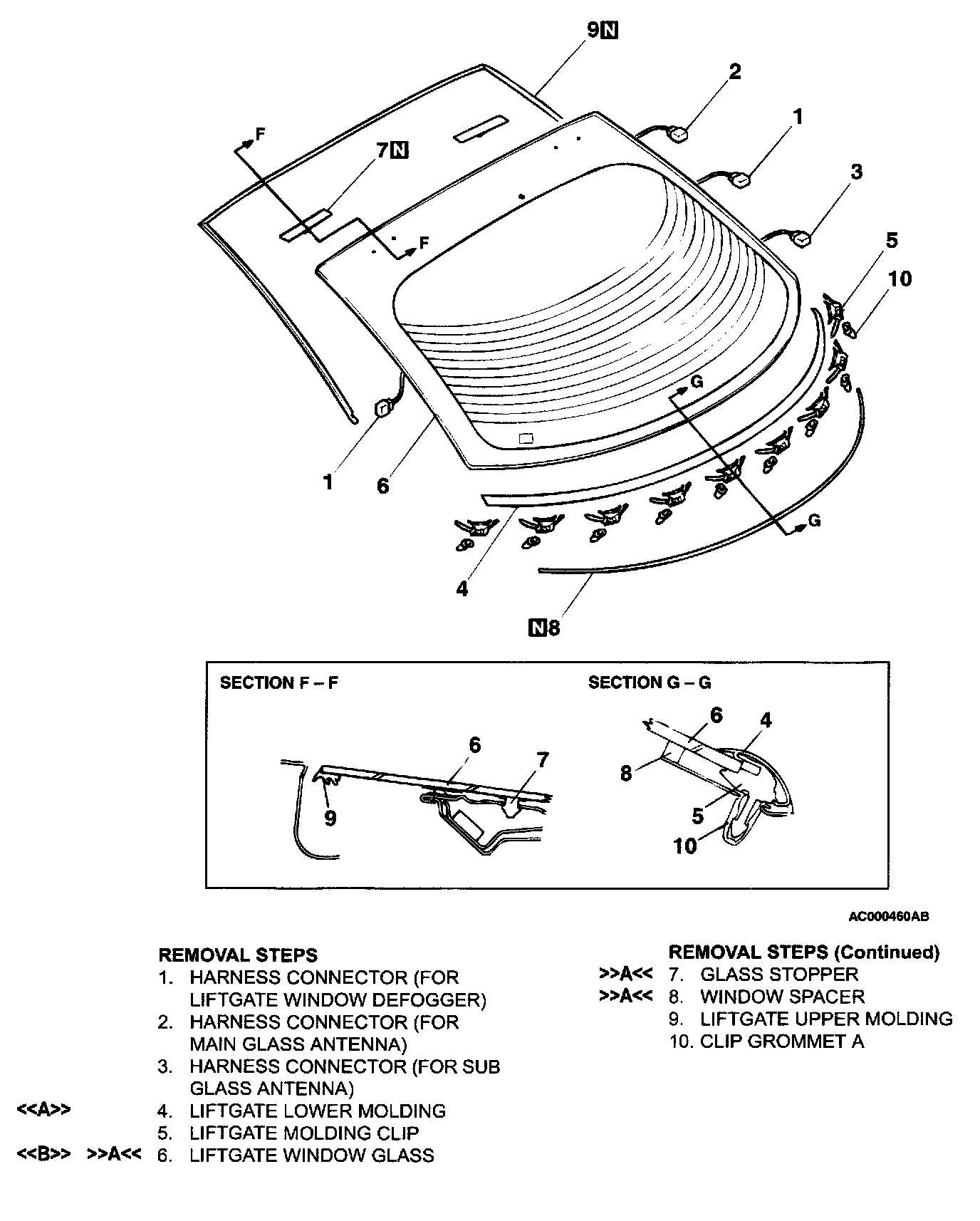

Liftgate Window Glass Part 1:

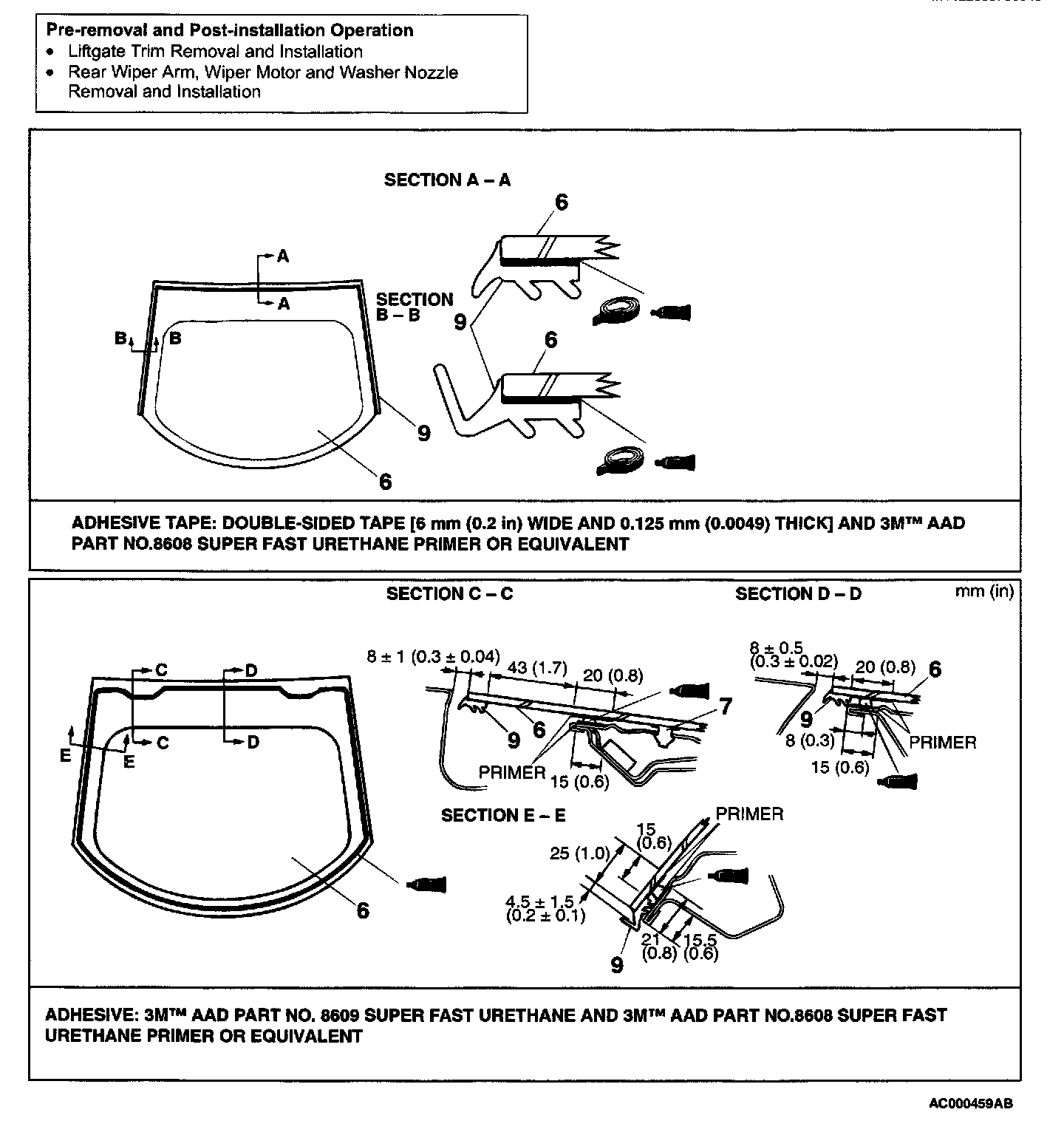

Liftgate Window Glass Part 2:

Required Special Tool
- MB990480: Glass Holder
- MB990449: Window molding remover

REMOVAL SERVICE POINTS




[[A]] LIFTGATE LOWER MOLDING REMOVAL

CAUTION: If liftgate lower molding has become warped, it should not be reused.

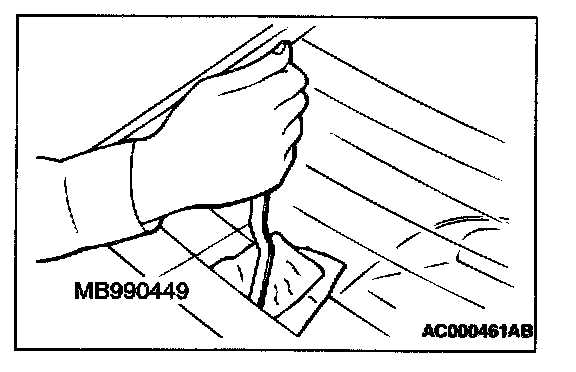

Use special tool MB990449 to lever out the molding.

[[B]] LIFTGATE WINDOW GLASS REMOVAL
Remove the liftgate window glass using the same procedure as for the windshield.

INSTALLATION SERVICE POINT

]]A[[ WINDOW SPACER/GLASS STOPPER/LIFTGATE WINDOW GLASS INSTALLATION
1. Use 3M(TM) AAD Part number 8906 or equivalent, to degrease the inside and outside edges of the liftgate window glass and the surface of the body flange.

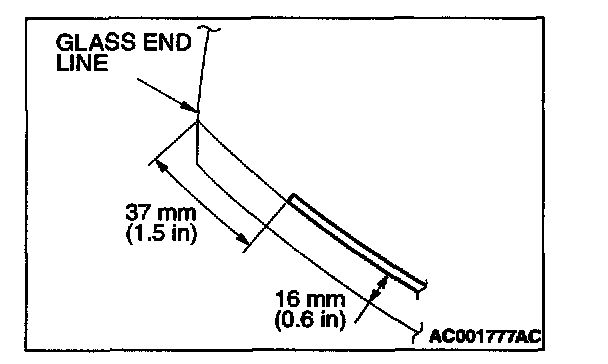

2. Install glass stopper so that it is bent toward inside the liftgate window glass and is firmly sticked.

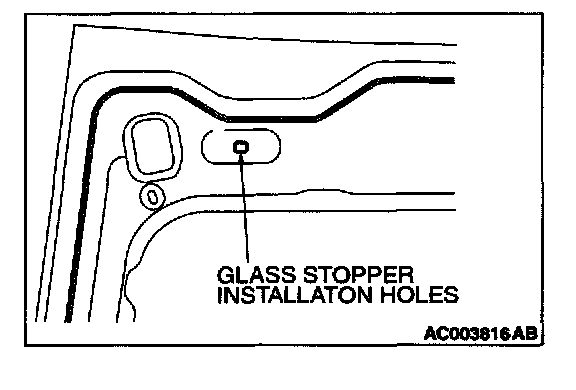

3. Install glass stopper on liftgate window glass at the same place as glass stopper is installed on body flange
4. Apply primer and adhesive.
5. Install the glass in the same way as for the windshield.
