Door - Power Window

Only the Door Window [RH] does not Open and Close.

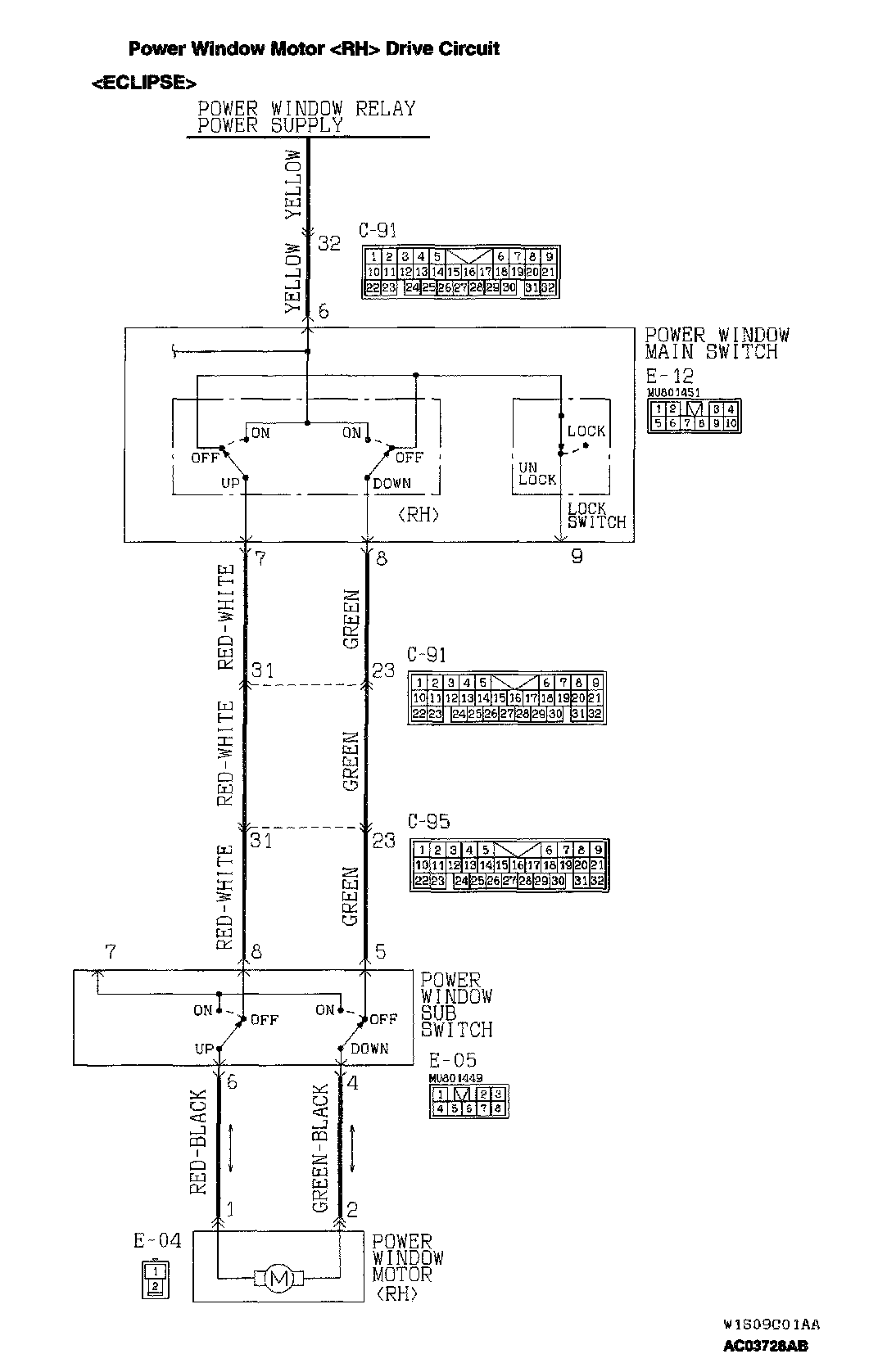

Power Window Motor <RH> Drive Circuit <Eclipse>:

Power Window Motor <RH> Drive Circuit <Eclipse Spyder>:

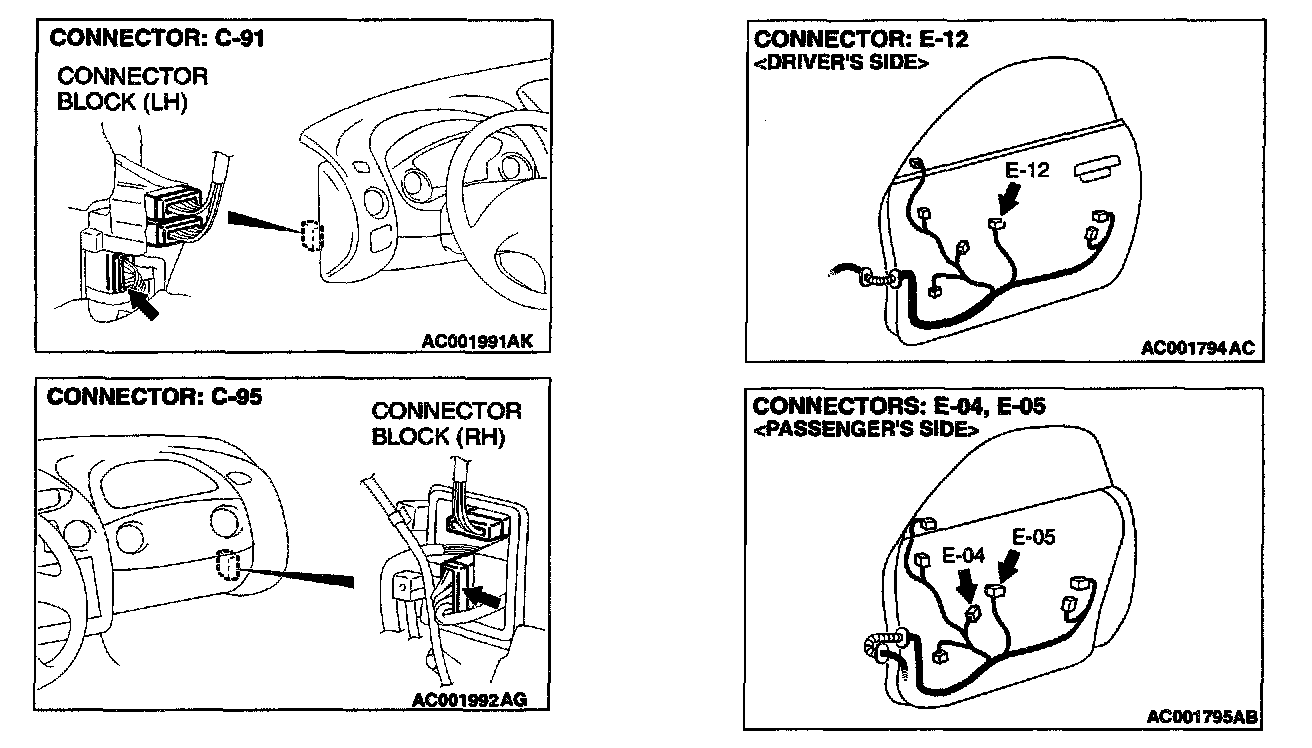

Connectors:

CIRCUIT OPERATION
- When the power window switch is operated up or down, the power window motor operates and opens or closes the door window.

TECHNICAL DESCRIPTION (COMMENT)
The cause may be a malfunction of the power window motor [RH] drive circuit.

TROUBLESHOOTING HINTS
- Malfunction of the power window main switch
- Malfunction of the power window sub-switch
- Malfunction of the power window motor [RH]
- Damaged harness wires or connectors

DIAGNOSIS

STEP 1. Check the power window main switch continuity.

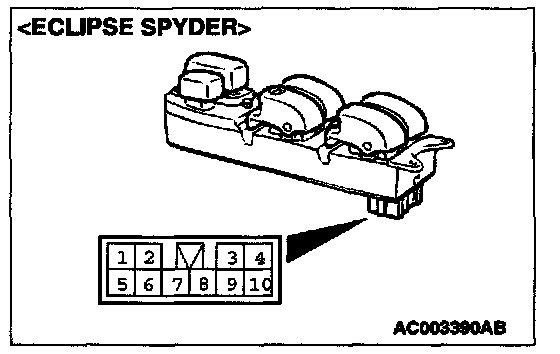

1. Remove the power window main switch.

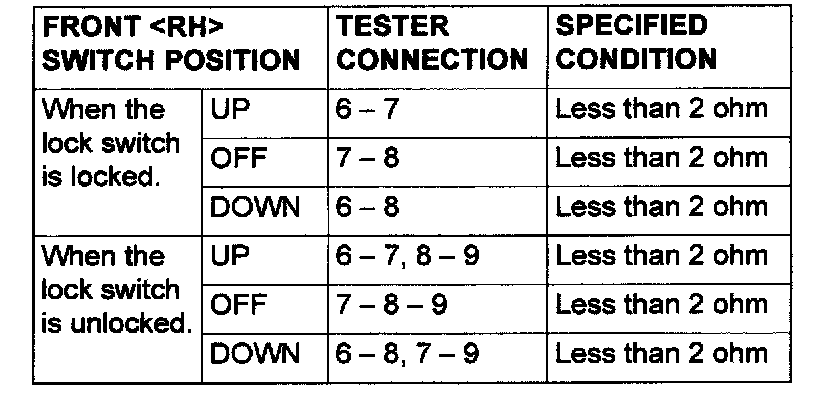

2. Check the continuity when the power window main switch [RH] is turned to the UP position or DOWN position.

Q: Is the power window main switch damaged?

YES: Replace it, then go to Step 6.

NO: Go to Step 2.

STEP 2. Check the power window sub-switch continuity.

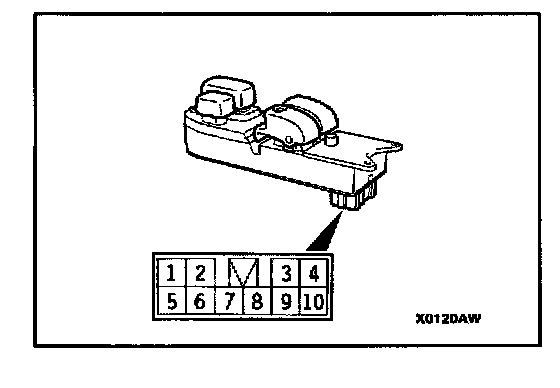

1. Remove the power window sub-switch.

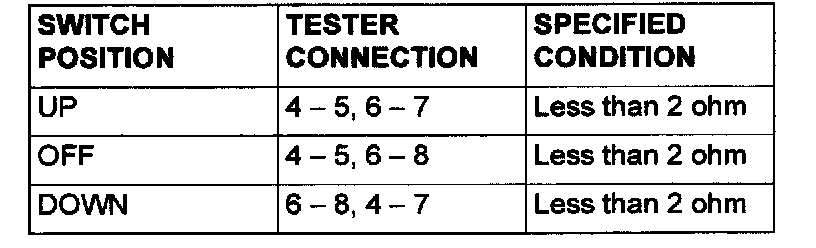

2. Check the continuity when the power window sub-switch is turned to the UP position or DOWN position.

Q: Is the power window sub-switch damaged?

YES: Replace it, then go to Step 6.

NO: Go to Step 3.

STEP 3. Check the power window motor [RH] operation.

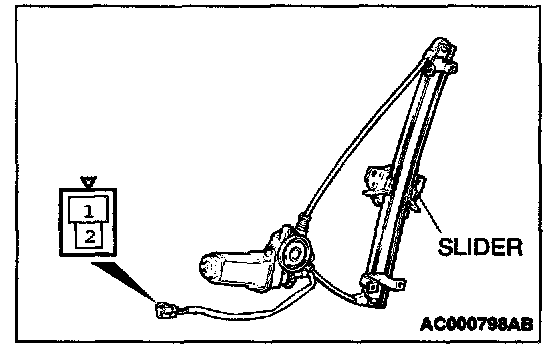

1. Remove the power window regulator [RH].

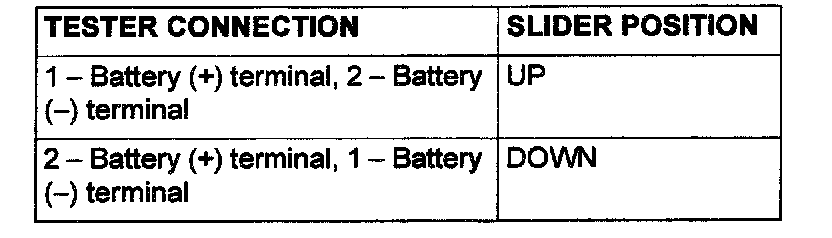

2. Connect a battery directly to the motor terminals and check that the motor runs smoothly.

Q: Is the power window motor [RH] damaged?

YES: Replace it, then go to Step 6.

NO: Go to Step 4.




STEP 4. Check the harness wires between power window sub-switch connector E-05 and power window motor [RH] connector E-04.

Q: Are there any damaged wires between power window sub-switch connector E-05 and power window motor [RH] connector E-04?

YES: Repair them, then go to Step 6.

NO: Go to Step 5.







STEP 5. Check the harness wires between power window main switch connector E-12 and power window sub-switch connector E-05.

Q: Are there any damaged wires between power window main switch connector E-12 and power window sub-switch connector E-05?

YES: Repair them, then go to Step 6.

NO: Go to Step 6.









NOTE: After inspecting intermediate connector C-91 or C-95, inspect the wire. If intermediate connector C-91 or C-95 is damaged, repair or replace it. Refer to Harness Connector Inspection. Then go to Step 6.

STEP 6. Check symptoms

Q: Does the door window [RH] open and close normally?

YES: This diagnosis is complete.

NO: Return to Step 1.
