Control Housing
Part 1 Of 2:
Part 2 Of 2:
DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINT
<> LOCK PIN REMOVAL

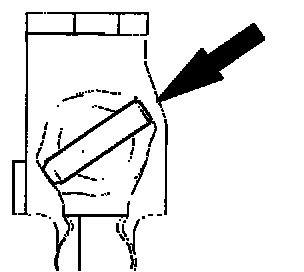

Drive the lock pin out of position from the direction shown.
ASSEMBLY SERVICE POINTS
>>A<< NEEDLE BEARING INSTALLATION

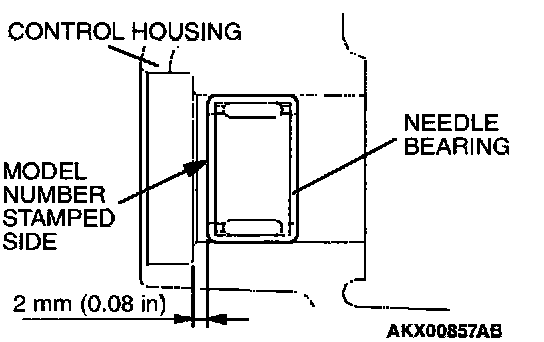

Press fit the needle bearing up the illustrated dimension, while making sure that the model number stamped side is oriented toward the control housing side.
>>B<< OIL SEAL INSTALLATION

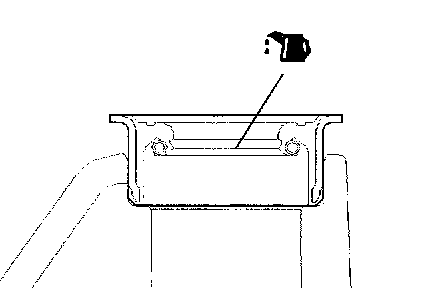

Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4) to the oil seal lip area.
>>C<< AIR BREATHER INSTALLATION

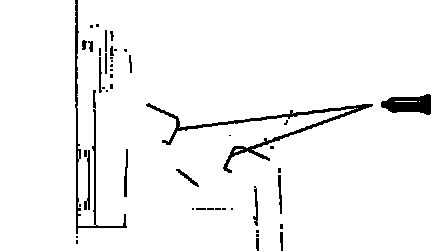

1. Apply sealant (3M) AAD Part Number 8001 or equivalent) to the inserting portion of air breather.

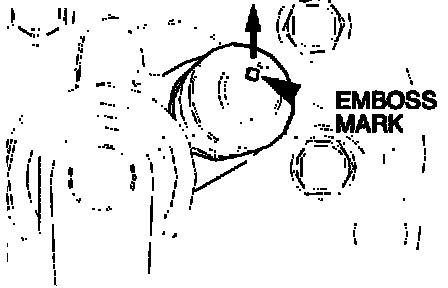

2. Install the air breather so that the embossed mark is in the direction shown in the figure.
>>D<< SPRING PIN INSTALLATION

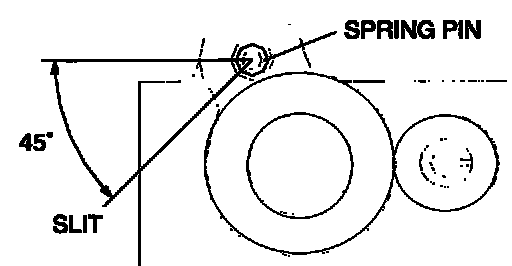

Drive in the spring pin so that the slit is in the direction shown in the figure.
>>E<< SPRING PIN INSTALLATION

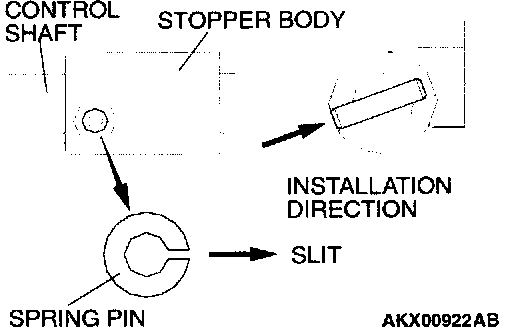

Drive in the spring pin so that the slit is in the direction shown in the figure.
>>F<< LOCK PIN INSTALLATION

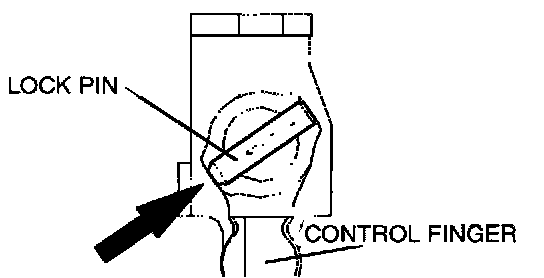

Drive the lock pin in from the direction shown in the figure.
