Hydraulic Hose: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> CLUTCH HOSE REMOVAL

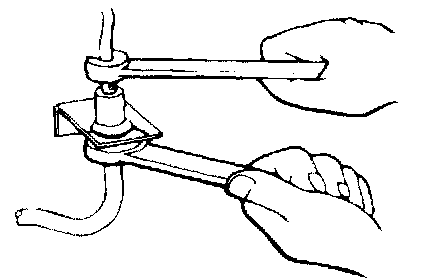

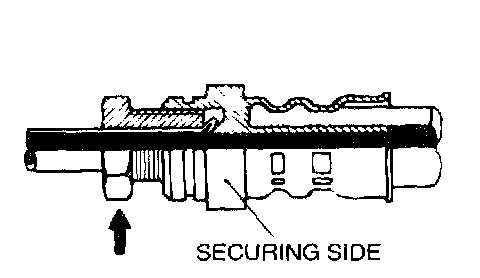

Holding the nut at the clutch hose side, loosen the flare nut on the clutch tube.
INSTALLATION SERVICE POINT
>>A<
1. Temporarily tighten the clutch tube flare nut by hand, and then tighten it to the specified torque, being careful that the clutch hose does not become twisted.
Tightening torque: 15 ± 2 Nm (12 ± 1 ft. lbs.)
2. After tightening the clutch tube flare nut, check to be sure there is no leakage of the clutch fluid.
INSPECTION
^ Check the master cylinder or clutch hose for fluid leakage
^ Check the clutch hose or tube for cracks or clogging.
