Shift Interlock: Service and Repair

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

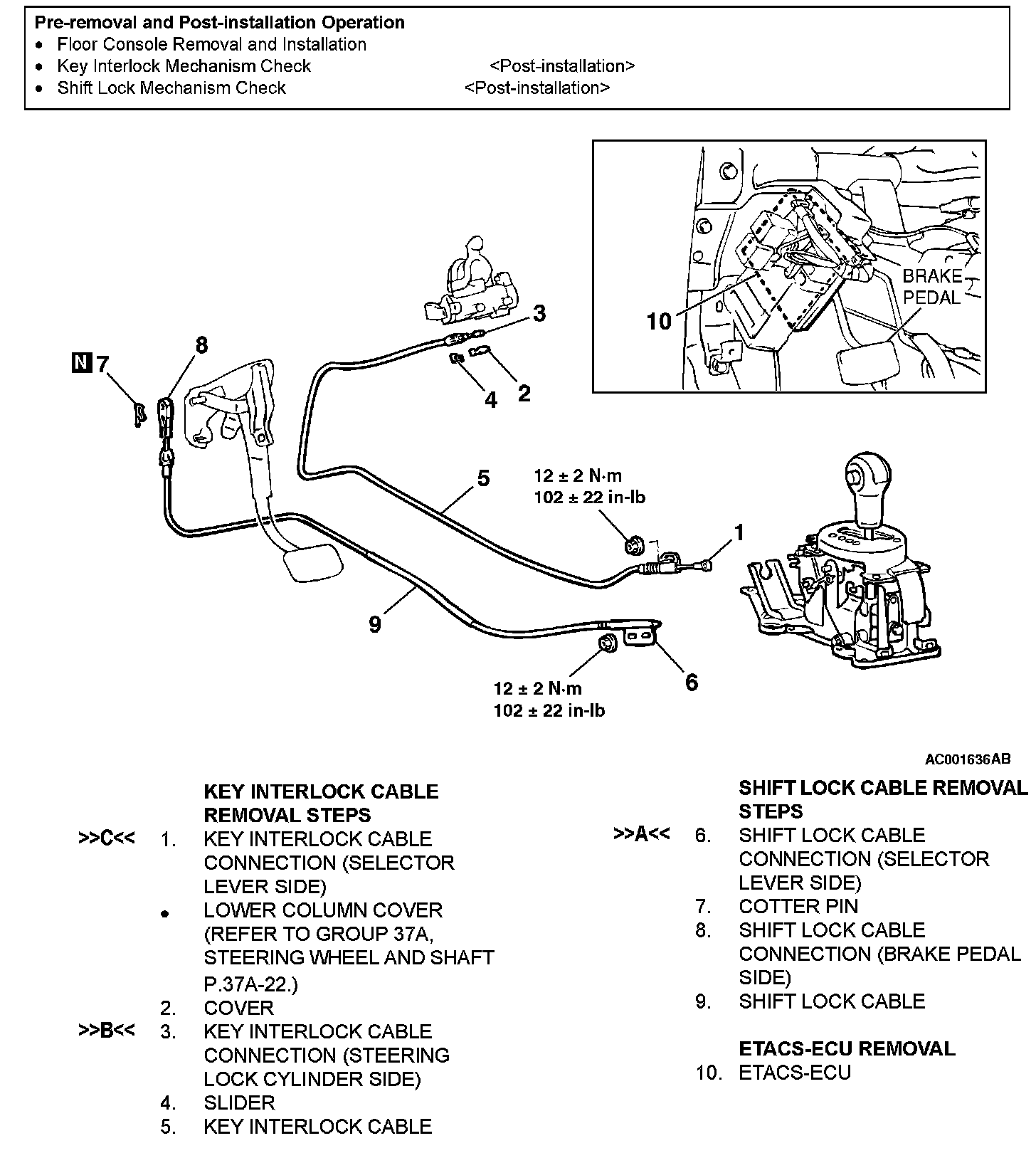

REMOVAL AND INSTALLATION

CAUTION: When removing and installing the key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

INSTALLATION SERVICE POINTS

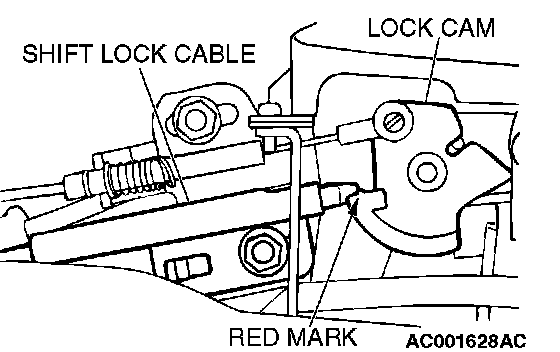

>>A<< SHIFT LOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION
1. Shift the selector lever in the "P" position.





2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red mark on the lock cam.

>>B<< KEY INTERLOCK CABLE (STEERING LOCK CYLINDER SIDE) INSTALLATION
Turn the ignition key to the "LOCK" (OFF) position and install the key interlock cable.

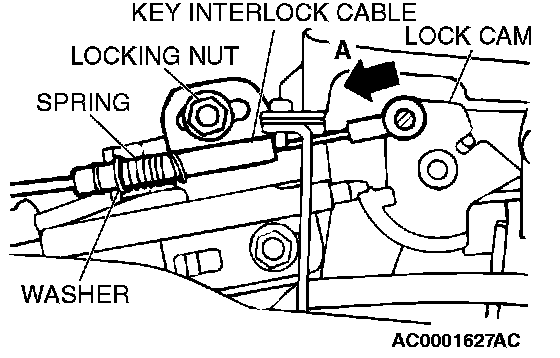

>>C<< KEY INTERLOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION
1. Shift the selector lever to the "P" position.
2. Turn the ignition key to the "LOCK" (OFF) position.





3. Slide the washer and spring toward the lock cam, insert the cable into the stand off bracket and release the spring.
4. Lightly push the key interlock cable into the key interlock cable housing toward the arrow (A) direction until the cable movement stops and the cable end eye is aligned with the shaft on the lock cam. Tighten the locking nut. Snap the cable end eye onto the shaft of the lock cam.
Tightening torque: 12 ± 2 Nm (102 ± 22 inch lbs.)

INSPECTION
Check the cable assembly for function and for damage.
