Output Shaft






DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINTS

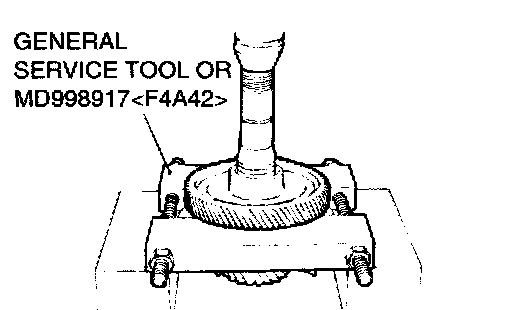

<> TRANSFER DRIVEN GEAR REMOVAL





1. Support the transfer driven gear with general service tool or special tool MD998917 , and then set them on the press.
2. Push down on the output shaft with the press to remove the transfer driven gear.

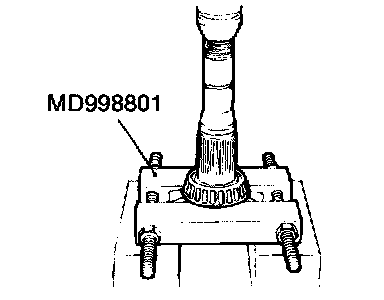

<> TAPER ROLLER BEARING REMOVAL





1. Support the taper roller bearing with the special tool MD998801, and then set them on the press.
2. Push down on the output shaft with the press to remove the tapper roller bearing.

ASSEMBLY SERVICE POINTS

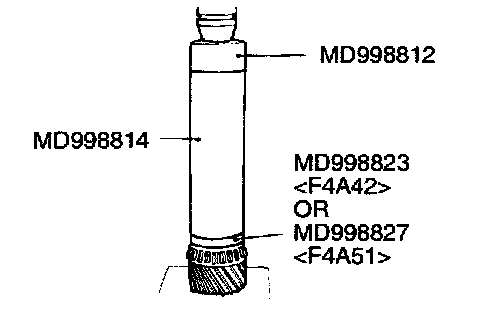

>>A<< TAPER ROLLER BEARING INSTALLATION





1. Set the output shaft on the press support stand.
2. Using special tools MD998823 , MD998827 , MD998812 and MD998814, press install the taper roller bearing.

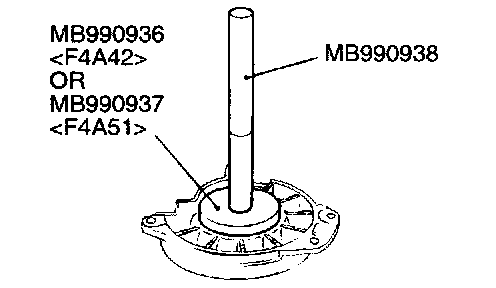

>>B<< OUTER RACE INSTALLATION





Use the special tools MB990936 , MB990937 and MB990938 to tap the outer race in the bearing retainer.

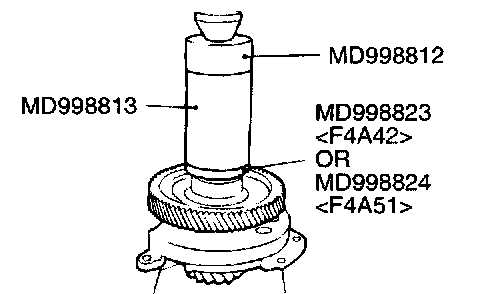

>>C<< TRANSFER DRIVEN GEAR INSTALLATION





1. Set the output shaft on the press support stand.
2. Using special tools MD998823 , MD998824 , MD998812 and MD998813, press install the transfer driven gear.
