Trailing Arm: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: * Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

INSTALLATION SERVICE POINT

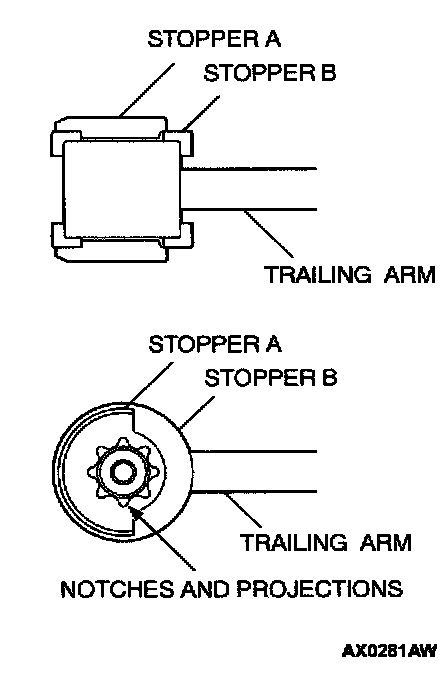

]]A[[ STOPPER B/STOPPER A INSTALLATION





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the trailing arm for bending or damage.
