REMOVAL AND INSTALLATION

CAUTION: * Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

REMOVAL SERVICE POINTS

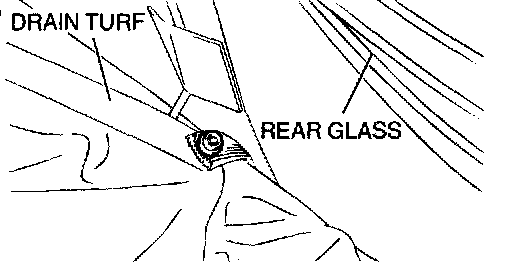

[[A]] DRAIN TURF MOUNTING HOOK REMOVAL ECLIPSE SPYDER





Remove the drain turf mounting hook so that the cap can be seen from the passenger compartment.

[[B]] BRAKE CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, so that it does not fall.

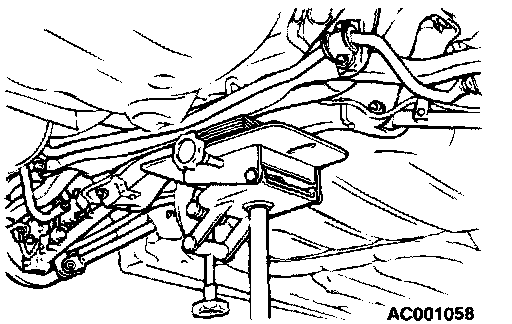

[[C]] CROSSMEMBER MOUNTING NUT REMOVAL





Support the crossmember with a garage jack or transmission jack to remove the crossmember mounting nut.

INSTALLATION SERVICE POINT

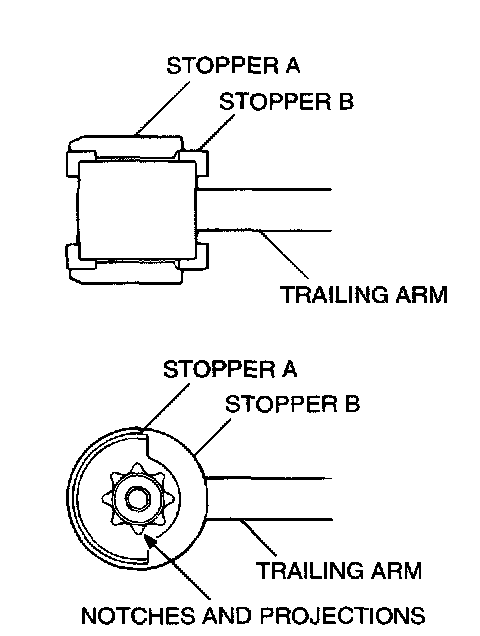

]]A[[ STOPPER B/STOPPER A INSTALLATION





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
Check crossmember for cracks or other damage.
