Overhaul
Disassembly And Assembly:
DISASSEMBLY SERVICE POINTS
Snap Ring/Stop Ring Removal:
<> ARMATURE AND BALL REMOVAL
CAUTION: When removing the armature, take care not to lose the ball (which is used as a bearing) in the armature end.
Snap Ring/Stop Ring Removal:
<> SNAP RING AND STOP RING REMOVAL

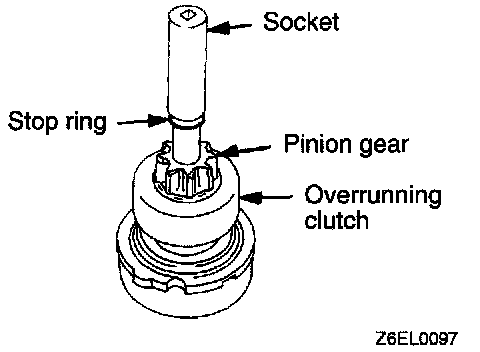

1. Press a long socket wrench of appropriate size to the stop ring. Then tap the socket wrench to remove the stop ring to the pinion gear side.

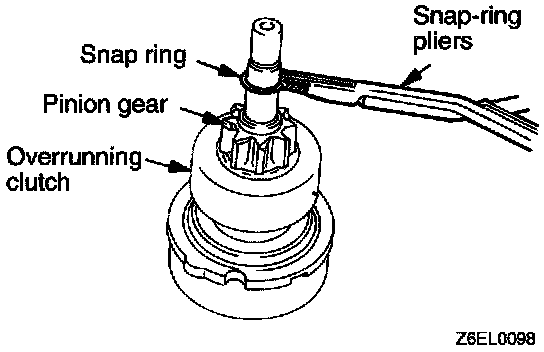

2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.
