Oil Pan, Engine

ENGINE MECHANICAL

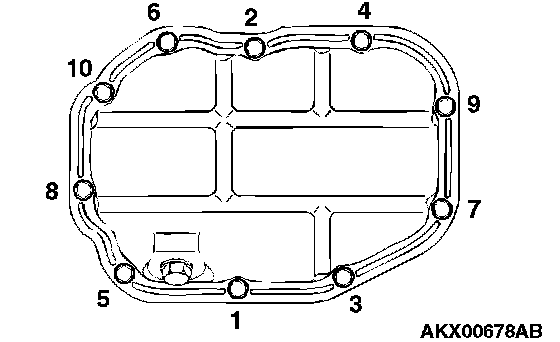

Lower oil pan attaching bolt 11 ± 1 Nm (96 ± 8 inch lbs.)
Oil pan bolt hole cover attaching bolt 11 ± 1 Nm (96 ± 8 inch lbs.)
Oil pan drain plug 39 ± 5 Nm (29 ± 4 ft. lbs.)

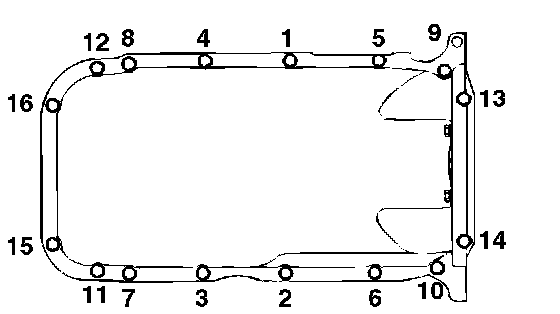

Upper oil pan attaching bolt
M6 5.9 ± 1.0 Nm (52 ± 9 inch lbs.)
M10 35 ± 6 Nm (26 ± 4 ft. lbs.)








ENGINE OVERHAUL
Oil pan, lower bolt 11 ± 1 Nm (95 ± 9 inch lbs.)
Oil pan, upper bolt 5.9 ± 1 Nm (52 ± 9 inch lbs.)
