Windshield Wiper and Windshield Washer Switch Check
WINDSHIELD WIPER AND WINDSHIELD WASHER SWITCH CHECK1. Windshield wiper and washer switch

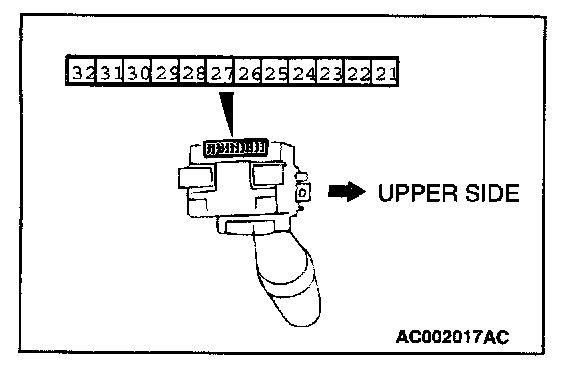

2. Windshield intermittent wiper interval adjusting knob Measure the resistance value at terminal numbers 27 and 28. The resistance value should rise smoothly from approximately 0 ohm ("FAST" position) to approximately 1 kohms ("SLOW" position).
