Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Vehicle Speed Sensor/Transducer - Cruise Control >> Service and Repair

Vehicle Speed Sensor/Transducer - Cruise Control: Service and Repair

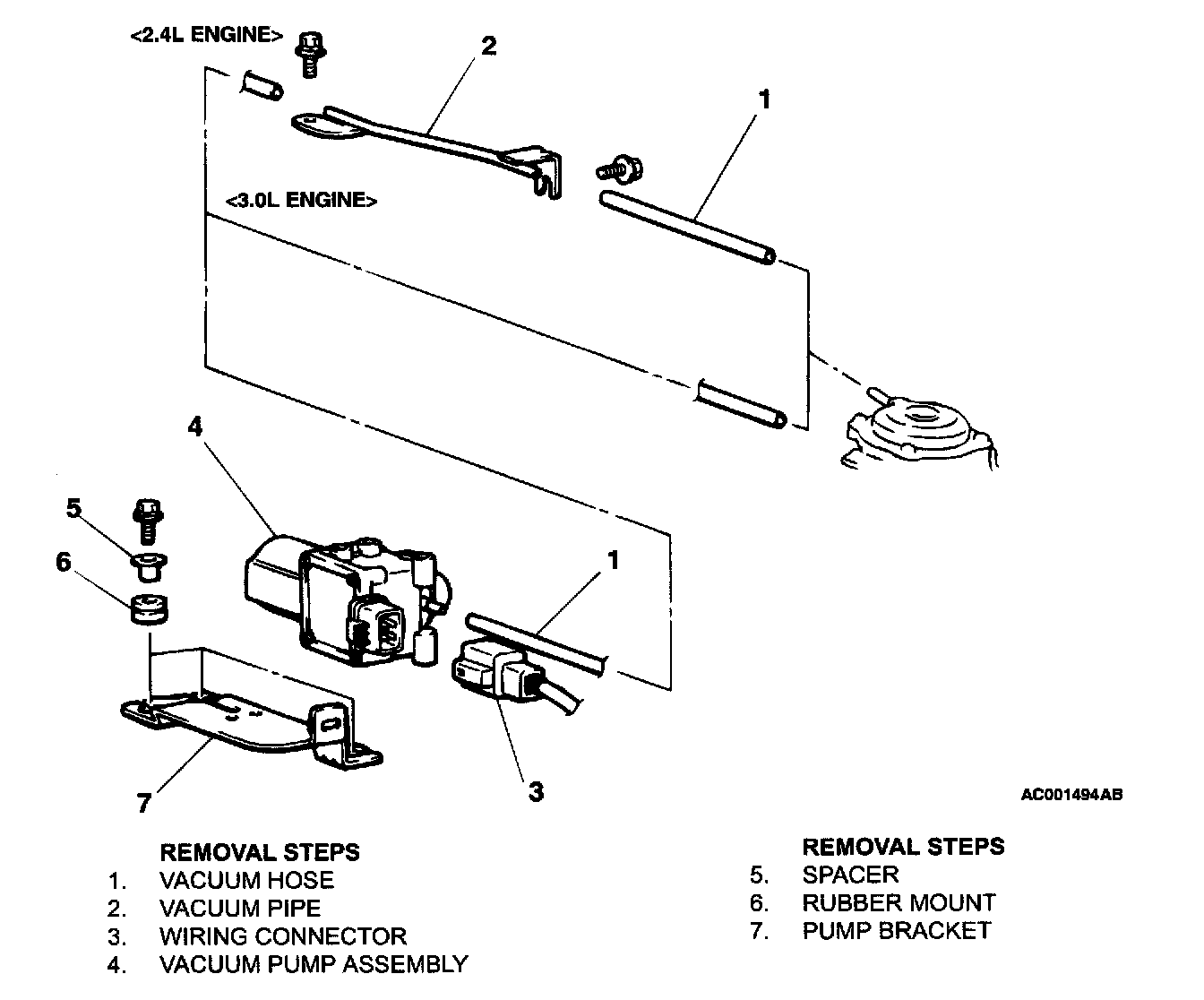

Actuator:

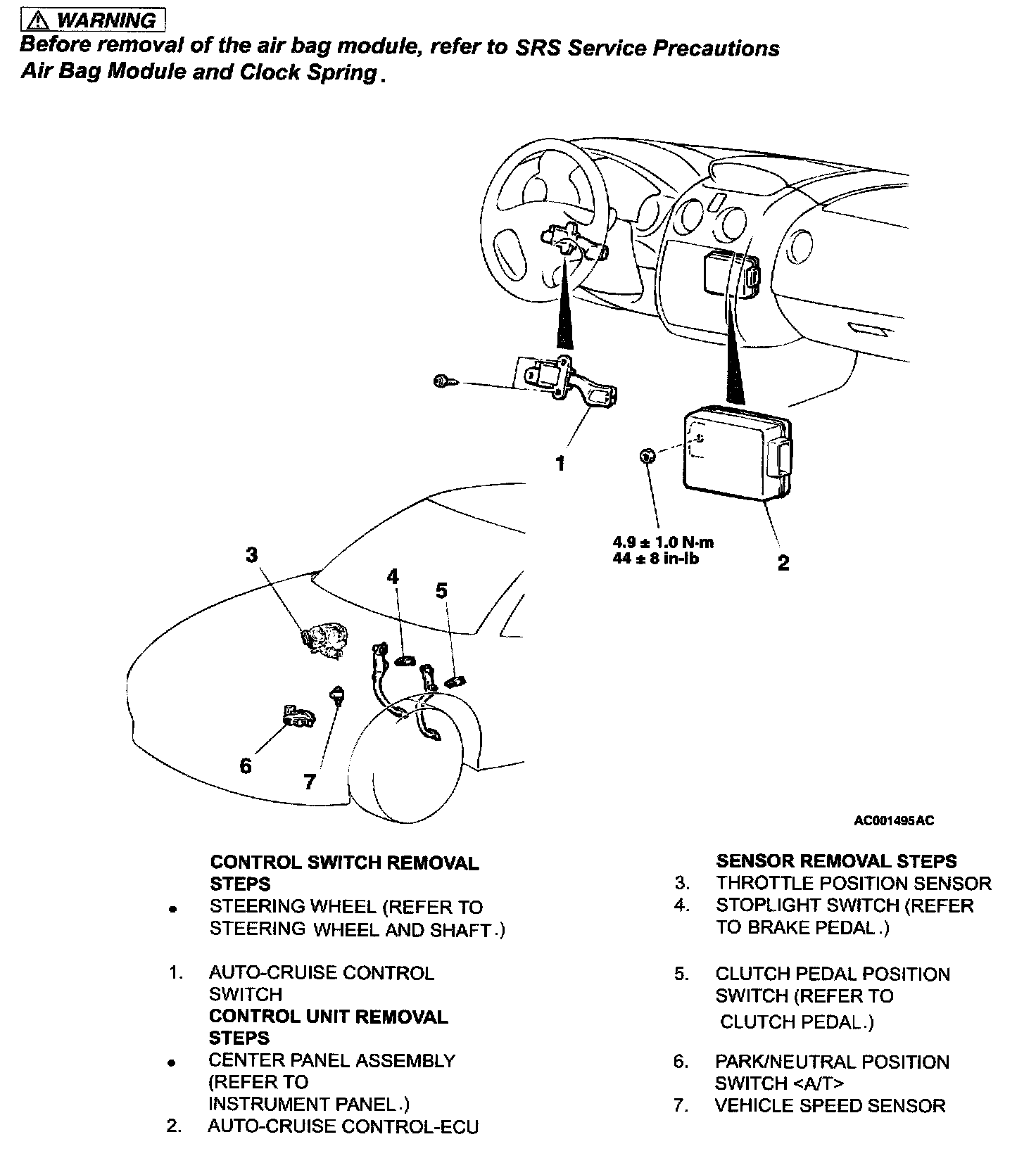

Switches, Control Unit And Sensors:
