Convertible Top Switch: Testing and Inspection

Convertible Top Bypass Switch Check:

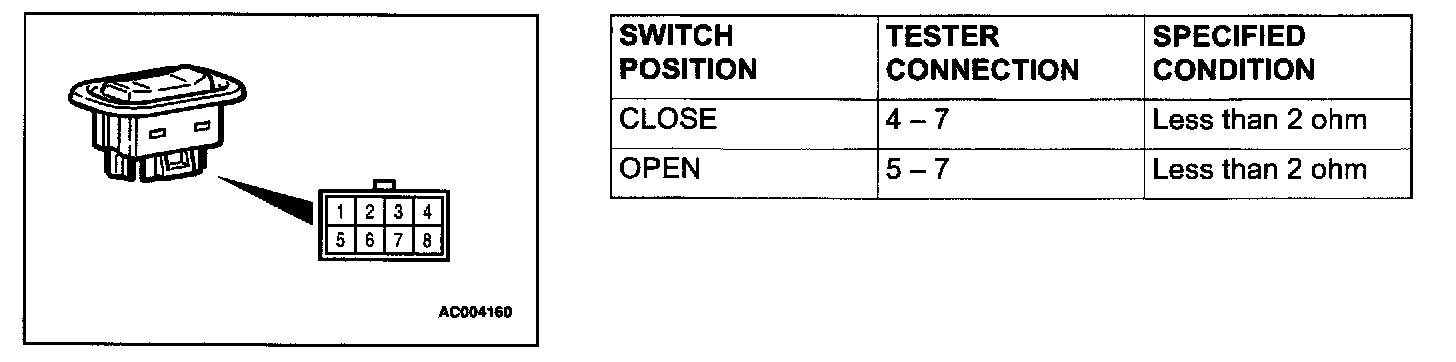

Convertible Top Switch Check:
