Inspection Procedure 2

The system does not accept the remote controlled radio switch (RH) only.

CIRCUIT OPERATION
- If the remote controlled radio switch is operated, the output voltage will change. The radio and CD player operates according to the change on the voltage.

TECHNICAL DESCRIPTION (COMMENT)
If the system does not accept the remote controlled radio switches, the remote controlled radio switch assembly, the clock spring or the radio and CD player may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the remote controlled radio switch
- Malfunction of the radio and cd player
- Malfunction of the clock spring
- Damaged wiring harness or connectors

DIAGNOSIS

STEP 1. Check the remote controlled radio switch (RH).

1. Remove the airbag module (Refer to Air Bag Module and Clock Spring).

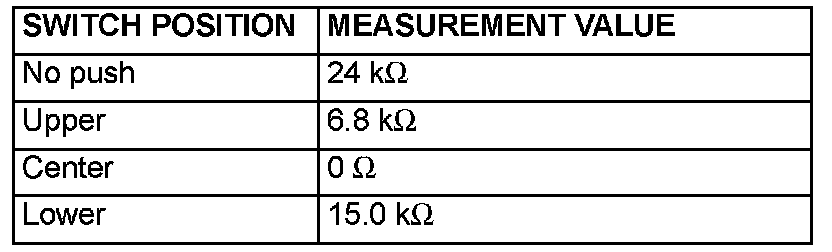

2. Check the continuity by operating the remote controlled radio switch (RH) in each position.

Q: Is the remote controlled radio switch normal?

YES: Go to Step 2.

NO: Replace the remote controlled radio switch (RH).

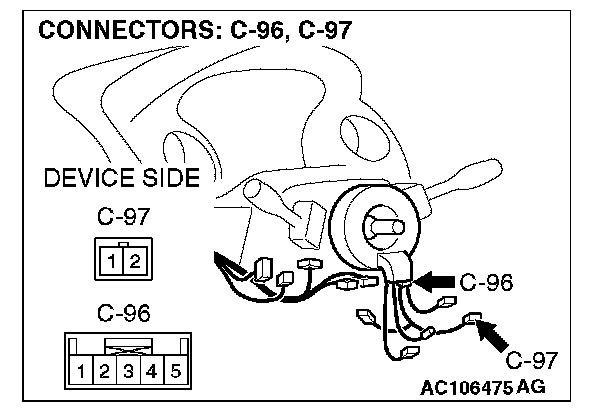

STEP 2. Check the switch (RH) connector C-97 and clock spring connector C-96 for damage.

Q: Is remote controlled radio switch (RH) connector C-97 and clock spring connector C-96 in good condition?

YES: Go to Step 3.

NO: Repair or replace it. Refer to Harness Connector Inspection. The remote controlled radio switch (RH) should work normally.

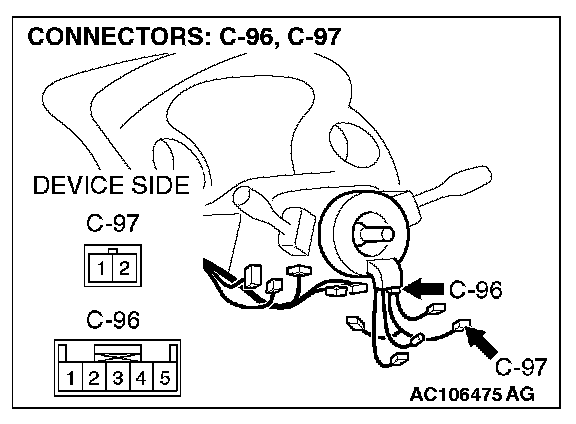

STEP 3. Check the wiring harness between remote controlled radio switch connector C-97 (terminals 1 and 2) and clock spring connector C-96 (terminals 4 and 5).

Q: Are the wiring harness between emote controlled radio switch connector C-97 (terminals 1 and 2) and clock spring connector C-96 (terminals 4 and 5) in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. The remote controlled radio switch (RH) should work normally.
