Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

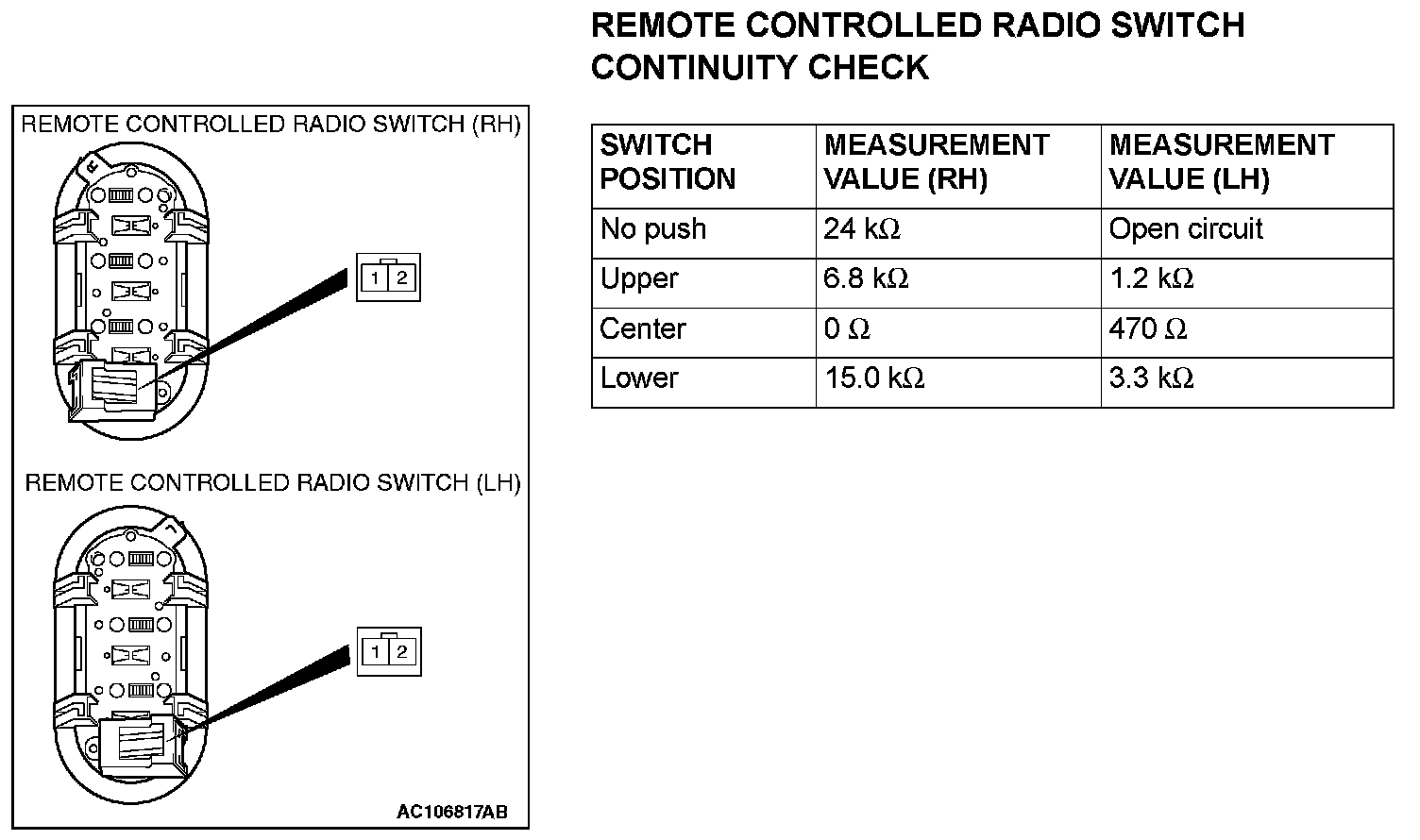

Remote Controlled Radio Switch Continuity Check:
