Spark Plug Cable Resistance Check

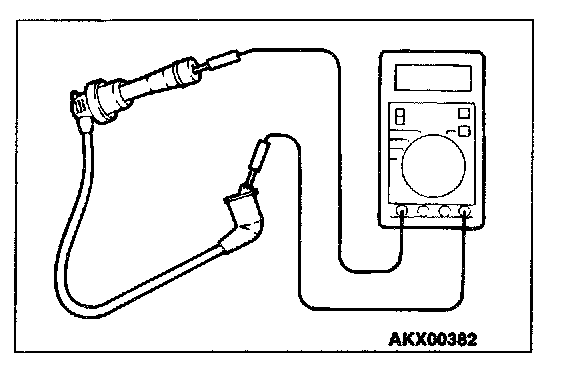

Measure the resistance of the all spark plug leads.
1. Check the cap and coating for cracks.
2. Measure the resistance.

Limit: 19 kOhm
