Ignition Coil

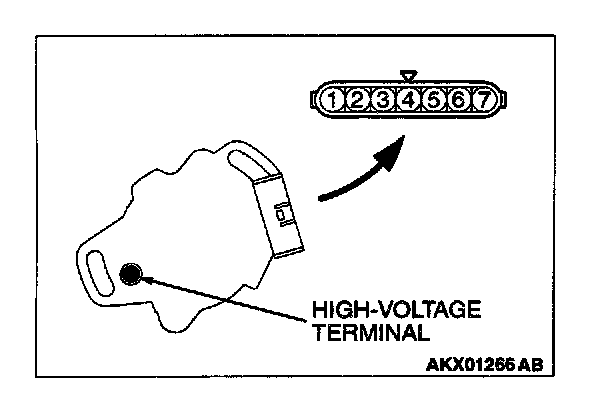

1. Measurement of the primary coil resistance Measure the resistance between connector terminals 1 and 2 of the distributor.

Standard value: 0.56 - 0.68 Ohm

2. Measurement of the secondary coil resistance Measure the resistance between the high-voltage terminal and connector terminal 1.

Standard value: 9.4 - 12.8 kOhm
