Fuel Tank: Service and Repair

FUEL TANK REMOVAL AND INSTALLATION

Fuel Tank Part 1:

Fuel Tank Part 2:

REMOVAL SERVICE POINT

<> CAP REMOVAL

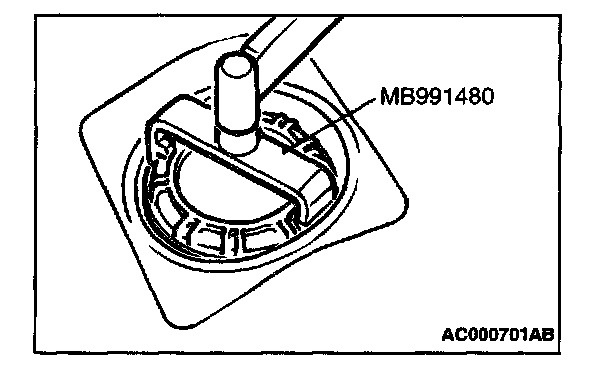

Use special tool MB991480 to remove the cap.

INSTALLATION SERVICE POINTS

>>A<< CAP INSTALLATION

CAUTION: Install the packing to the fuel tank, and then install the fuel pump module to the fuel tank. Installing the packing to the fuel pump module will damage the packing lip when installing the fuel pump module to the fuel tank, and fuel leakage will occur.

1. Check that the fuel tank is not damaged or deformed, and then securely install the packing to the fuel tank.

NOTE: If the packing is damaged or deformed, replace with new packing.

CAUTION:
- Do not tilt the fuel pump module when installing.

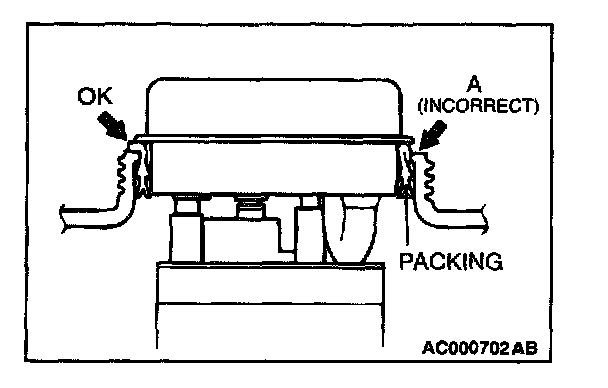

- The packing should not be folded over as shown by "A" in the illustration.

2. Apply soap water to the inside of the packing, and then install the fuel pump module.






CAUTION: When tightening, be careful not to let the fuel pump module turn together with the cap. If the mating marks are misaligned, the float may measure a remaining amount of fuel in correctly, causing the low fuel warning light to malfunction.

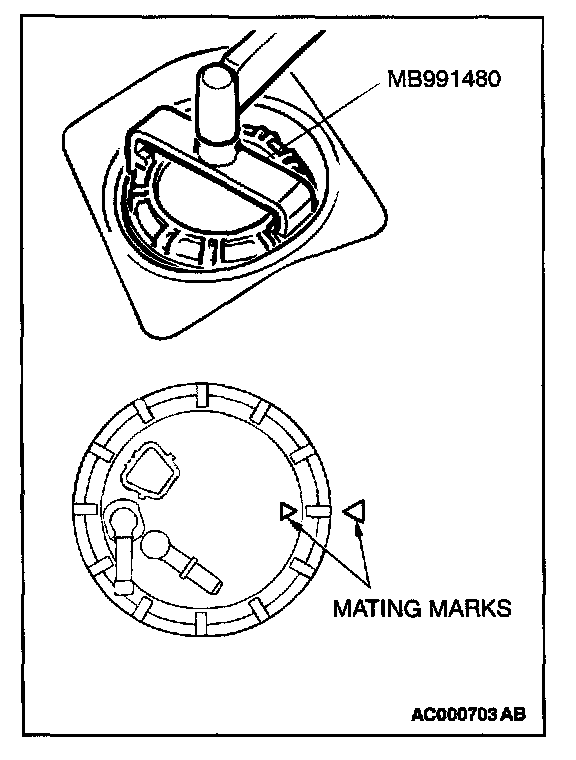

3. Use special tool MB991480 to align the mating marks on the fuel tank and fuel pump module, and tighten the cap.

>>B<< HIGH-PRESSURE FUEL HOSE INSTALLATION






CAUTION: Connect the high-pressure hose, and then pull it gently in the direction of removal to check that the hose is firmly connected.

Apply clean engine oil to the tips of the main pipe nozzle and the fuel main pipe, and connect quick-joint connector of the high-pressure fuel hose to them.
