Injector Check

INJECTOR CHECK



1. Disconnect the injector intermediate connector.

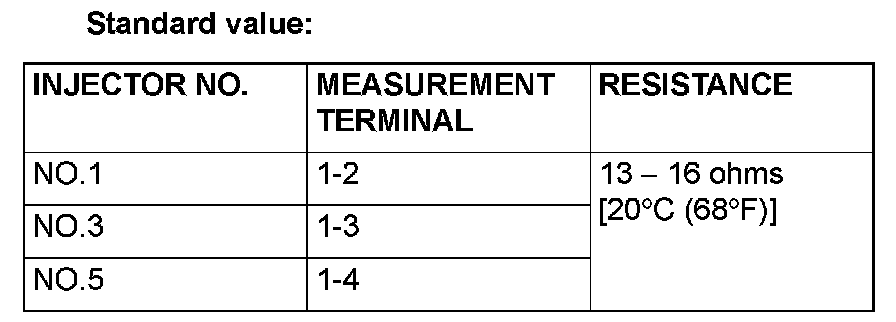

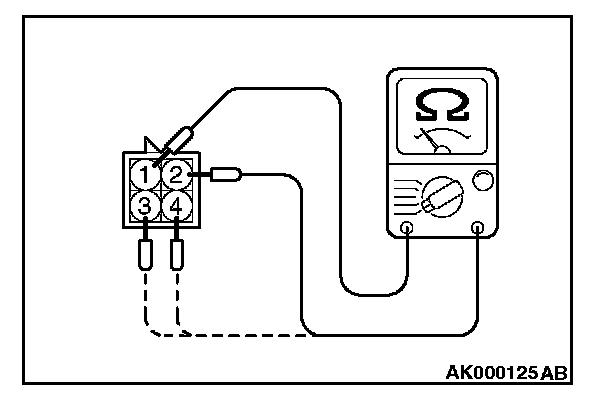

2. Measure the resistance between the injector intermediate connector terminals.

3. Connect the injector intermediate connector.

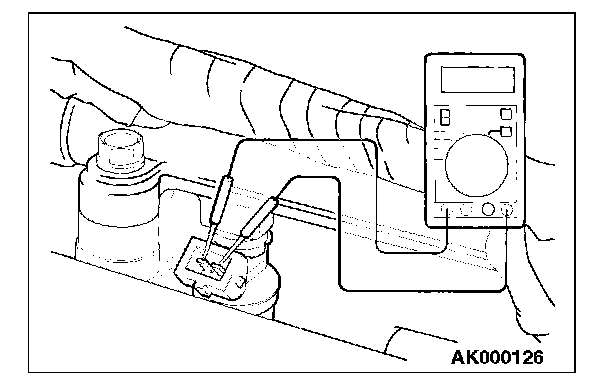

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 13 - 16 Ohms [at 20 °C (68 °F)]

3. Connect the injector connector.
