Vacuum Control Valve Inspection

VACUUM CONTROL VALVE CHECK

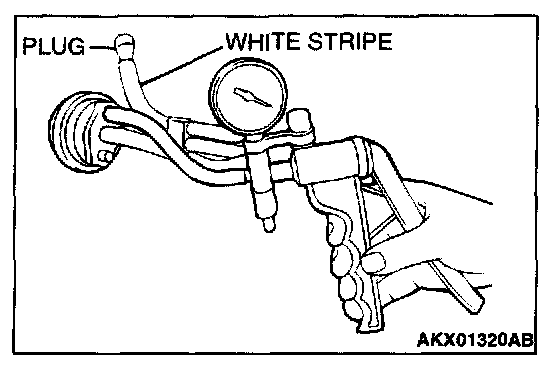

1. Disconnect the vacuum hose (white stripe) from the vacuum control valve and connect the hand vacuum pump to the vacuum control valve.
2. Plug the end of the removed vacuum hose.
3. Start the engine and run at idle.

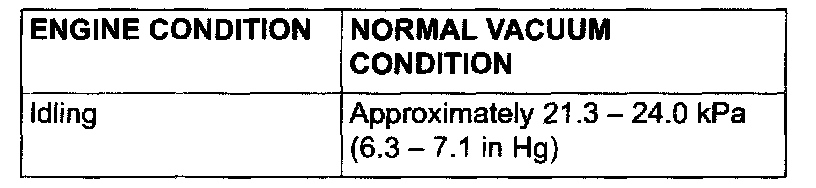

4. As described in the chart, check the vacuum condition.
