Exhaust Gas Recirculation System Check

EGR SYSTEM CHECK

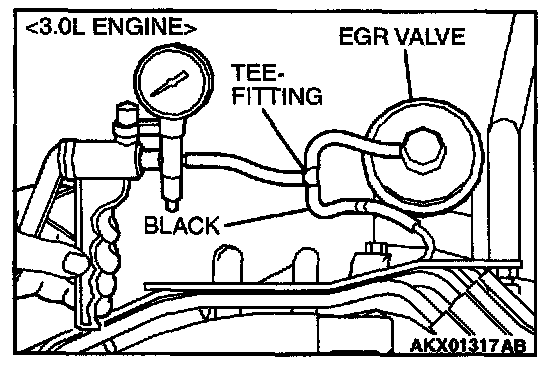

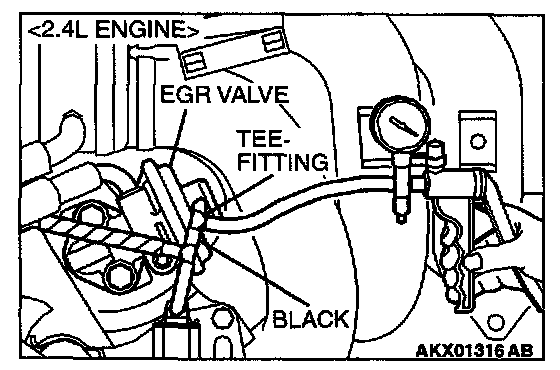

1. Disconnect the vacuum hose (black) from the EGR valve, and then connect a hand vacuum pump via the Tee-fitting.

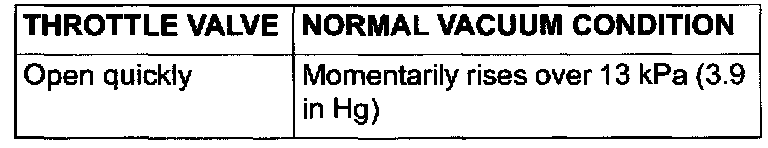

2. Start the engine. As described in the chart, check the vacuum condition when the throttle valve is opened suddenly (rewing) during cold and hot engine conditions.




When engine is cold
[Engine coolant temperature: 20 °C (68 °F) or less]




When engine is hot
[Engine coolant temperature: 80 °C (176 °F) or more]








3. Stop the engine. Remove the Tee-fitting and the hand vacuum pump.

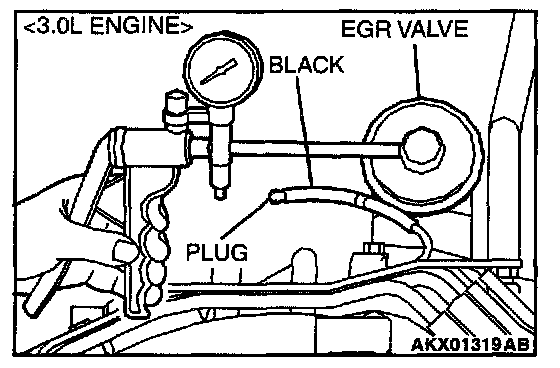

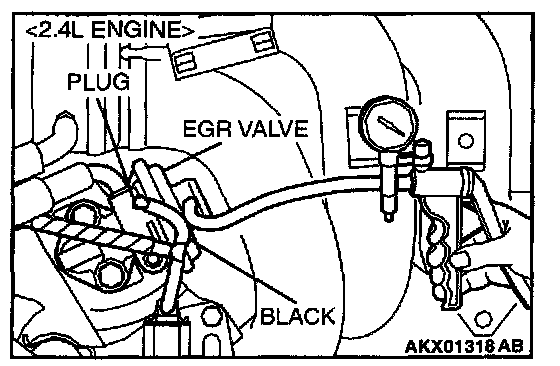

4. Connect the hand vacuum pump directly to the EGR valve.
5. Start the engine and run at idle until warm.
6. The engine idling speed should be rough when a vacuum of 29 kPa (8.7 in.Hg) or more is applied to the EGR valve.
7. If engine idles rough, EGR passage is open and the system is OK. If engine idle is not rough, the EGR passage and the valve must be checked for restrictions. Perform the EGR valve check. Then repeat the EGR system check.
