Inspection Procedure J-1

Headlight, Tail Light : Tail Lights does not Illuminate Normally.

NOTE: This troubleshooting requires use of scan tool MB991958 and SWS monitor kit MB991862. For details of how to use the SWS monitor, refer to "How to use SWS monitor." How To Use SWS Monitor

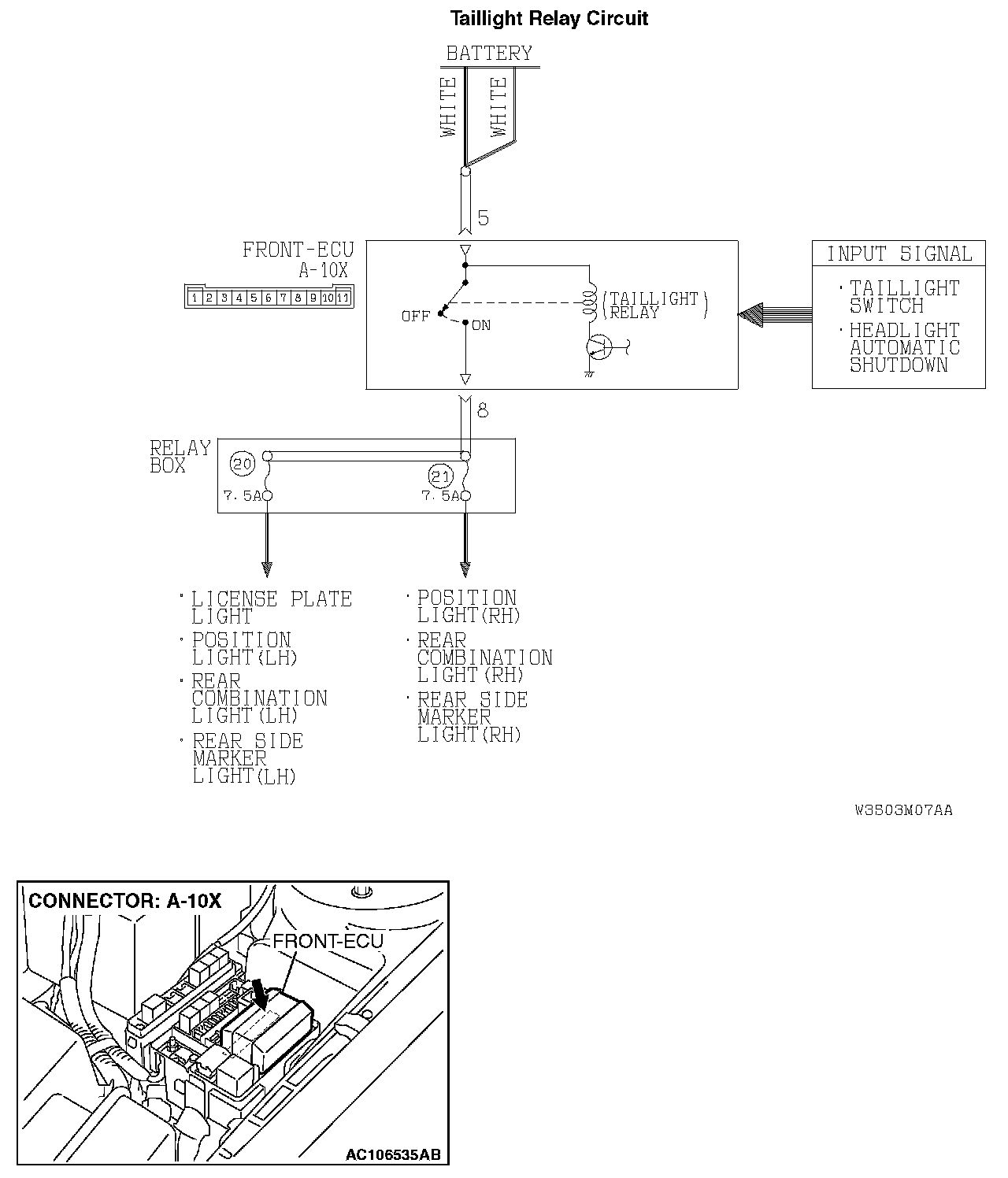

Taillight Relay Circuit:






CIRCUIT OPERATION
When the lighting switch is set to "TAIL" position, the "TAIL" signal is sent through the column-ECU (incorporated in the column switch) to the front-ECU. IF the front-ECU receives the "TAIL" signal through the column-ECU, the front-ECU turns on the tail light relay (incorporated in the front-ECU), thus causing the tail lights to illuminate.

TECHNICAL DESCRIPTION (COMMENT)
If the tail lights do not illuminate normally, the column switch or the front-ECU may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the column switch (tail light switch)
- Malfunction of the front-ECU
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicles communication interface
- MB991827: MUT-III USB cable
- MB991911: MUT-III Main harness B
- MB991813: SWS monitor kit
- MB991806: SWS monitor cartridge
- MB991812: SWS monitor harness (for column-ECU)
- MB991922: Probe harness

STEP 1. Use scan tool MB991958 to select "ECU COMM Check" on the SWS monitor display.
Check the following ECUs:
- Column-ECU
- Front-ECU

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect special tool MB991911 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on special tool MB991824.

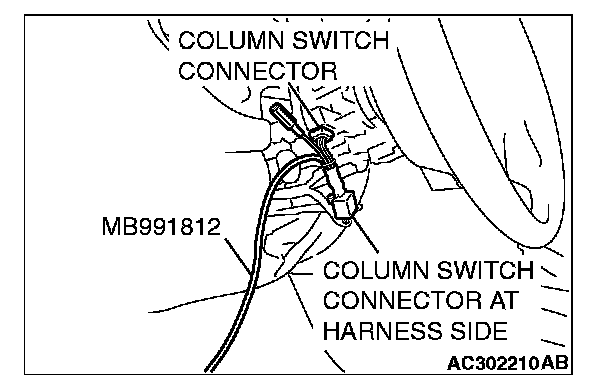

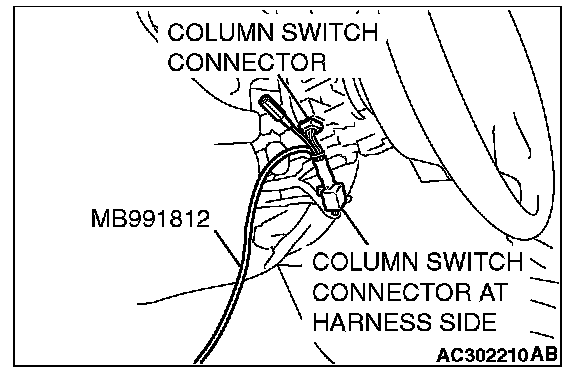

1. Connect the special tool. Refer to "How to connect SWS monitor." How to Connect SWS Monitor
2. Turn the ignition switch to the "LOCK" (OFF) position.
3. Operate scan tool MB991958 according to the procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System Select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

4. Scan tool MB991958 should show "OK" on the "ECU COMM Check" menus for both the "COLUMN ECU" and "FRONT ECU" menus.

Q: Are "OK" displayed on the "COLUMN ECU" and "FRONT ECU" menu?

"OK" are displayed for all the items: Go to Step 2.

"NG" is displayed on the "COLUMN ECU" menu: Refer to Inspection Procedure A-2 "Communication with column switch (column-ECU) is impossible."

"NG" is displayed on the "FRONT ECU" menu: Refer to Inspection procedure A-4 "Communication with front-ECU is impossible."

STEP 2. Check the input signal by using "FUNCTION DIAG." menu of the SWS monitor.
Check the input signals from the following switches:
- Ignition switch: ON
- Lighting switch: TAIL

NOTE: Turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function.







1. Operate scan tool MB991958 according to the procedure below to display "TAILLIGHT."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Function Diag."
f. Select "LIGHTING."
g. Select "TAILLIGHT."

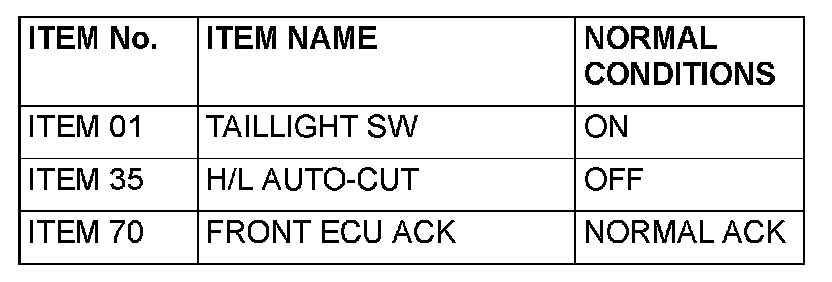

2. Check that normal conditions are displayed on the items described in the given table.

Q: Does the scan tool display the items "TAILLIGHT SW", "H/L AUTO-CUT" and "FRONT ECU ACK" as normal condition?

Normal conditions are displayed for all the items: Go to STEP 3.

The scan tool does not show the respective normal condition for item "TAILLIGHT SW": Refer to Inspection Procedure O-7 "ETACS-ECU does not receive a signal from the tail light switch."

The scan tool does not show the respective normal condition for item "H/L AUTO-CUT": Refer to Inspection Procedure J-9 "The headlight automatic shutdown function does not work normally."

The scan tool does not show the respective normal condition for item "FRONT ECU ACK": Replace the front-ECU. Check that the tail lights illuminate normally.

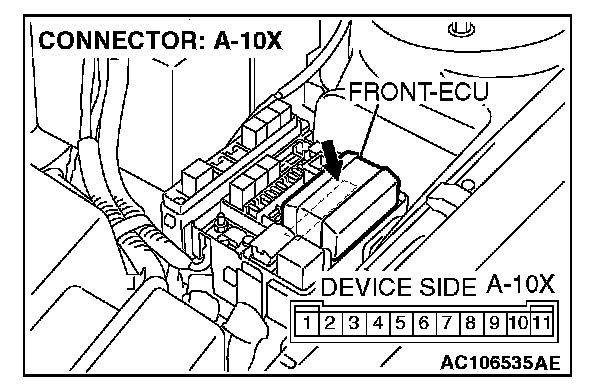

STEP 3. Measure at front-ECU connector A-10X in order to check the battery circuit of power supply system to the front-ECU.

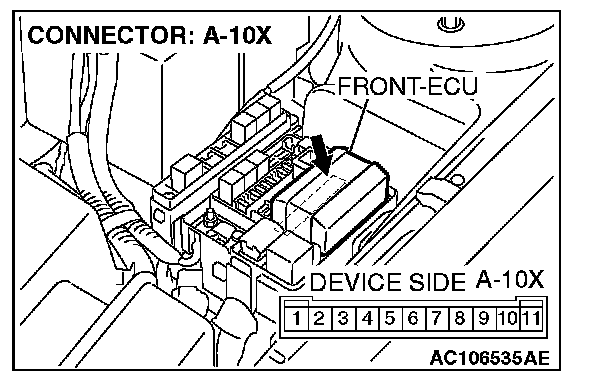

1. Disconnect front-ECU connector A-10X, and measure at the relay box side.

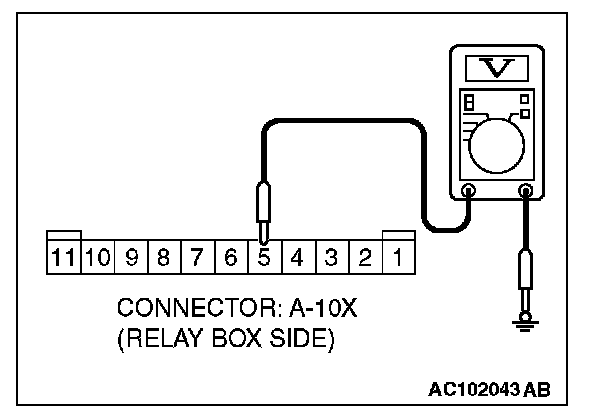

2. Measure the voltage between terminal 5 and ground.
- The measured value should be approximately 12 volts (battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES: Replace the front-ECU. Check that the tail lights illuminate normally.

NO: Go to Step 4.

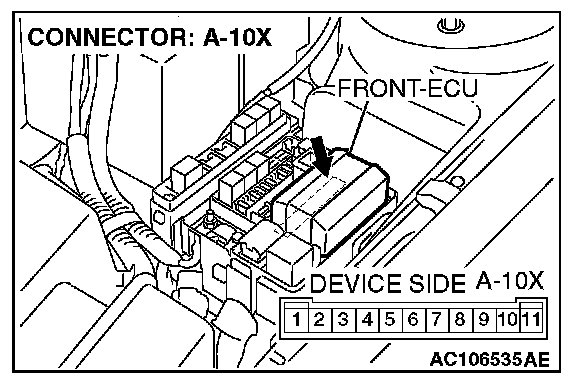

STEP 4. Check the front-ECU connector A-10X for damage.

Q: Is front-ECU connector A-10X in good condition?

YES: Go to Step 5.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the tail lights illuminate normally.




STEP 5. Check the wiring harness between front-ECU connector A-10X (terminal 5) and the battery.

Q: Is the wiring harness between front-ECU connector A-10X (terminal 5) and the battery in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. Check that the tail lights illuminate normally.
