Inspection Procedure F-2

Sunroof: Any of the Sunroof Switch Positions is Defective.

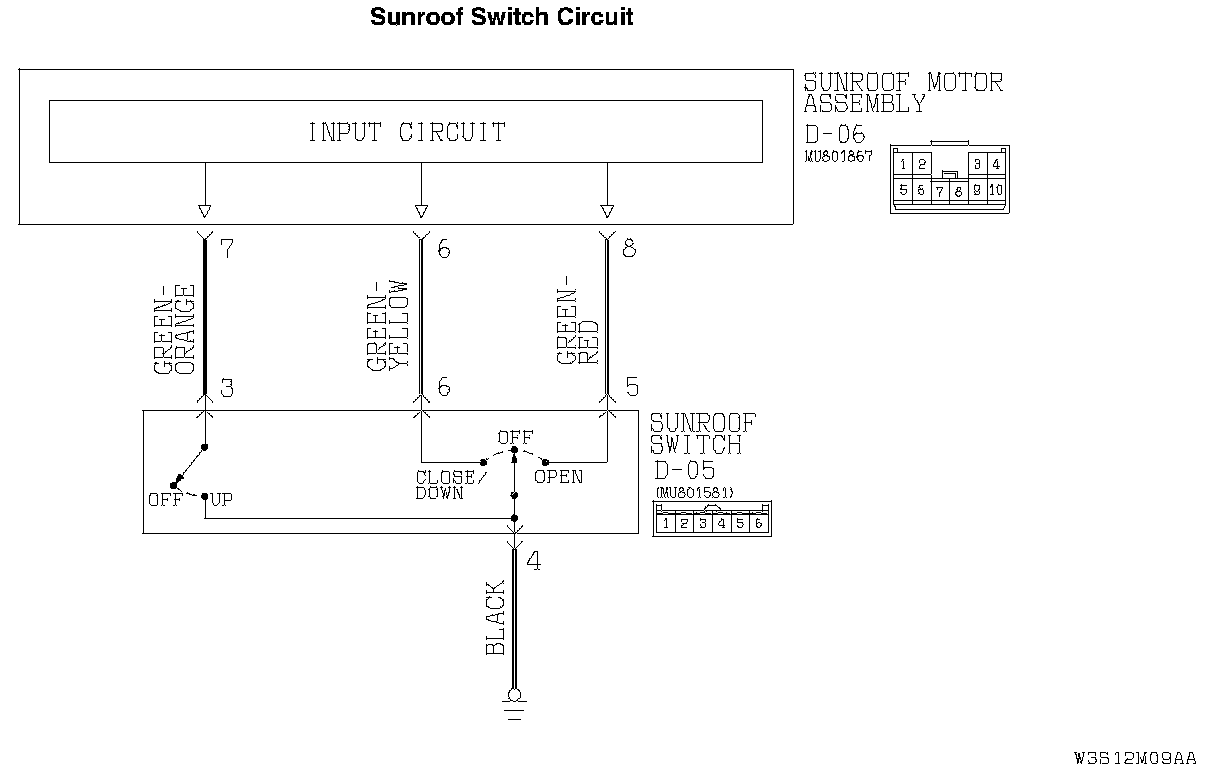

Sunroof Switch Circuit:

TECHNICAL DESCRIPTION (COMMENT)
The sunroof switch or the sunroof motor assembly may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the sunroof switch
- Malfunction of the sunroof motor assembly
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Test Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicles communication interface
- MB991827: MUT-III USB cable
- MB991911: MUT-III Main harness B

Check the input signal (by using the Pulse check mode of the monitor).
Check the input signals from the sunroof switch.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.




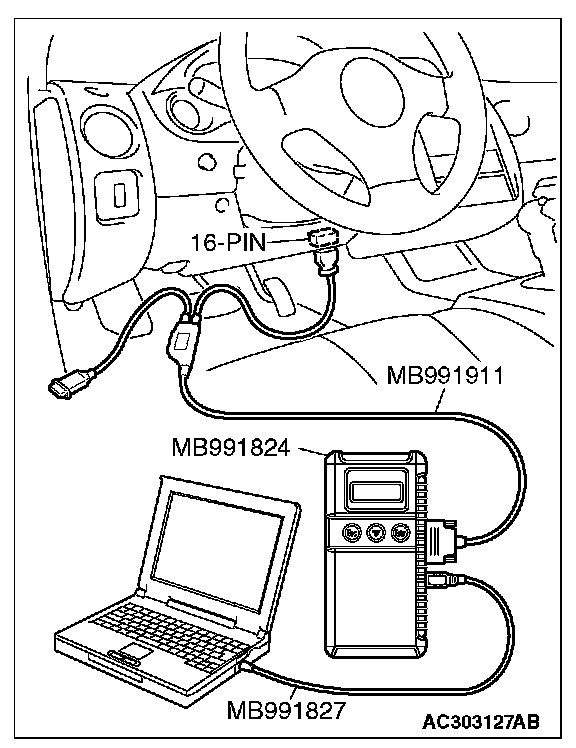

1. Connect scan tool MB991958 to the data link connector.
2. Operate scan tool MB991958 according to the procedure below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

3. When each function of the sunroof switch is operated (turned on), check that scan tool MB991958 sounds.

Q: Does scan tool MB991958 sound when the sunroof switch is operated?

YES: Replace the sunroof motor assembly. Check that the sunroof works at all positions normally.

NO: Refer to Inspection Procedure O-10 "ETACS-ECU does not receive a signal from "UP", "OPEN" or "CLOSE/DOWN" switch."
