Inspection Procedure D-5

Power Window: Power Window (RH) does not Work by Operating Power Window Main Switch.

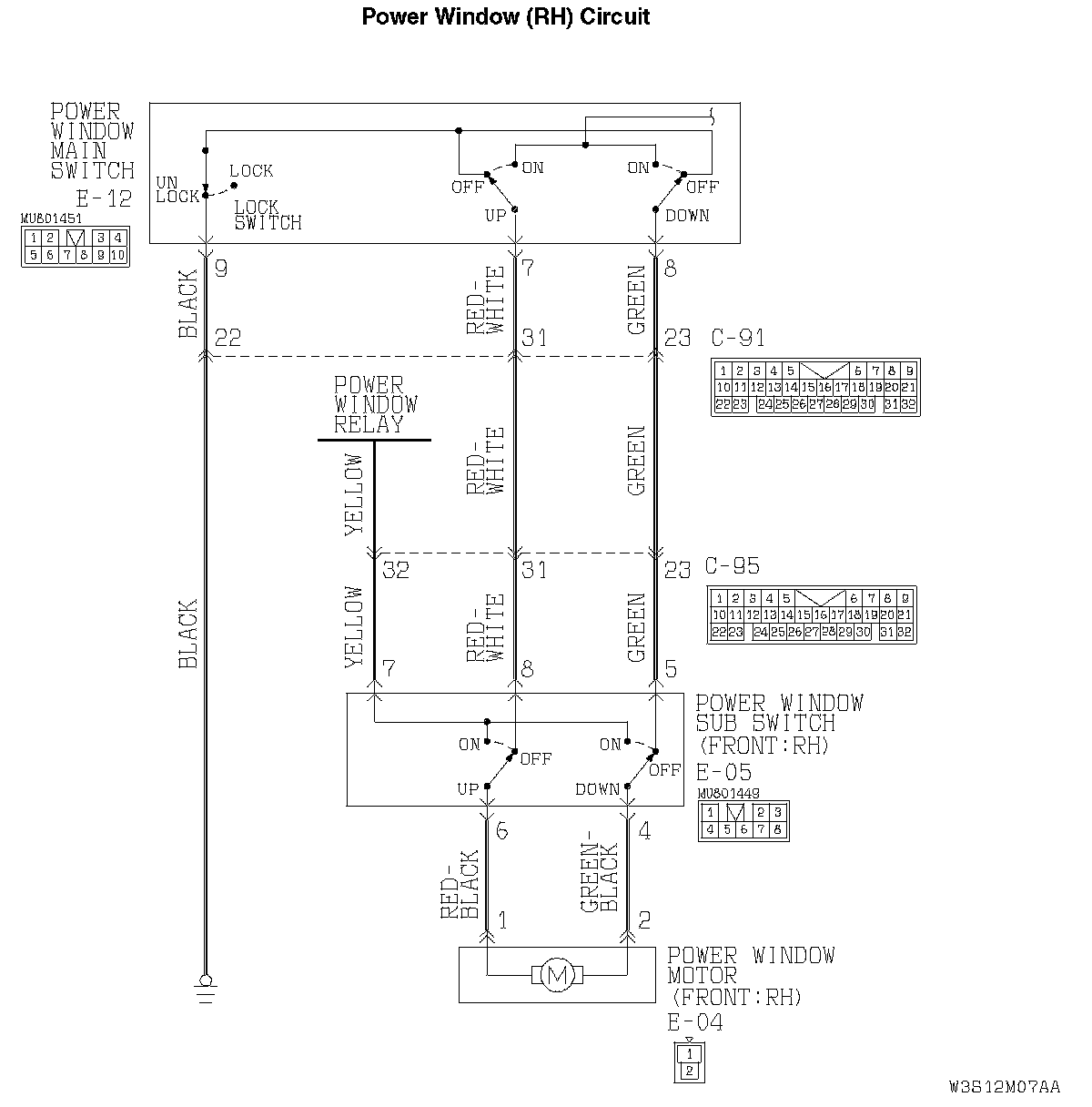

Power Window (RH) Circuit:

CIRCUIT OPERATION
When you operate each power window switch for front passenger's (incorporated in the power window main switch), the corresponding power window motor operates, thus causing each power window to close or open.

TECHNICAL DESCRIPTION (COMMENT)
If the corresponding power window (RH) opens and closes normally when power window sub-switch is operated, the power window main switch may be defective.

TROUBLESHOOTING HINT
- Malfunction of power window main switch

DIAGNOSIS

Check that power window sub-switches operate normally.

Q: Does the power window sub-switch operate the power window (RH)?

YES: Replace the power window main switch. When the power window main switch is operated, the power window (RH) should open or close normally.

NO: Refer to Symptom Chart before resolving this trouble.
