Cabin Air Filter / Purifier: Service and Repair
AIR PURIFIER FILTER (REPLACE)
1.
Remove the glove box inner and outer.
2.

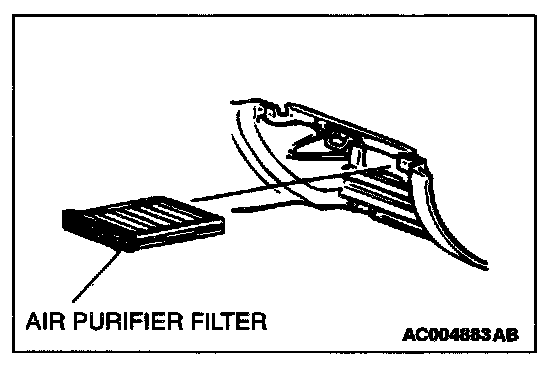

Pull the air purifier filter cut of the blower assembly.
3.
Insert a new air purifier into the glove box inner and outer.
