Eclipse Spyder

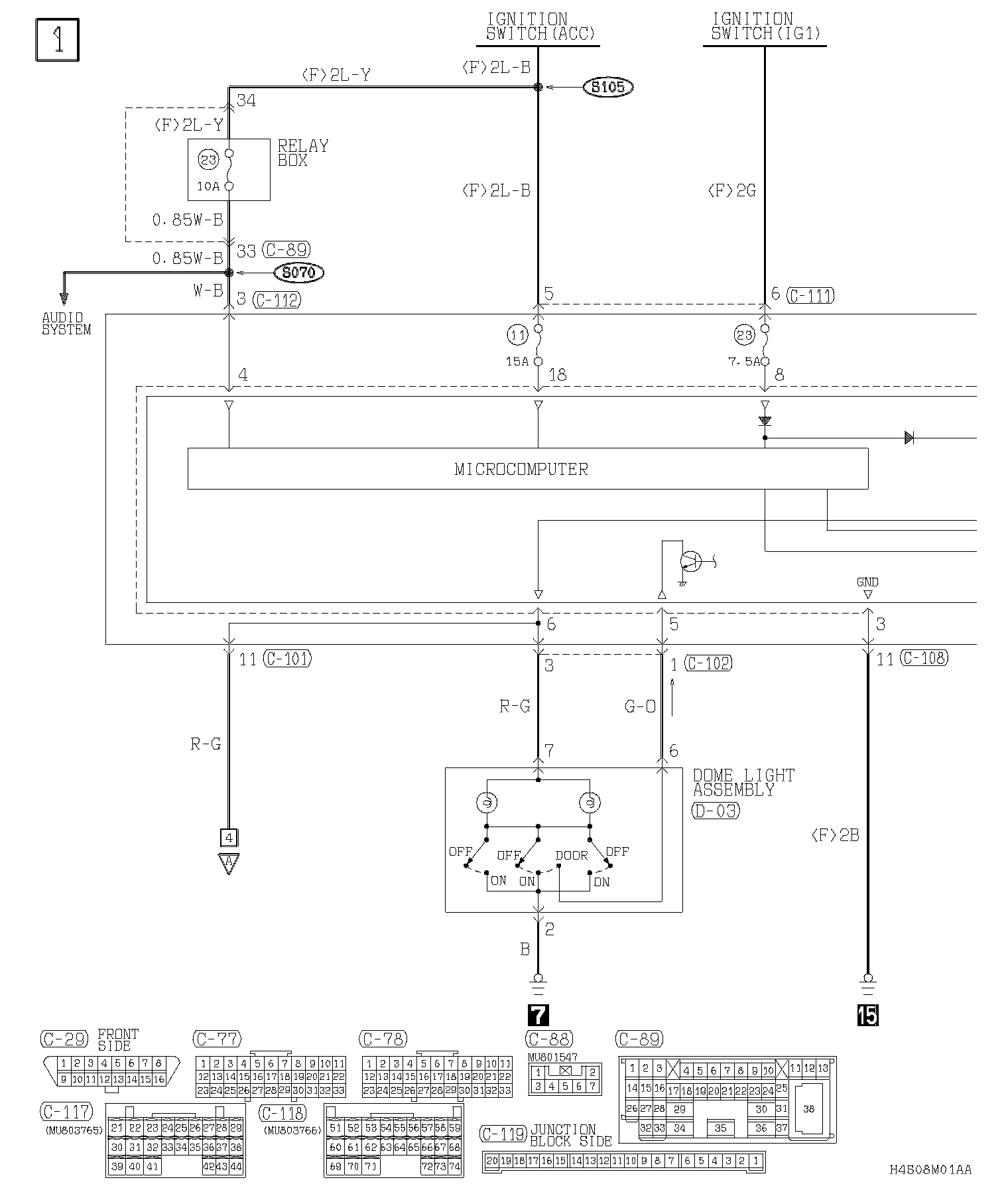

Dome Light And Trunk Light (Eclipse Spyder) Part 1:

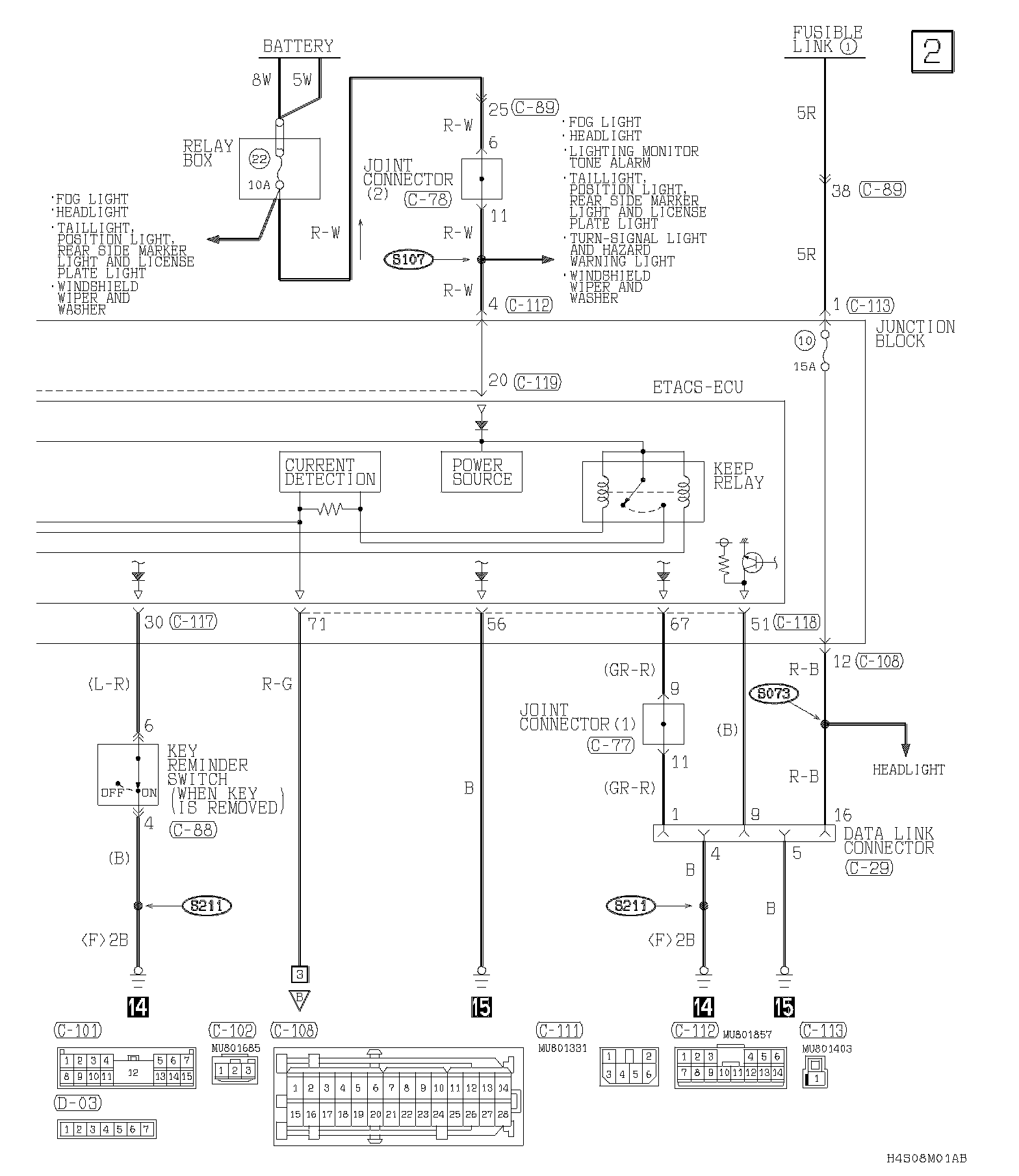

Dome Light And Trunk Light (Eclipse Spyder) Part 2:

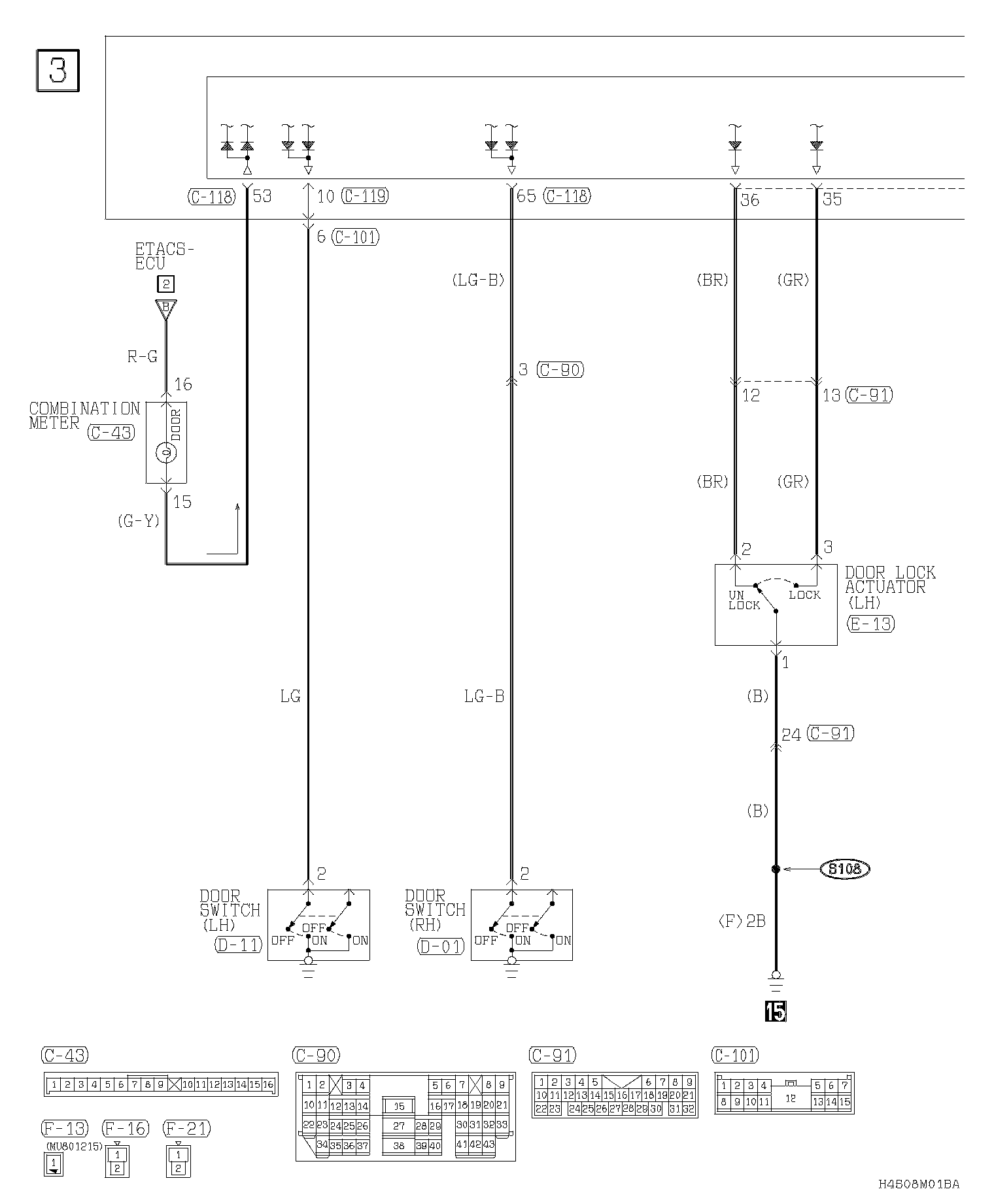

Dome Light And Trunk Light (Eclipse Spyder) Part 3:

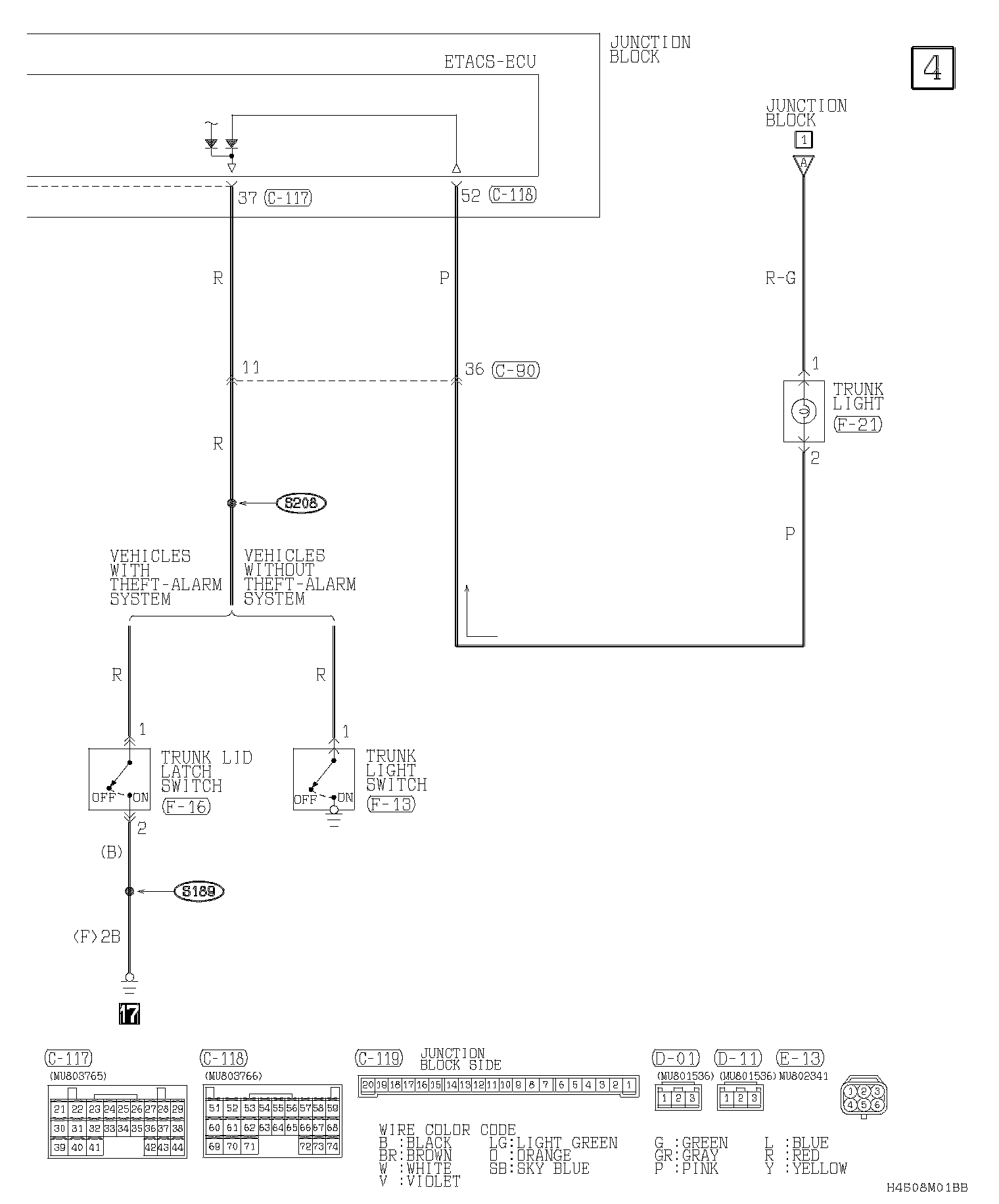

Dome Light And Trunk Light (Eclipse Spyder) Part 4:

Dome Light And Trunk Light (Eclipse Spyder) Part 5:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
