Inspection Procedure 5

The Ambient Temperature and Compass Screen do not Change.

Vehicle Speed Sensor Circuit Part 1:




Vehicle Speed Sensor Circuit Part 2:






CIRCUIT OPERATION
Vehicle speed sensor signal is sent to multi-center display.

TECHNICAL DESCRIPTION (COMMENT)
Ambient temperature and compass display on multi-center display won't be updated until vehicle speed gets 6.2 mph (10 km/h) or more.

TROUBLESHOOTING HINTS
- Malfunction of the vehicles speed sensor
- Malfunction of the multi-center display
- Damaged wiring harness and connectors

DIAGNOSIS

STEP 1. Check the speedometer

Q: Is the speedometer in good condition?

YES: Go to Step 2.

NO: Refer to Combination Meter - Troubleshooting Troubleshooting Strategy.

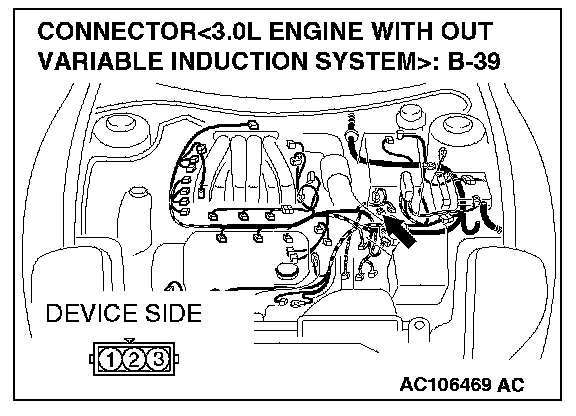

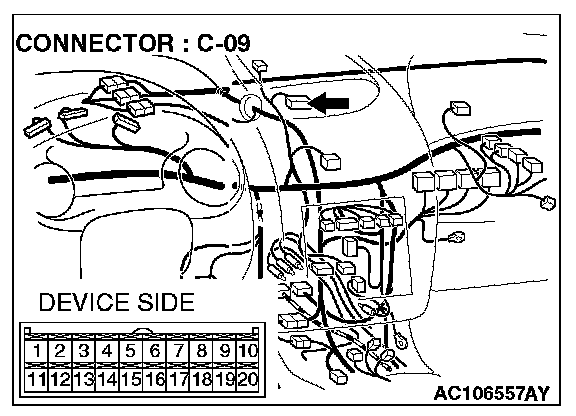

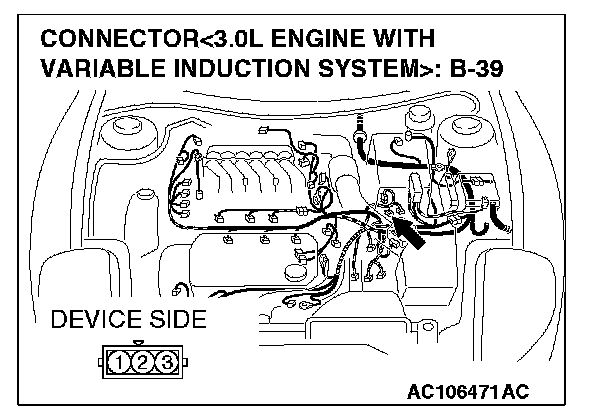

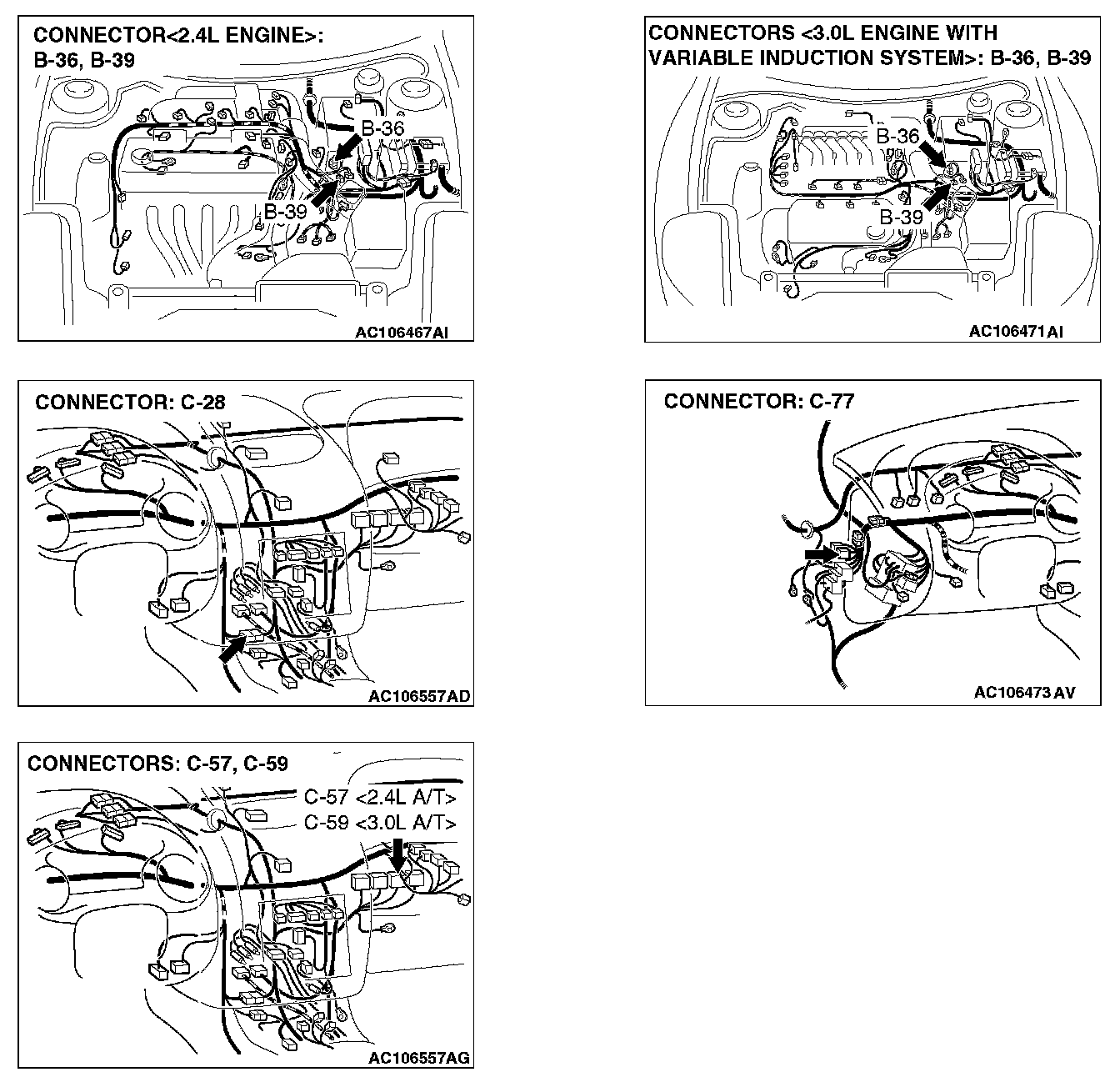

STEP 2. Check the connector between multi-center display connector C-09 and vehicles speed sensor connector B-39 or PCM connector C-57 <2.4L-A/T>, C-59 <3.0L-A/T> for damage.

Q: Are multi-center display connector C-09 and vehicles speed sensor connector B-39 or PCM connector C-57 <2.4L-A/T>, C-59 <3.0L-A/T> in good condition?

YES: Go to Step 3.

NO: Repair or replace the connector. Refer to Harness Connector Inspection.
















STEP 3. Check the wiring harness between multi-center display connector C-09 and vehicles speed sensor connector B-39 or PCM connector C-57 <2.4L-A/T>, C-59 <3.0L-A/T>.

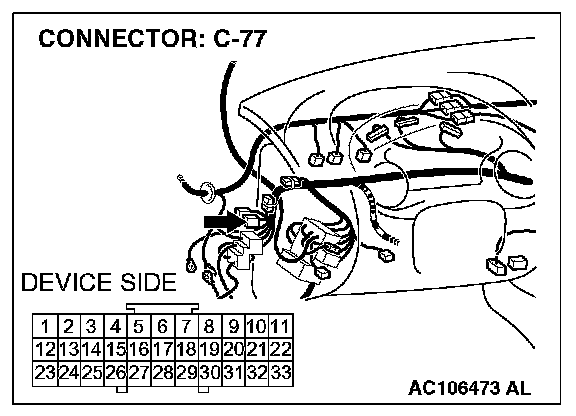

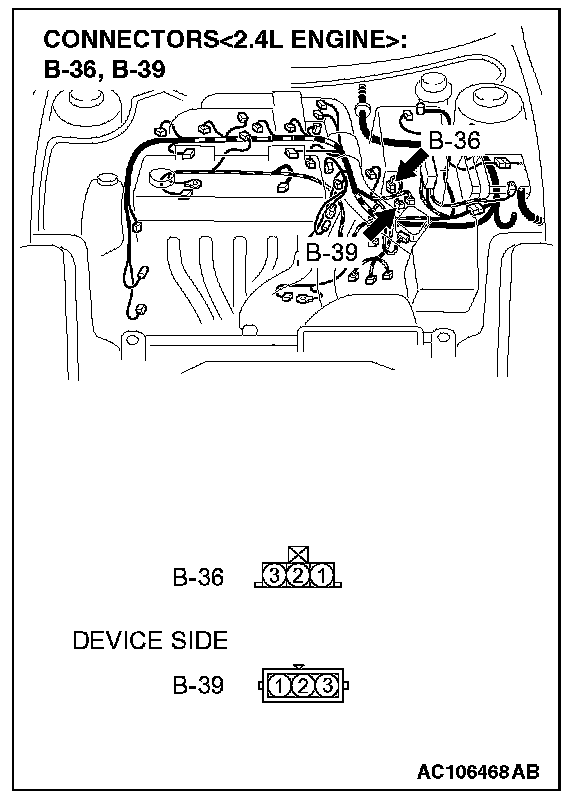

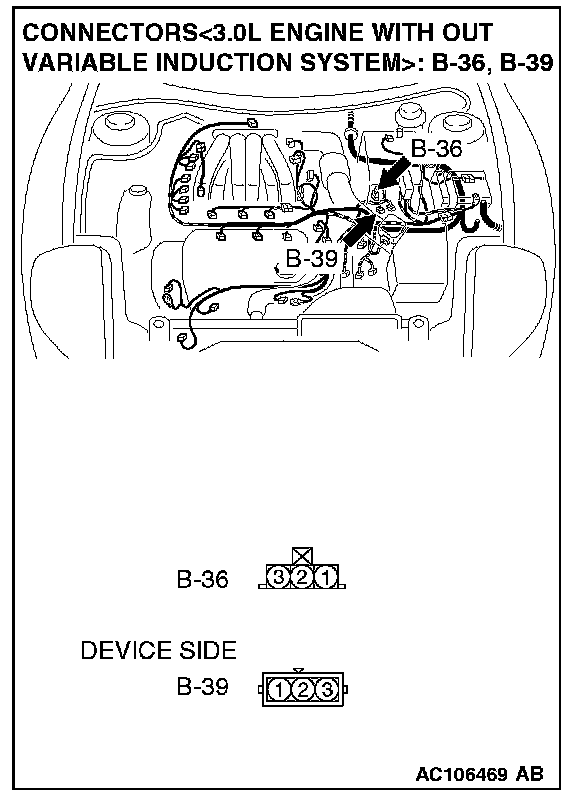

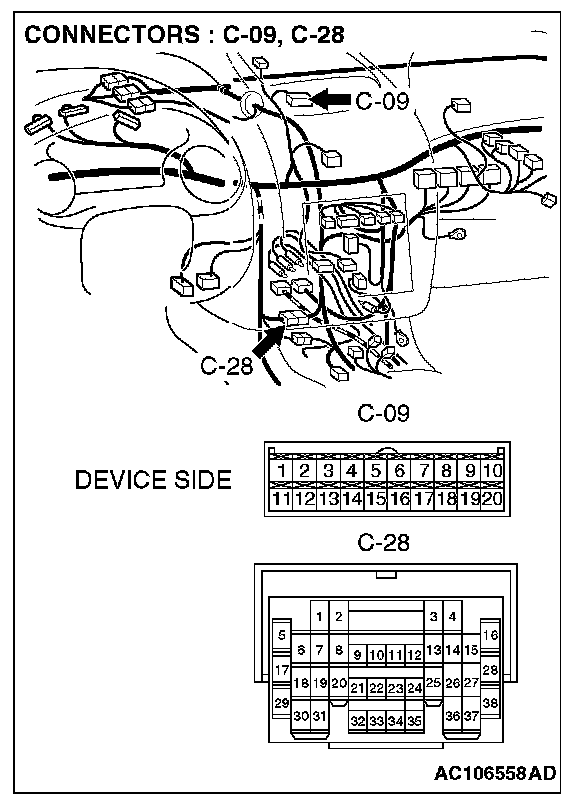

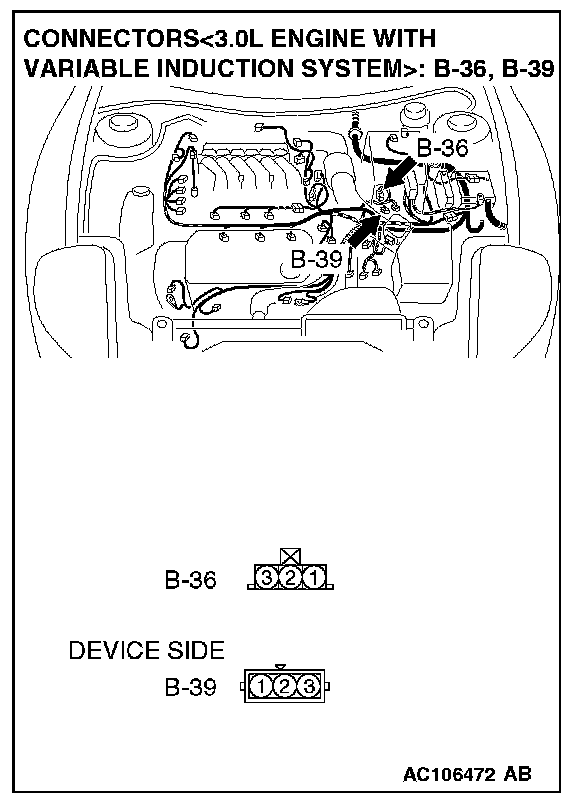

NOTE: After checking intermediate connector B-36 and C-28, joint connector C-77, check the wires. If intermediate connector B-36 and C-28, joint connector C-77 are damaged, repair or replace the wiring harness. Refer to Harness Connector Inspection.

Q: Is the wiring harness between multi-center display connector C-09 and vehicles speed sensor connector B-39 or PCM connector C-57 <2.4L-A/T>, C-59 <3.0L-A/T> in good condition?

YES: Replace the multi-center display.

NO: Repair the wiring harness. Refer to Harness Connector Inspection.
