Inspection Procedure 9

Warm Air Does Not Go Out From The Air Outlets

STEP 1. Check the water shut motor

CAUTION: When the motor stops, disconnect battery cable.

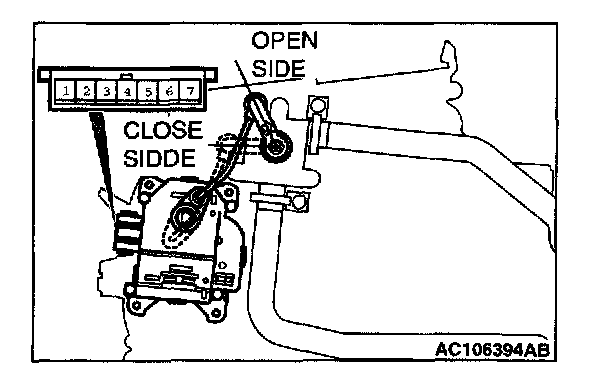

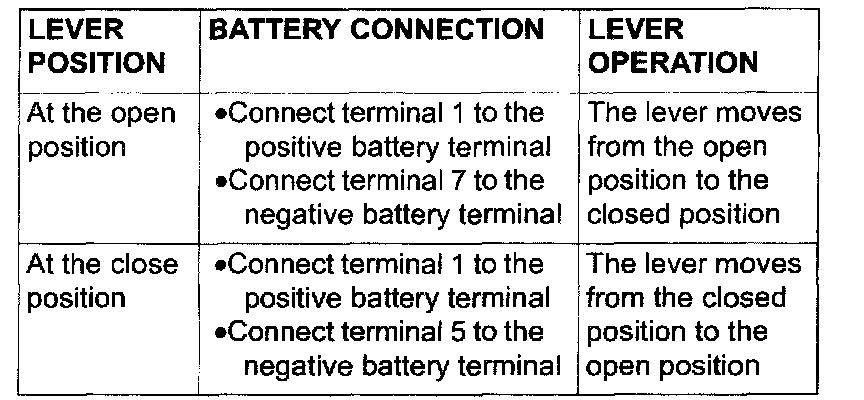

Follow the table to check the water shut motor for correct operation.

Q: Does water shut motor work normally?

YES: Go to Step 2.

NO: Replace. Then go to Step 3.

STEP 2. Check the water shut valve controller continuity.

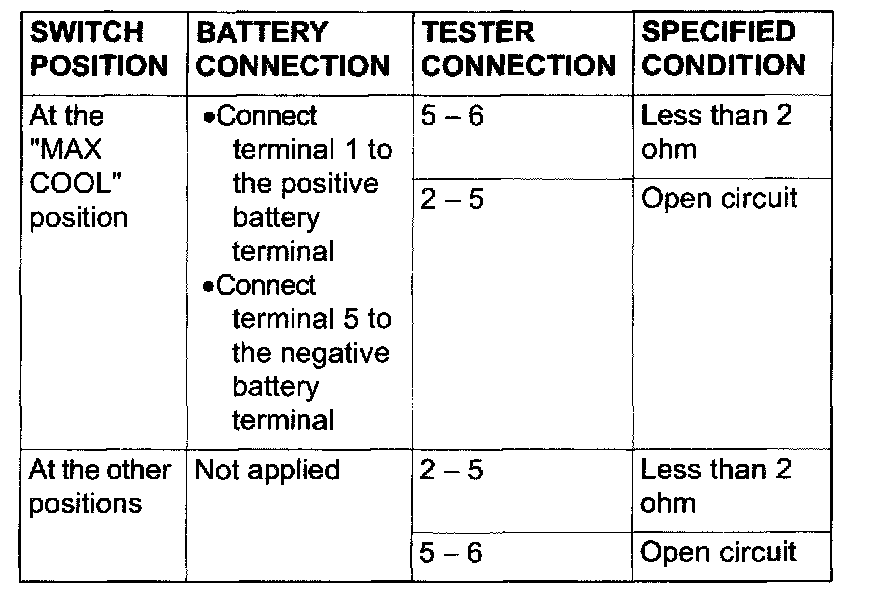

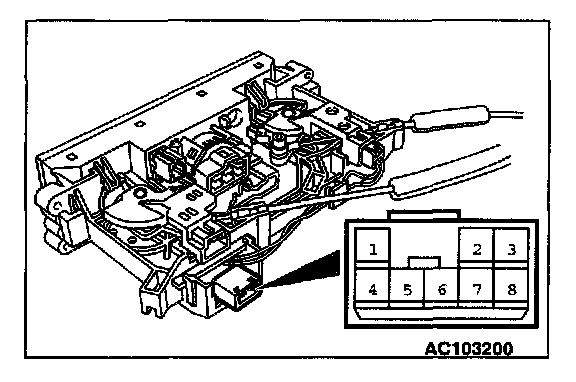

Follow the table to check the water shut valve controller for continuity.

Q: Is the water shut valve controller in good condition?

YES: Go to Step 3.

NO: Replace. Then go to Step 3.

STEP 3. Check symptoms.

Q: Is the cool air discharged?

YES: This diagnosis is complete. (If no malfunctions are not found in all steps, an intermittent malfunction is suspected. Refer to Introduction, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction.)

NO: Go to Step 1.
