Eclipse Spyder

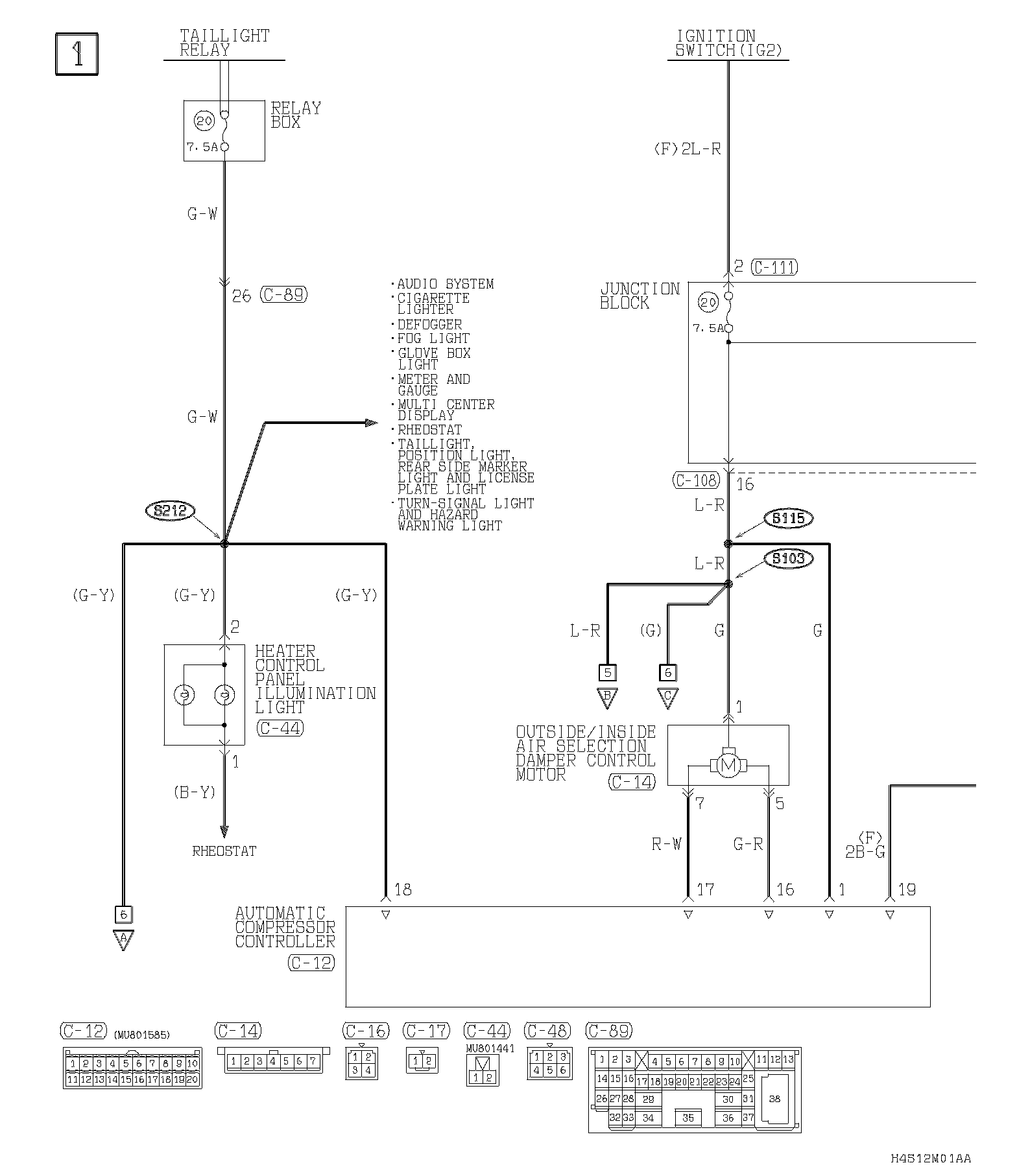

Air Conditioning System (Eclipse Spyder) Part 1:

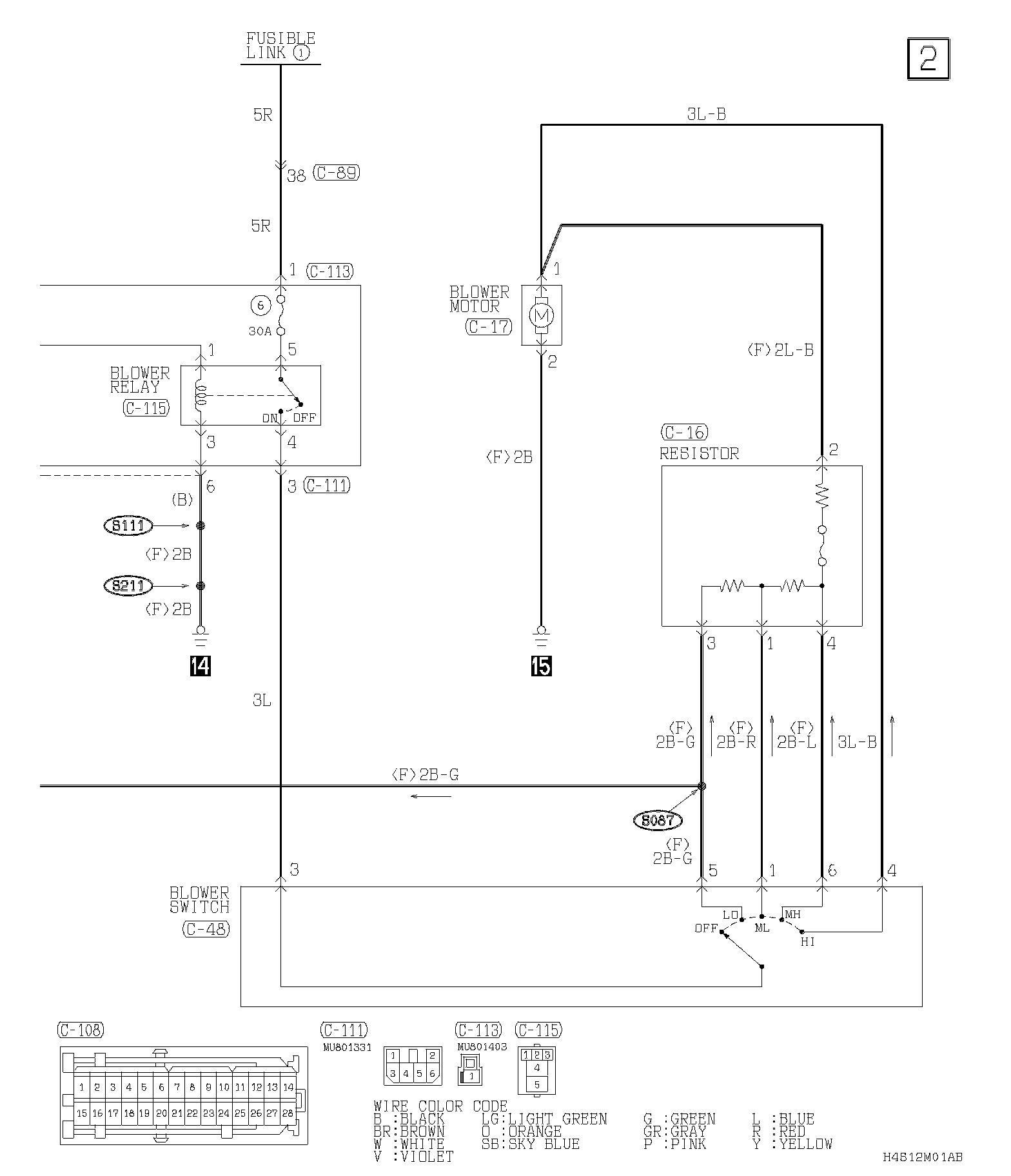

Air Conditioning System (Eclipse Spyder) Part 2:

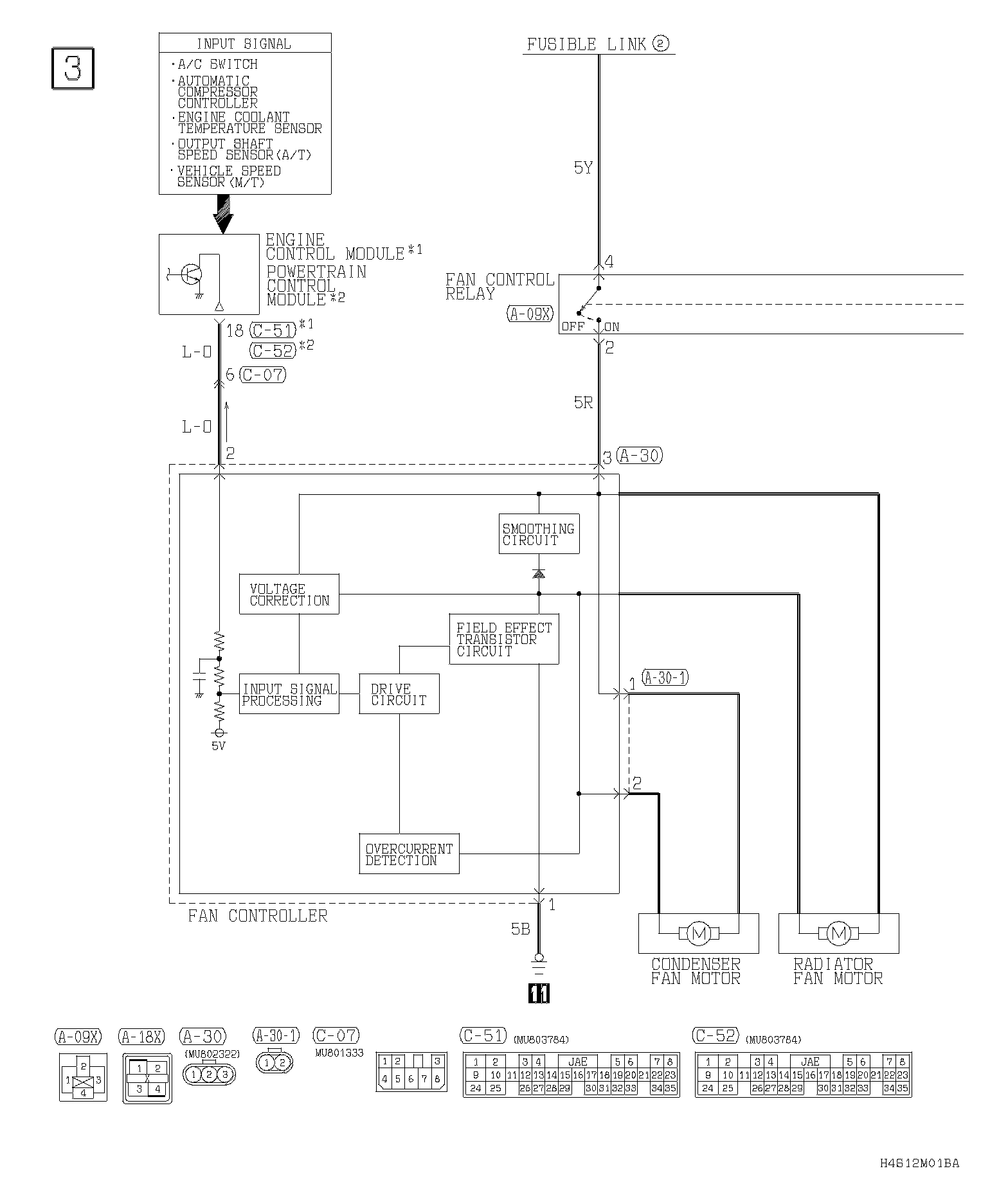

Air Conditioning System (Eclipse Spyder) Part 3:

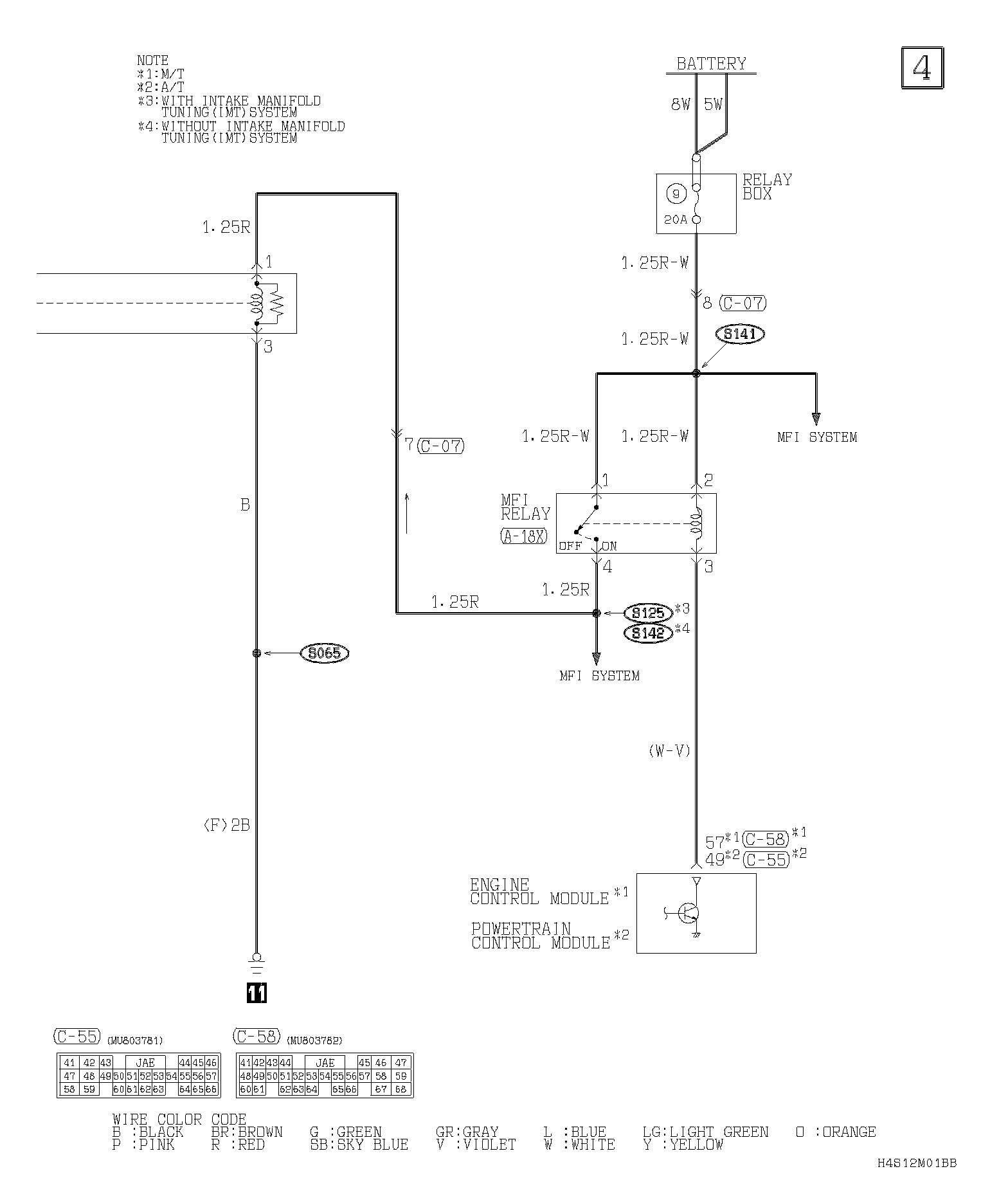

Air Conditioning System (Eclipse Spyder) Part 4:

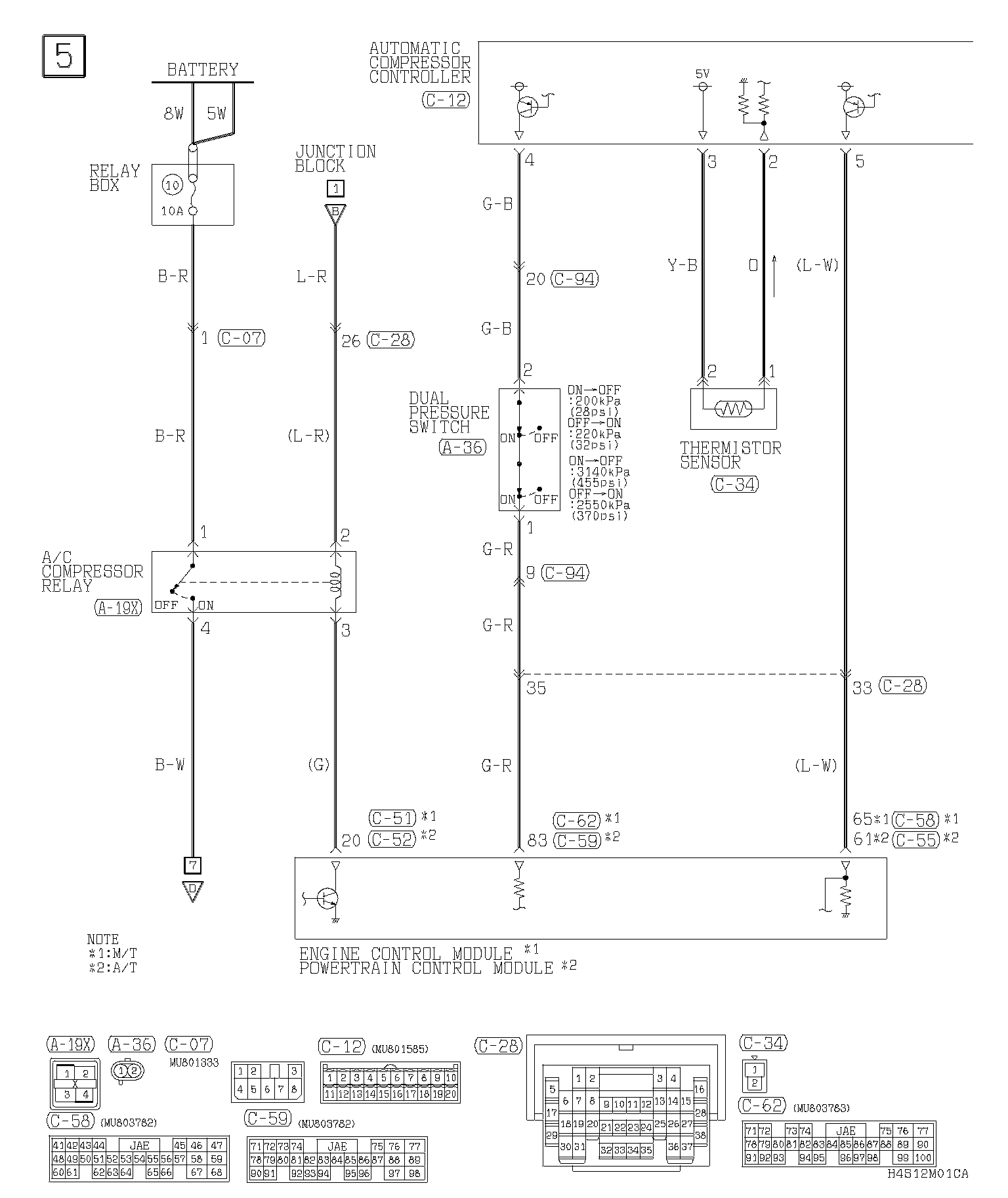

Air Conditioning System (Eclipse Spyder) Part 5:

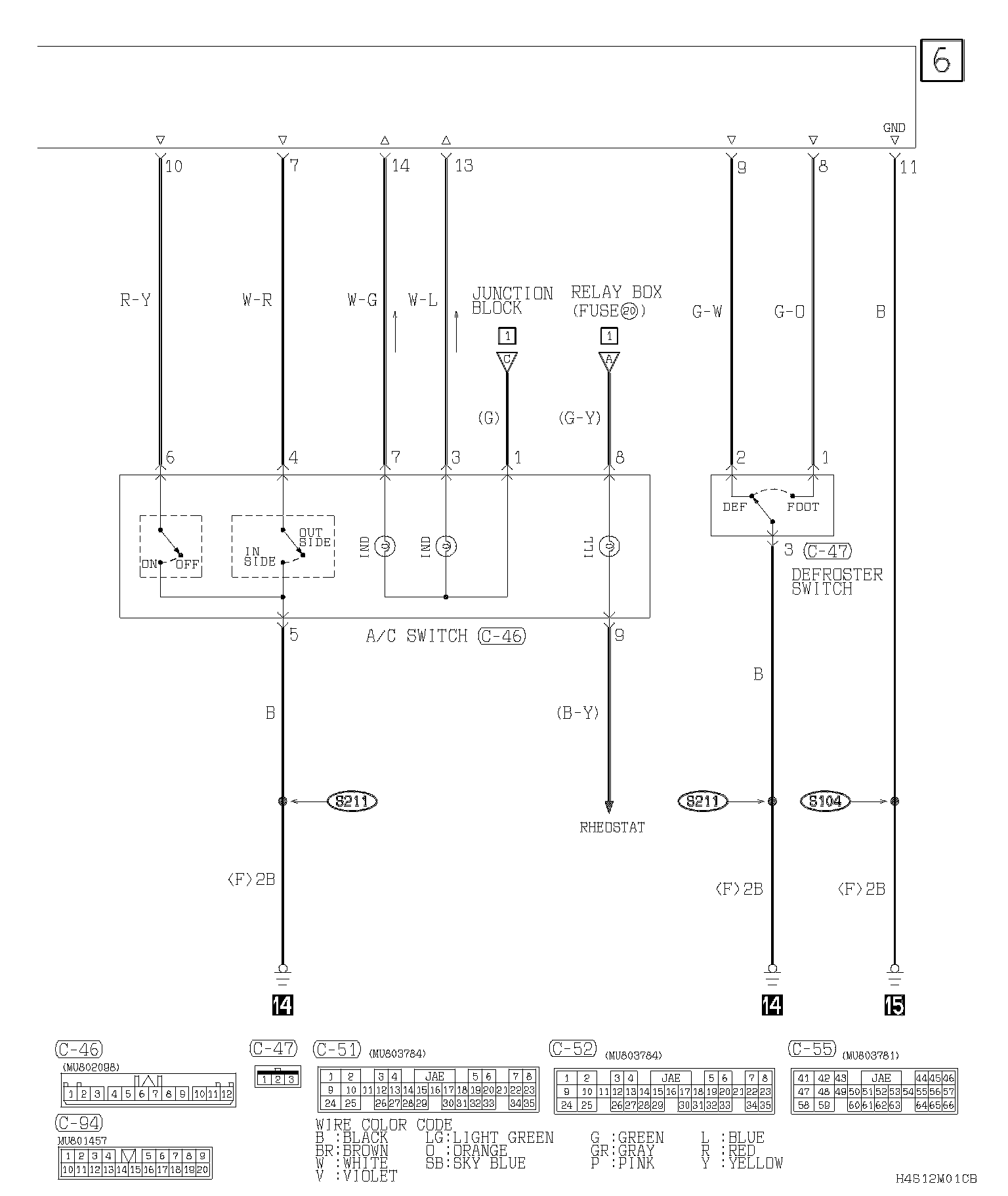

Air Conditioning System (Eclipse Spyder) Part 6:

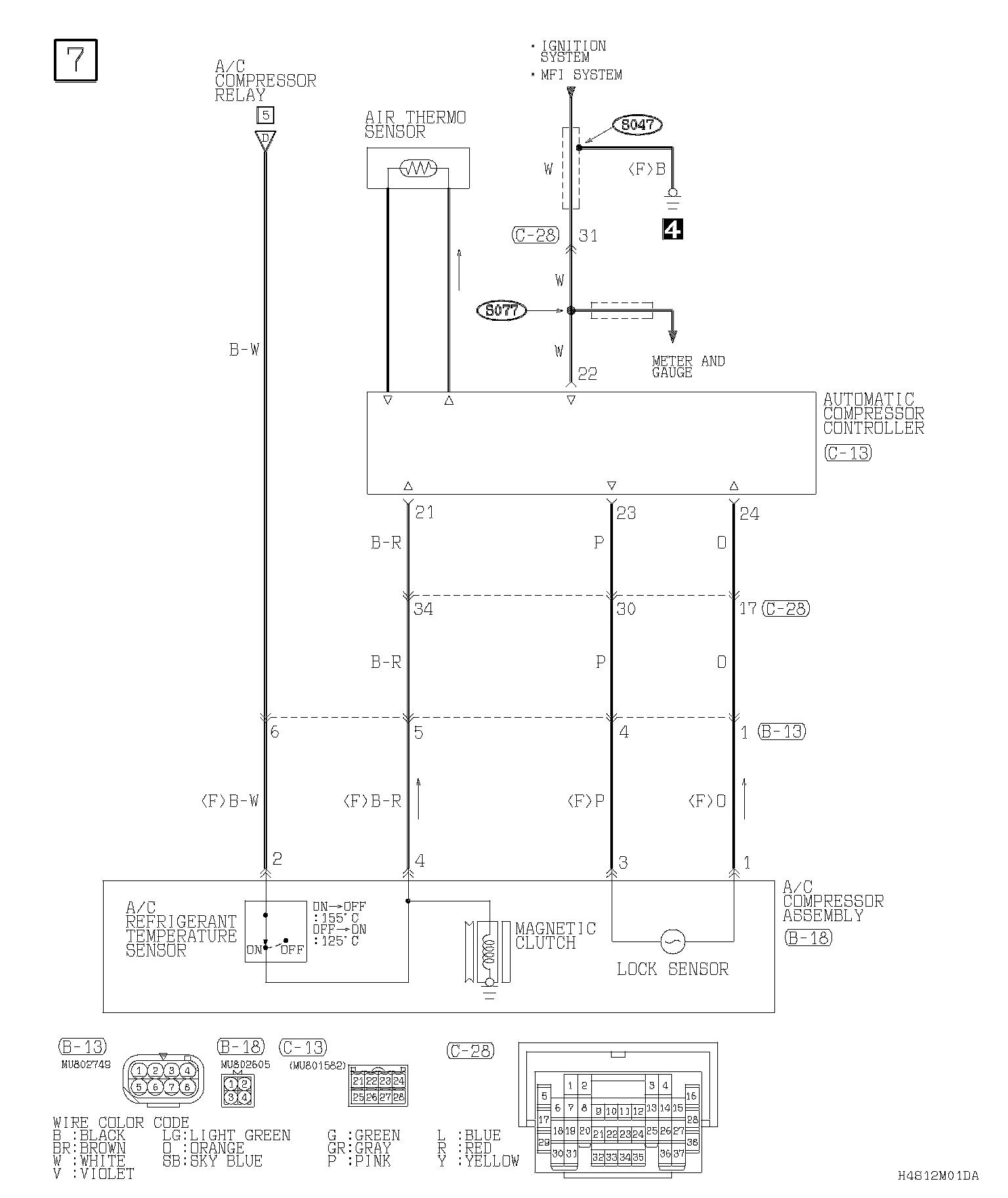

Air Conditioning System (Eclipse Spyder) Part 7:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
