Exhaust Pipe: Service and Repair

REMOVAL AND INSTALLATION

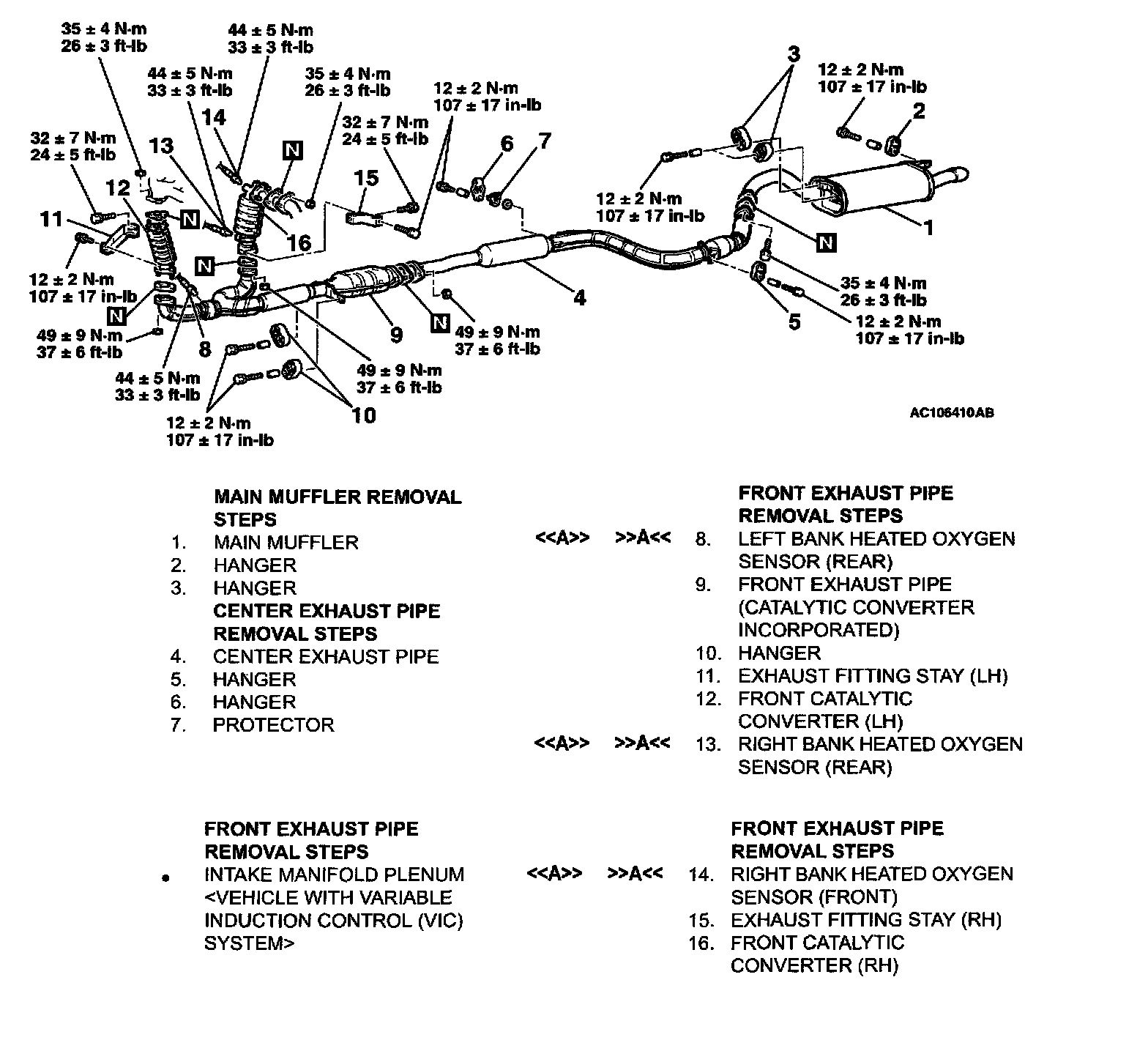

Exhaust Pipe, Main Muffler And Catalytic Converter:

REMOVAL SERVICE POINT

[[A]] LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL




Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

]]A[[ RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION




Use special tool MD998770 to install the oxygen sensor.
