Water Pump: Service and Repair

WATER PUMP

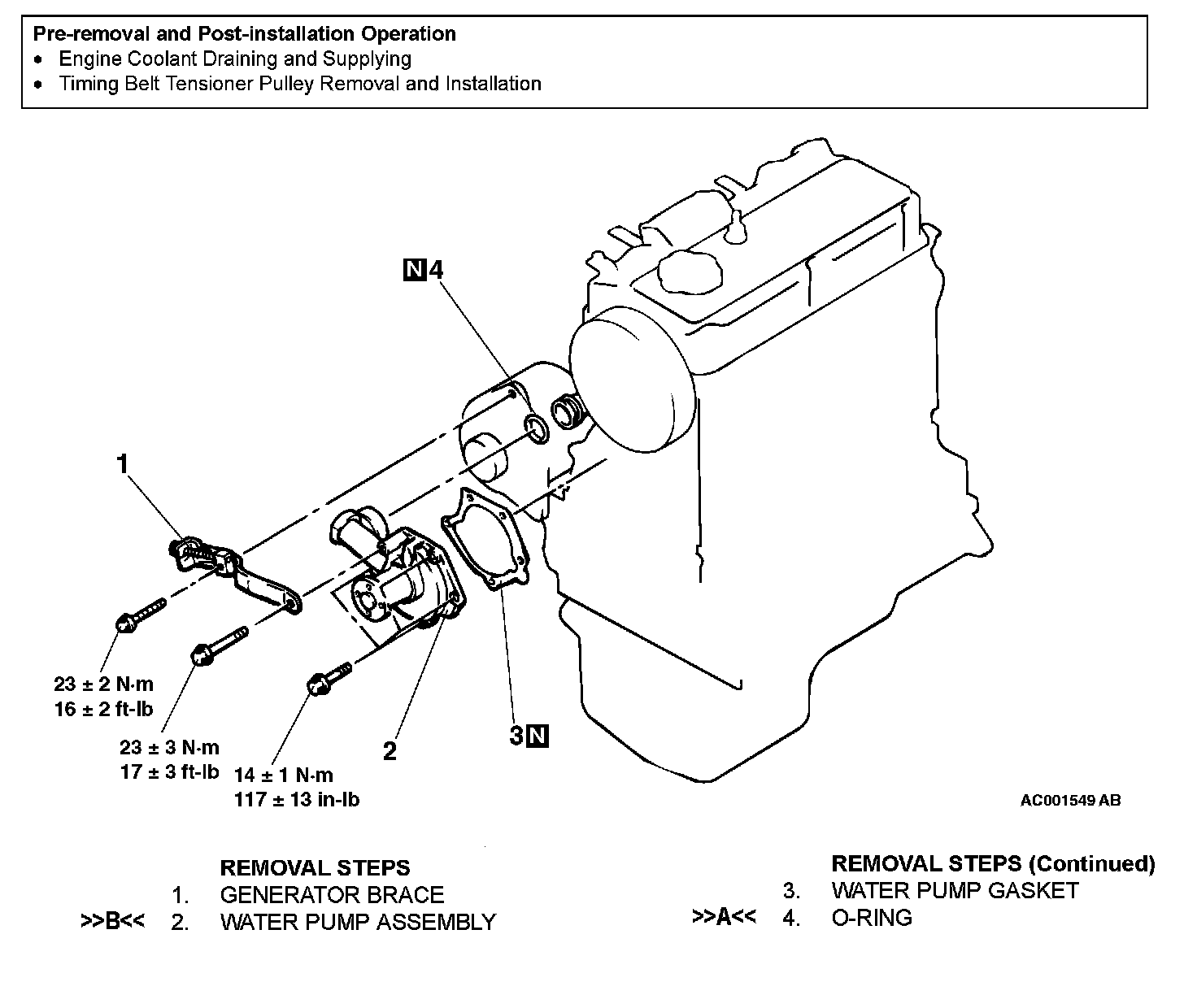

REMOVAL AND INSTALLATION

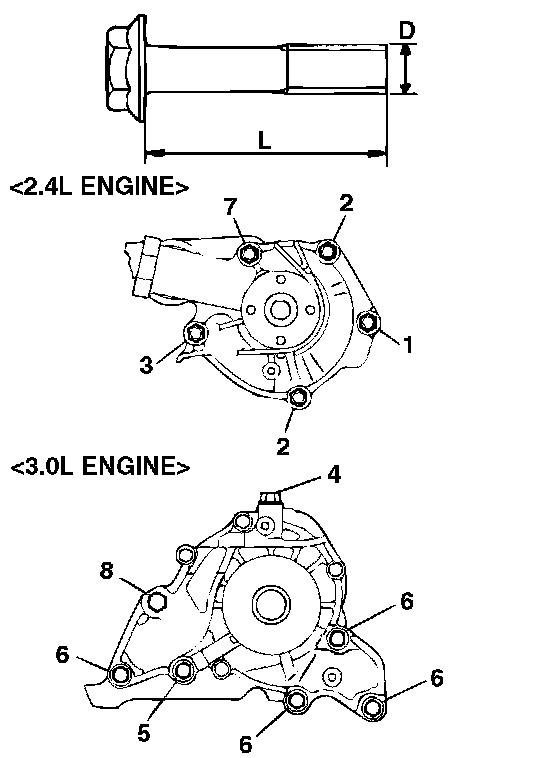

[2.4L ENGINE]





[3.0L ENGINE]

INSTALLATION SERVICE POINTS

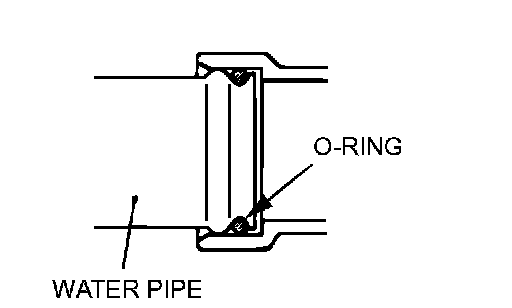

]]A[[ O-RING INSTALLATION

CAUTION:
^ Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
^ When inserting the pipe, check to be sure that there is no sand, dirt, etc. on its inner surface.





Rinse the mounting location of O-ring and water pipe with water, and install the O-ring and water pipe.








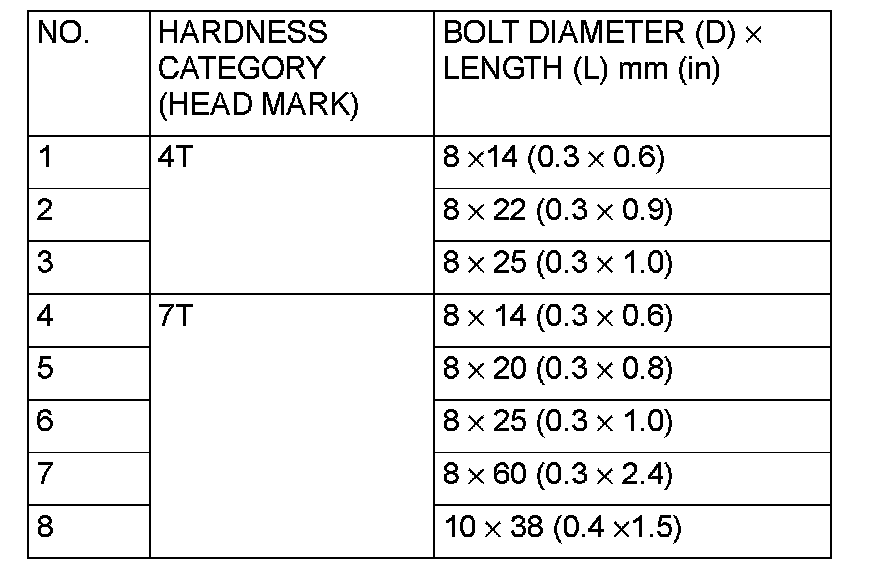

]]B[[ WATER PUMP ASSEMBLY INSTALLATION
