Water Pump & Water Hose

WATER PUMP & WATER HOSE
REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS
]]A[[ O-RING AND WATER INLET PIPE INSTALLATION

CAUTION: Keep the O-ring free of oil or grease.

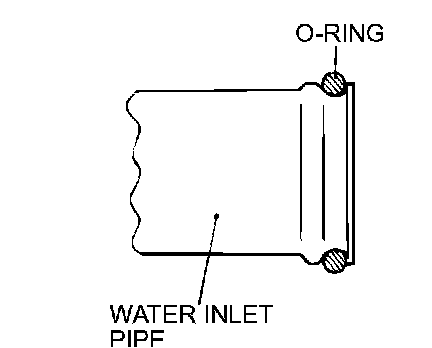

1. Attach a new O-ring to each end of the water inlet pipe.
2. Wet the O-ring with water.
3. Insert the front end of the pipe into the water pump.

]]B[[ THERMOSTAT INSTALLATION





1. Check that the rubber ring is free from damage and seated correctly in the thermostat flange.

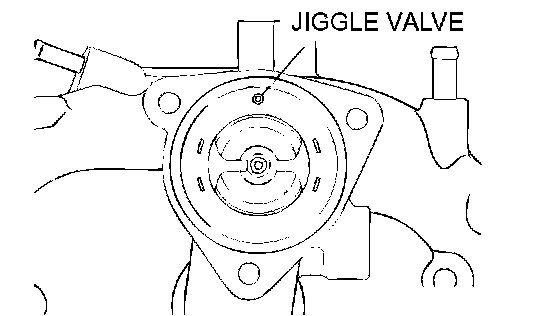

2. Install the thermostat as shown in the illustration. The jiggle valve must be at the uppermost position.

]]C[[ SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE SENSOR

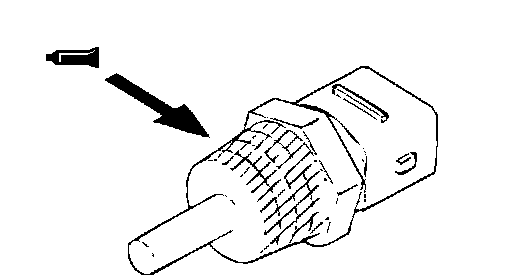

Apply 3M(R) AAD Part number 8731 or equivalent to the engine coolant temperature sensor.

]]D[[ SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE GAUGE UNIT

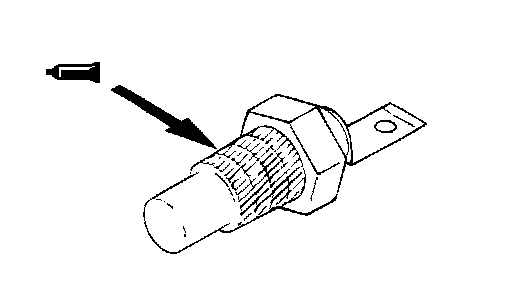

Apply 3M(R) AAD Part number 8672 or equivalent to the engine coolant temperature gauge unit.
