Intake Manifold Plenum and Throttle Body Assembly
INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLYREMOVAL AND INSTALLATION
[WITH INDUCTION CONTROL VALVE]
[WITHOUT INDUCTION CONTROL VALVE]
INSTALLATION SERVICE POINT
]]A[[ INTAKE MANIFOLD UPPER INSTALLATION
1. Clean the contacting surfaces of induction control system and intake manifold upper.

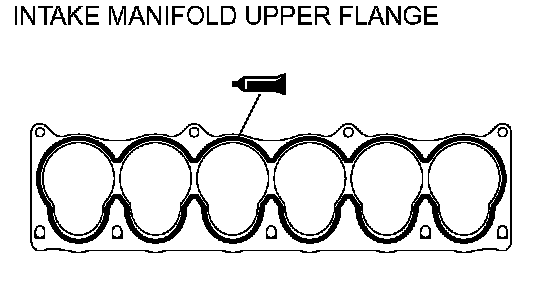

2. Apply Mitsubishi Genuine Parts number MD970389, 3MTM AAD Part number 8660 or equivalent to the intake manifold upper.
3. Install the intake manifold upper to the intake manifold upper.
NOTE: Be sure to install the intake manifold upper quickly while the sealant is wet (within 15 minutes).
4. Tighten the intake manifold upper mounting bolts to the specified torque.
Tightening torque: 9 ± 1 Nm (80 ± 9 inch lbs.)
NOTE: After installation, keep the sealed area away from oil and coolant for approximately one hour
]]B[[ THROTTLE BODY GASKET INSTALLATION

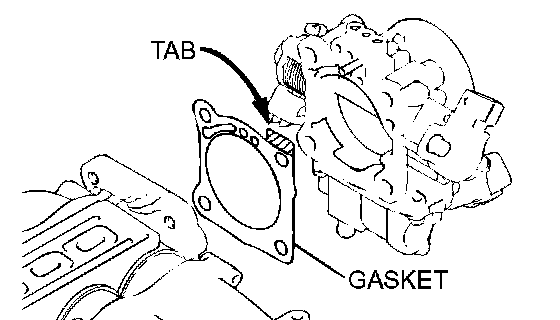

Install the gasket so that the tab is positioned as shown in the illustration.
