Ignition System

IGNITION SYSTEM
REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
]]A[[ DISTRIBUTOR INSTALLATION
1. Turn the crankshaft to bring the piston in No. 1 cylinder to the top dead center on the compression stroke.

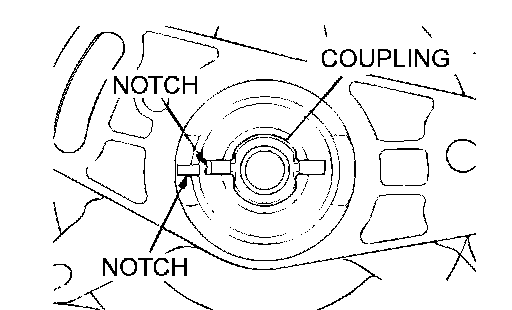

2. Rotate the distributor shaft coupling until its notch (mating mark) is lined up with the notch (mating mark) in the housing.

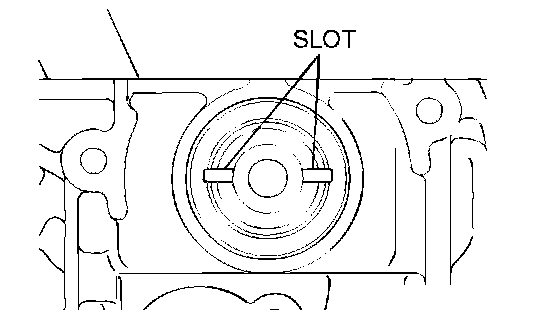

3. Fit the distributor coupling in the slot at the rear end of the camshaft to install the distributor.
