Generator and Ignition System

GENERATOR AND DRIVE BELT
REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] CRANKSHAFT BOLT LOOSENING

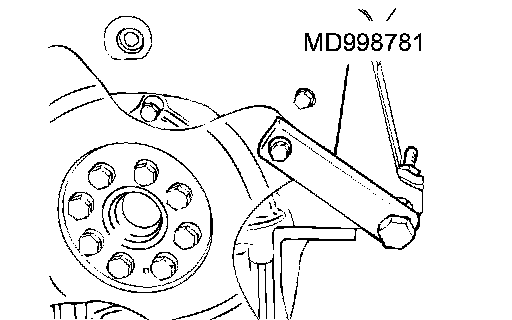

1. Install special tool MD998781 to hold the flywheel or drive plate.
2. Loosen and remove the crankshaft bolt and washer.

INSTALLATION SERVICE POINT
]]A[[ CRANKSHAFT BOLT TIGHTENING

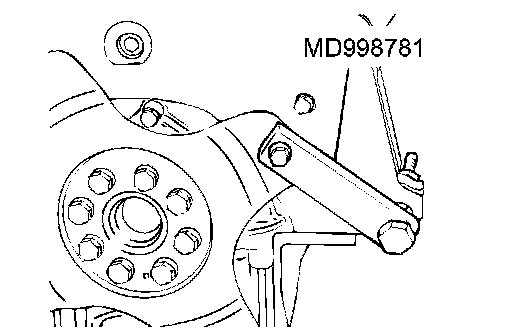

1. Install special tool MD998781 to hold the flywheel or drive plate.

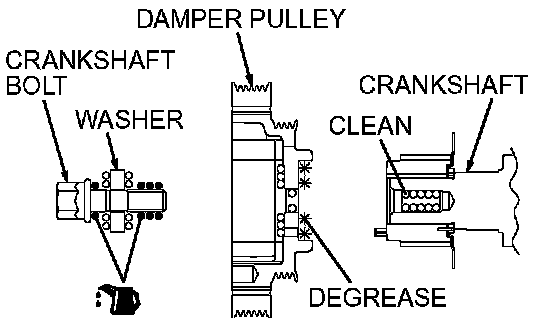

2. Clean the bolt hole in crankshaft bolt and damper pulley's seating surface.
3. Degrease the cleaned seating surface of the damper pulley.
4. Install the damper pulley.
5. Apply oil to the threads of crankshaft bolt and the outer surface of washer.
6. Tighten the crankshaft bolt to the specified torque.
Tightening torque: 185 ± 5 Nm (139 ± 4 ft. lbs.)
