Mitsubishi
>>
2004
>>
Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Wheel Hub
>>
Front Axle
Front Axle

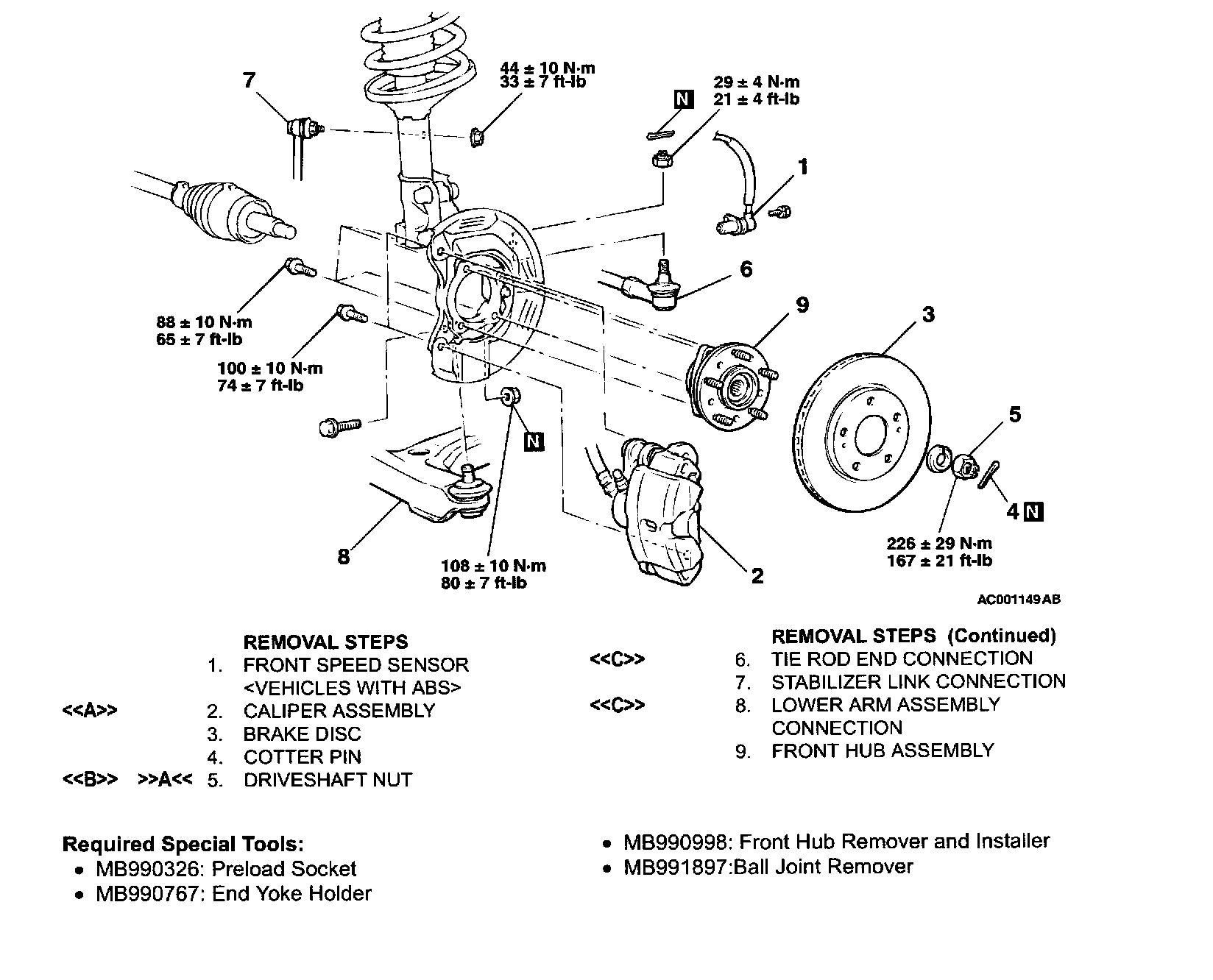

FRONT AXLE HUB ASSEMBLY REPLACEMENT W/ RELATE COMPONENTS
